Home
>>
GMC
>>
2003
>>
Jimmy (CANADA) V6-4.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Transfer Case
>>
NVG 236-NP8
>>
Transfer Case Encoder Motor and Shift Control Module
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

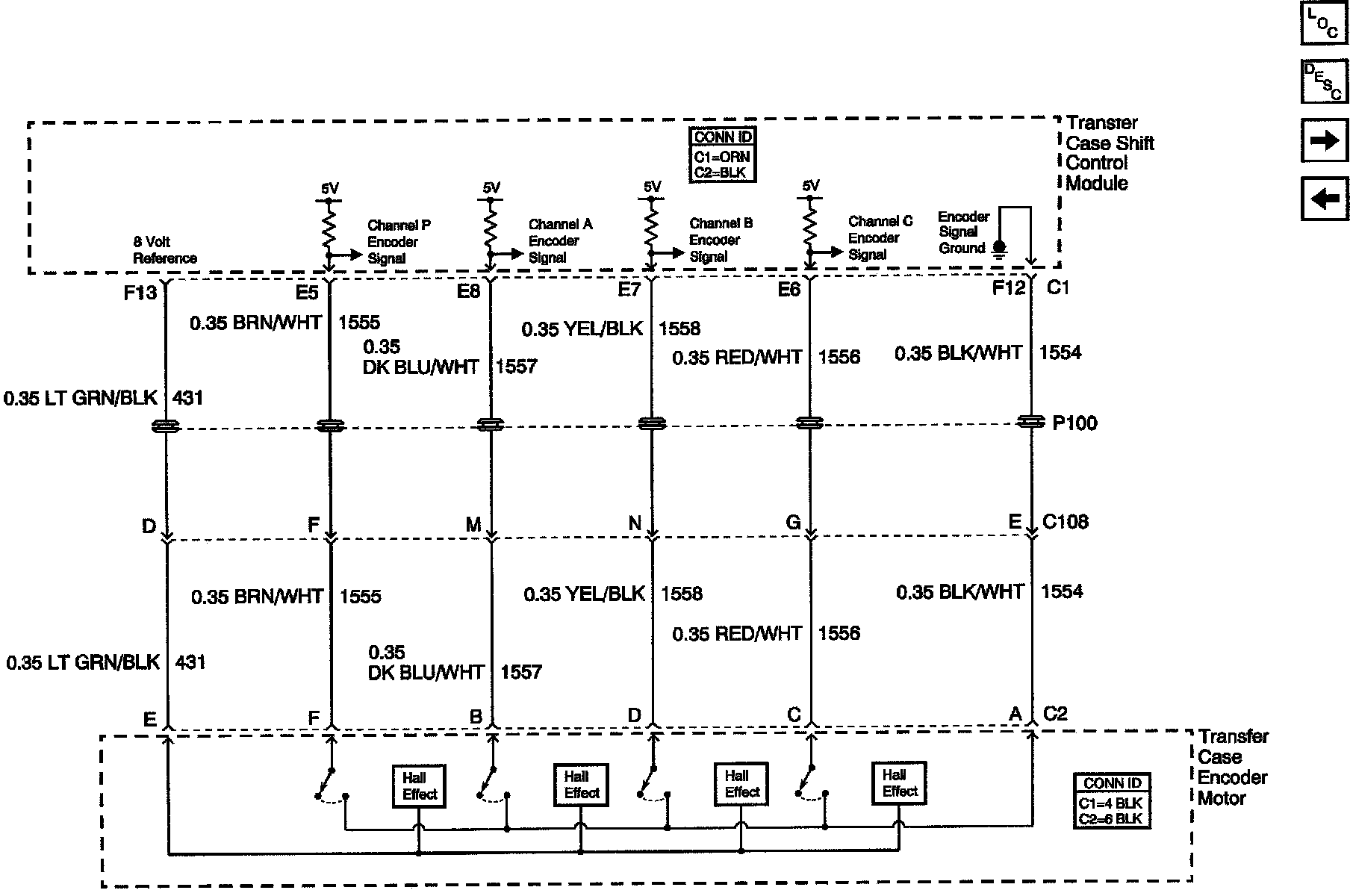

Transfer Case Encoder Motor and Shift Control Module
