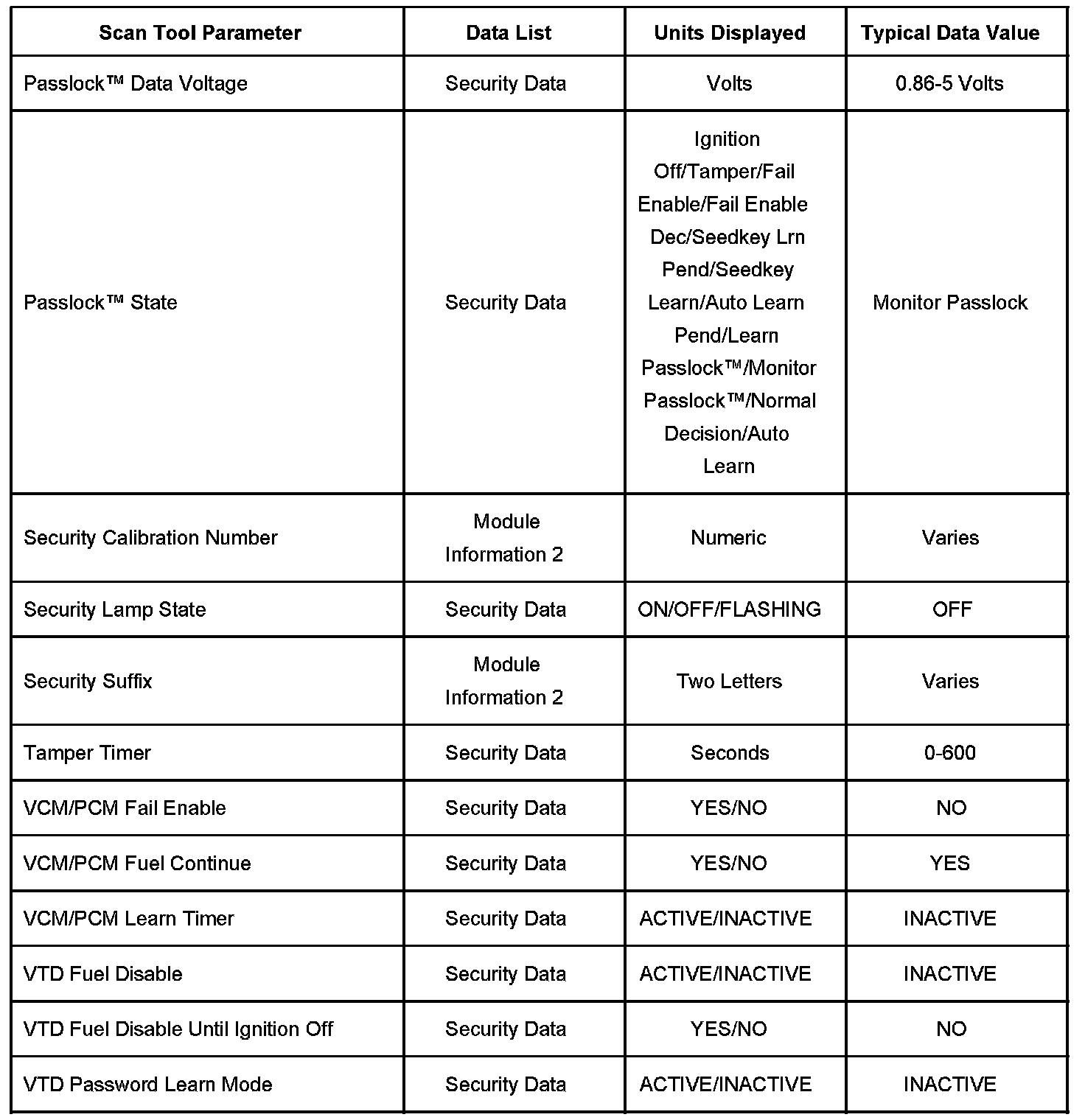

Scan Tool Data List - Antitheft System

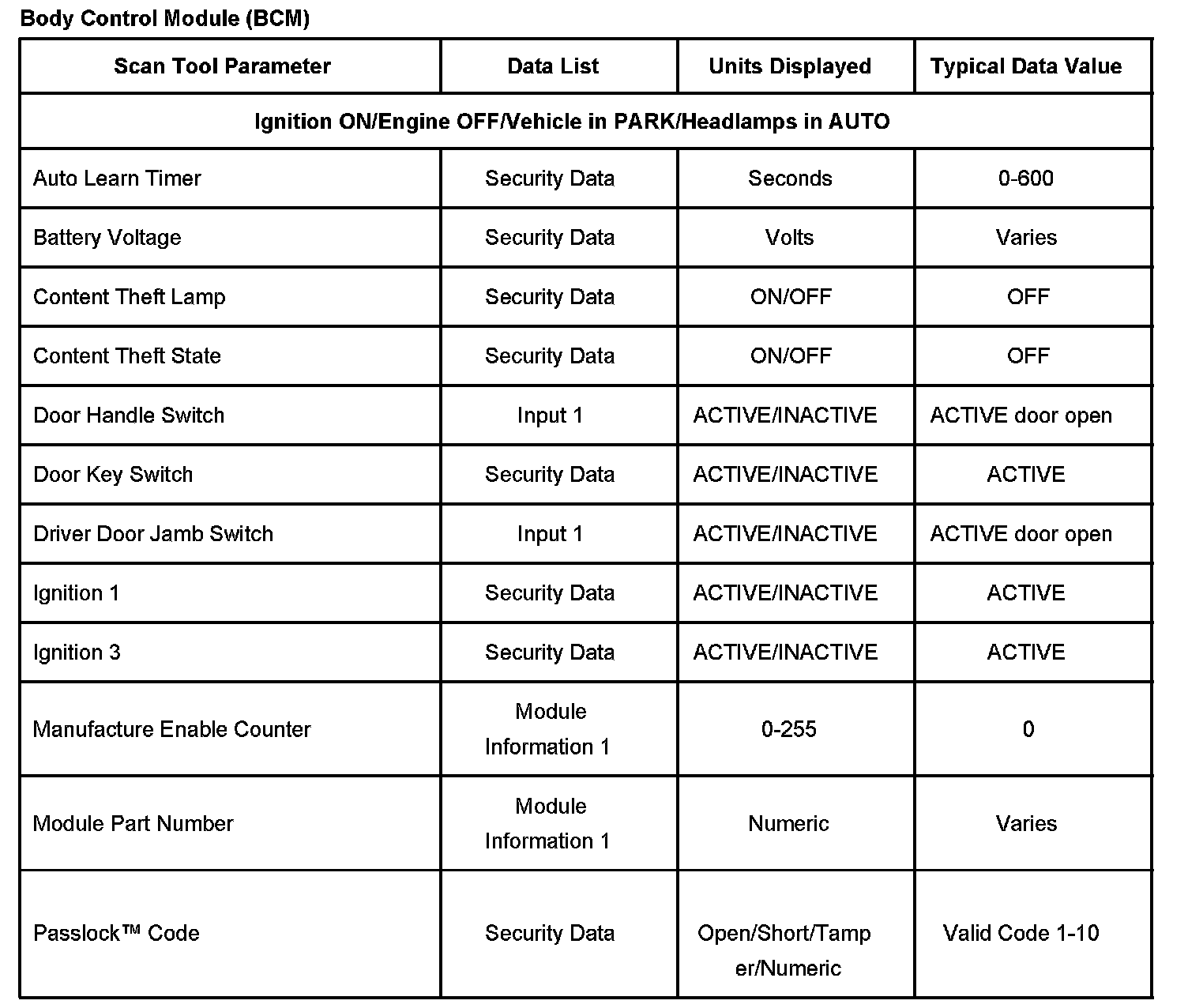

Body Control Module (BCM) Part 1:
Body Control Module (BCM) Part 2:
