Wiper Control Module: Service and Repair

WIPER MOTOR MODULE REPLACEMENT

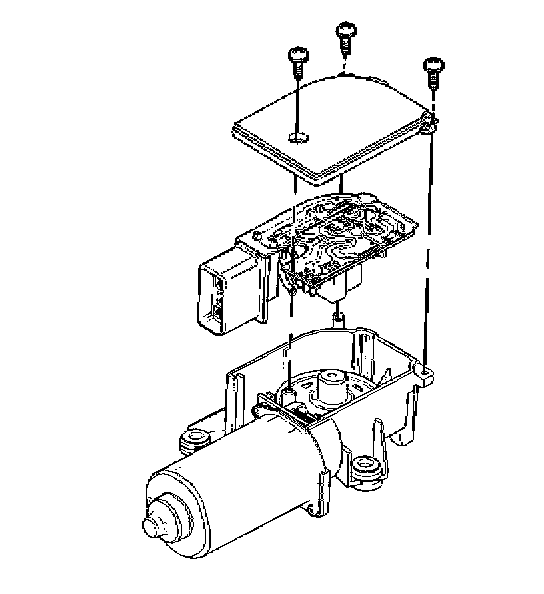

REMOVAL PROCEDURE




1. Remove the wiper motor electrical connector.
2. Remove the cover screws.
3. Remove the cover.
4. Remove the circuit board and terminal module by lifting up on the terminal.

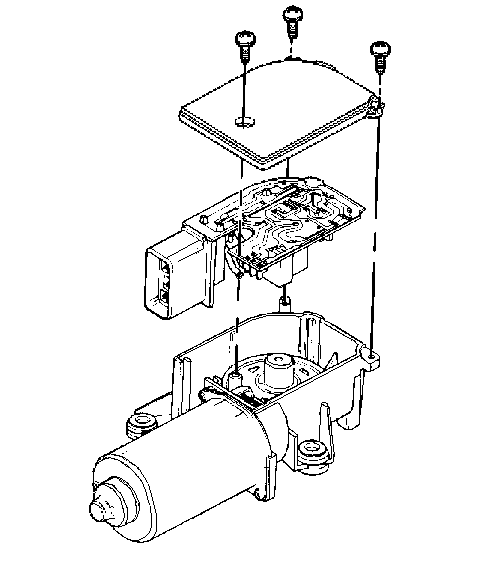

INSTALLATION PROCEDURE




1. Install the circuit board and terminal module.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the cover and three screws.

Tighten
Tighten the screws to 2.6 N.m (23 lb in).

3. Install the wiper motor electrical connector.
