Test Description

The number below refers to the step number on the diagnostic table.

  1. 6. Tests for the proper operation of the circuit in the normal voltage range.

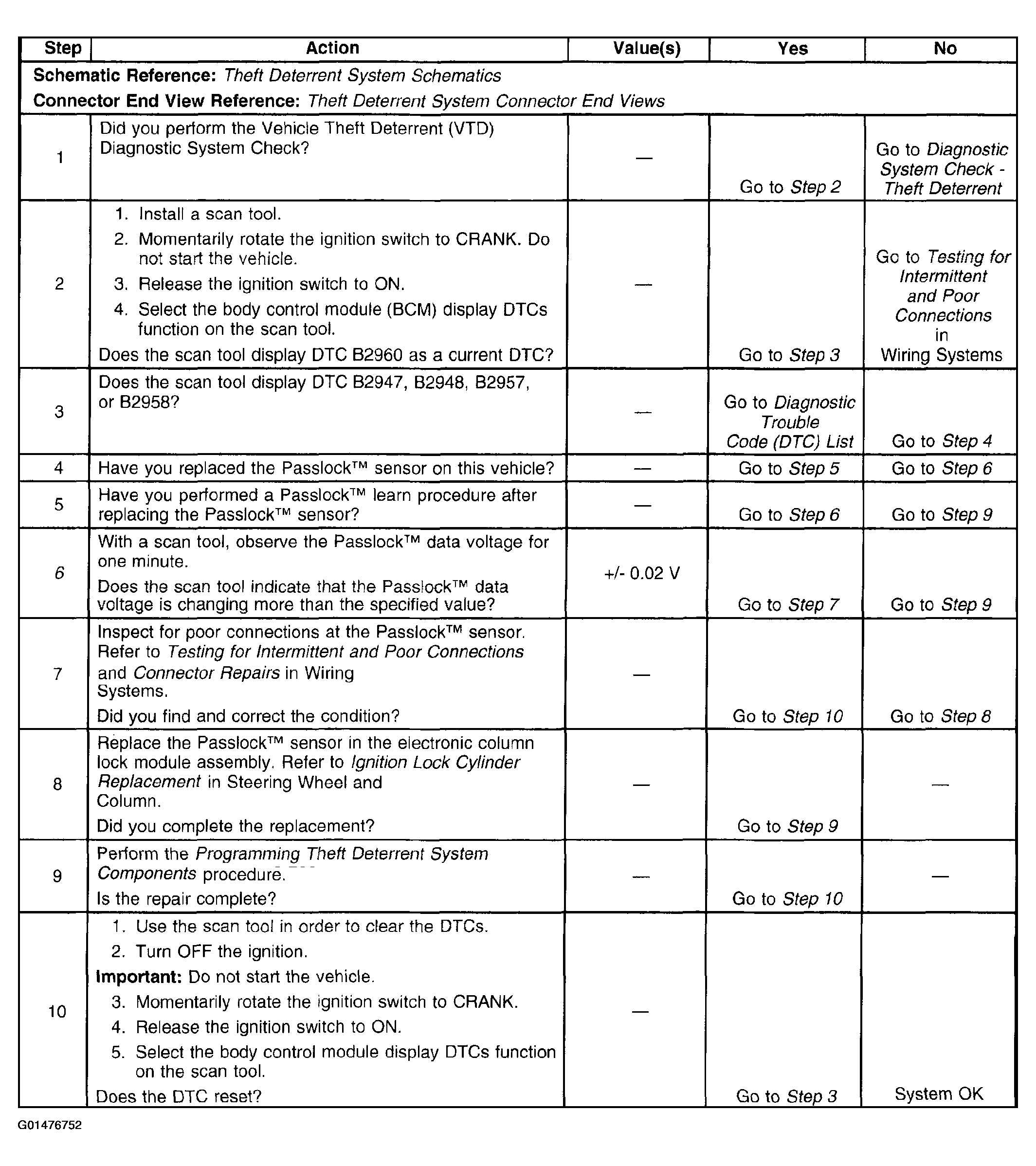

    Fig 1: DTC B2960
    G01476752Courtesy of GENERAL MOTORS CORP.
