Wiper/Washer System Connector End Views

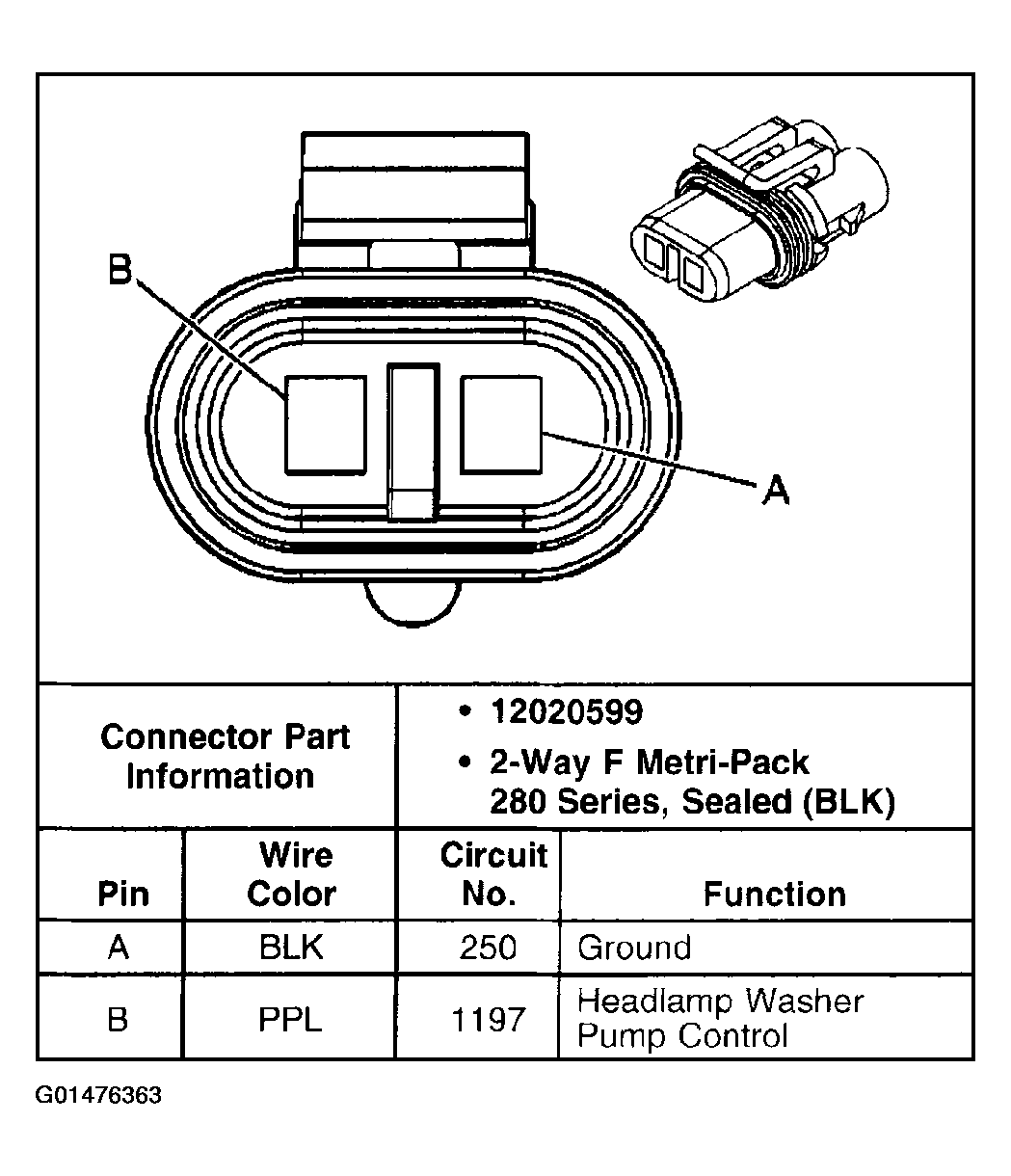

Fig 1: Headlamp Washer Fluid Pump (Export)

Courtesy of GENERAL MOTORS CORP.

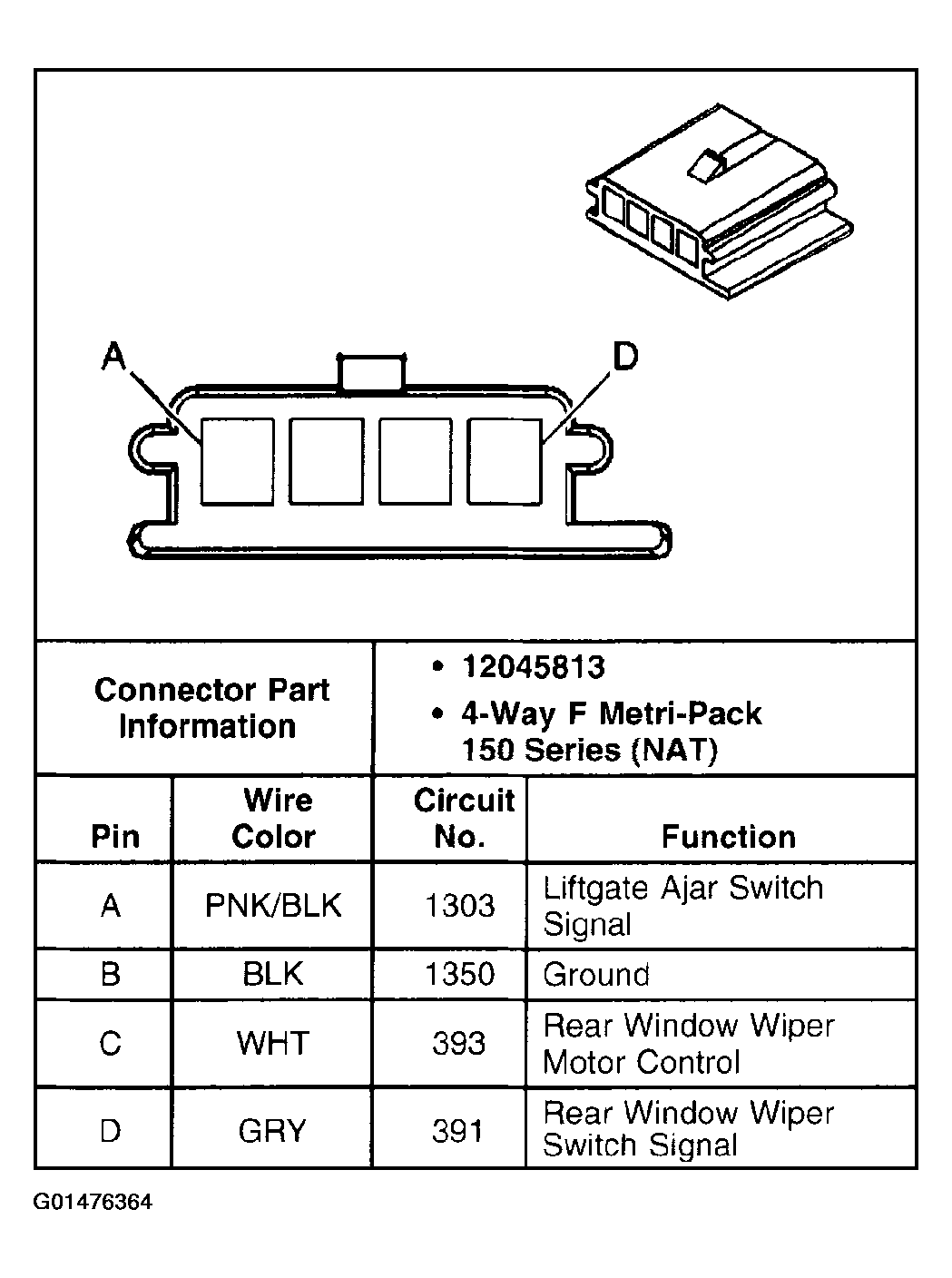

Fig 2: Rear Window Wiper Cutout & Liftglass Ajar Jamb Switch (Utility)

Courtesy of GENERAL MOTORS CORP.

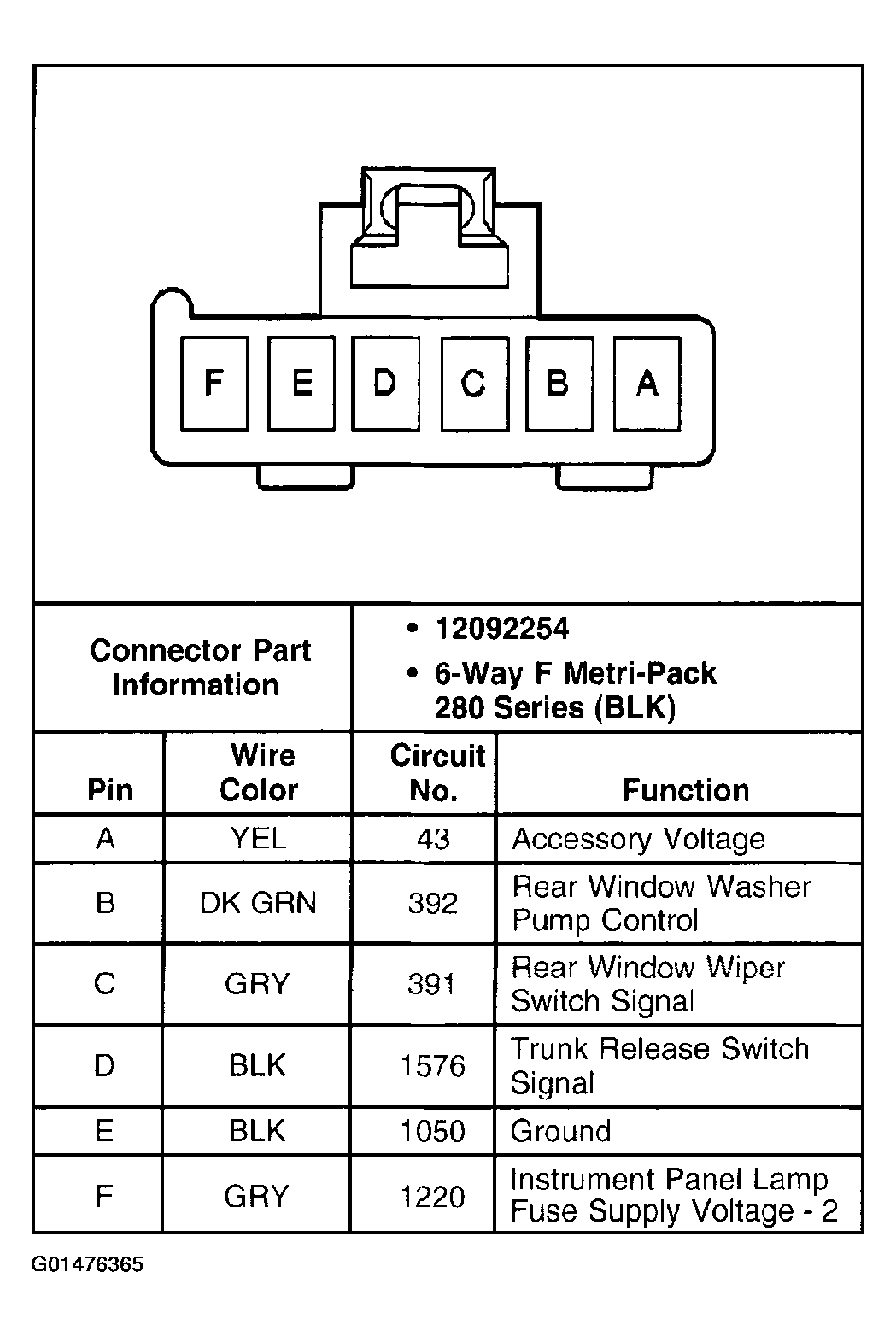

Fig 3: Rear Wiper/Washer & Endgate Window Release Switch

Courtesy of GENERAL MOTORS CORP.

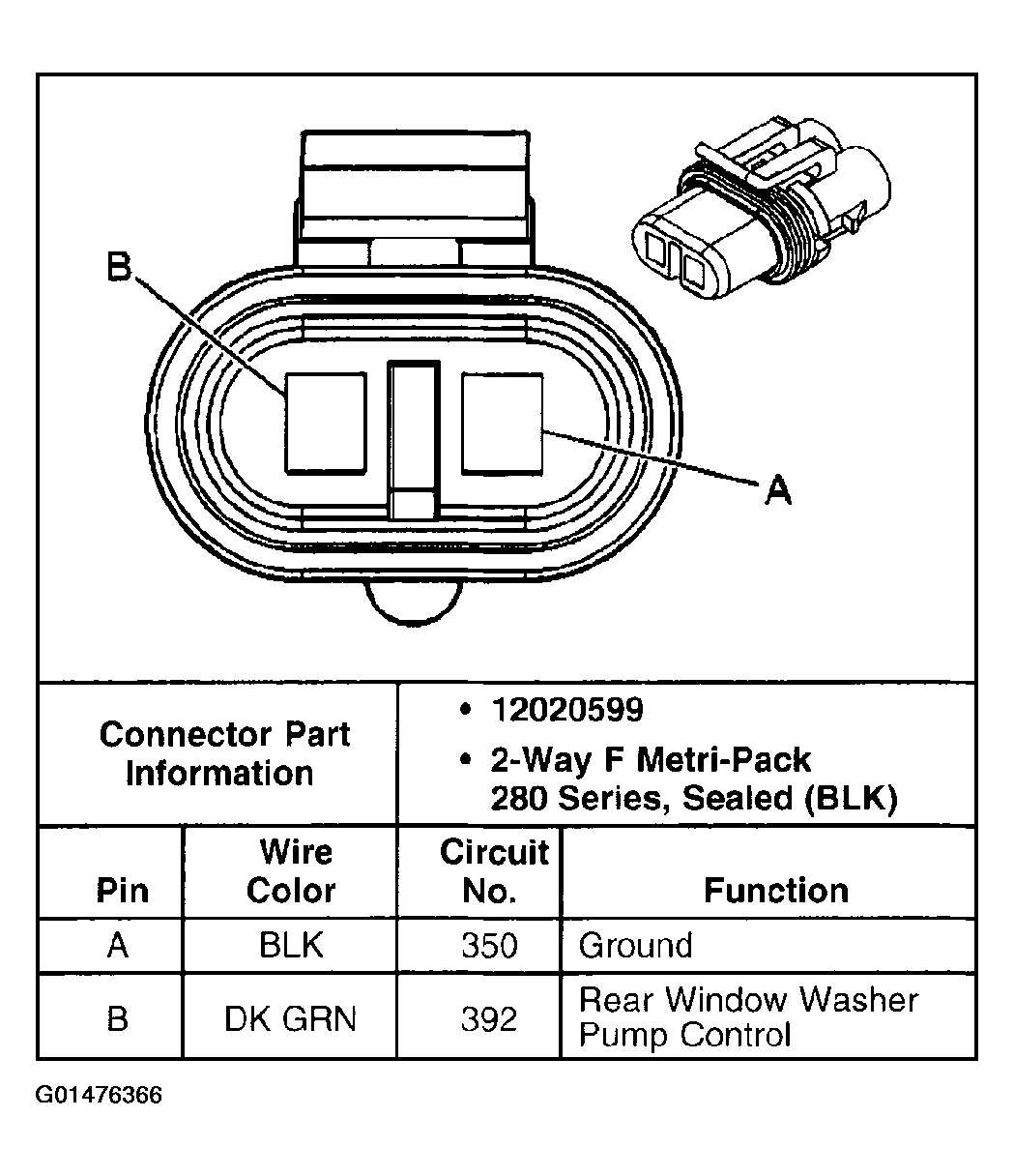

Fig 4: Rear Window Washer Fluid Pump (Utility)

Courtesy of GENERAL MOTORS CORP.

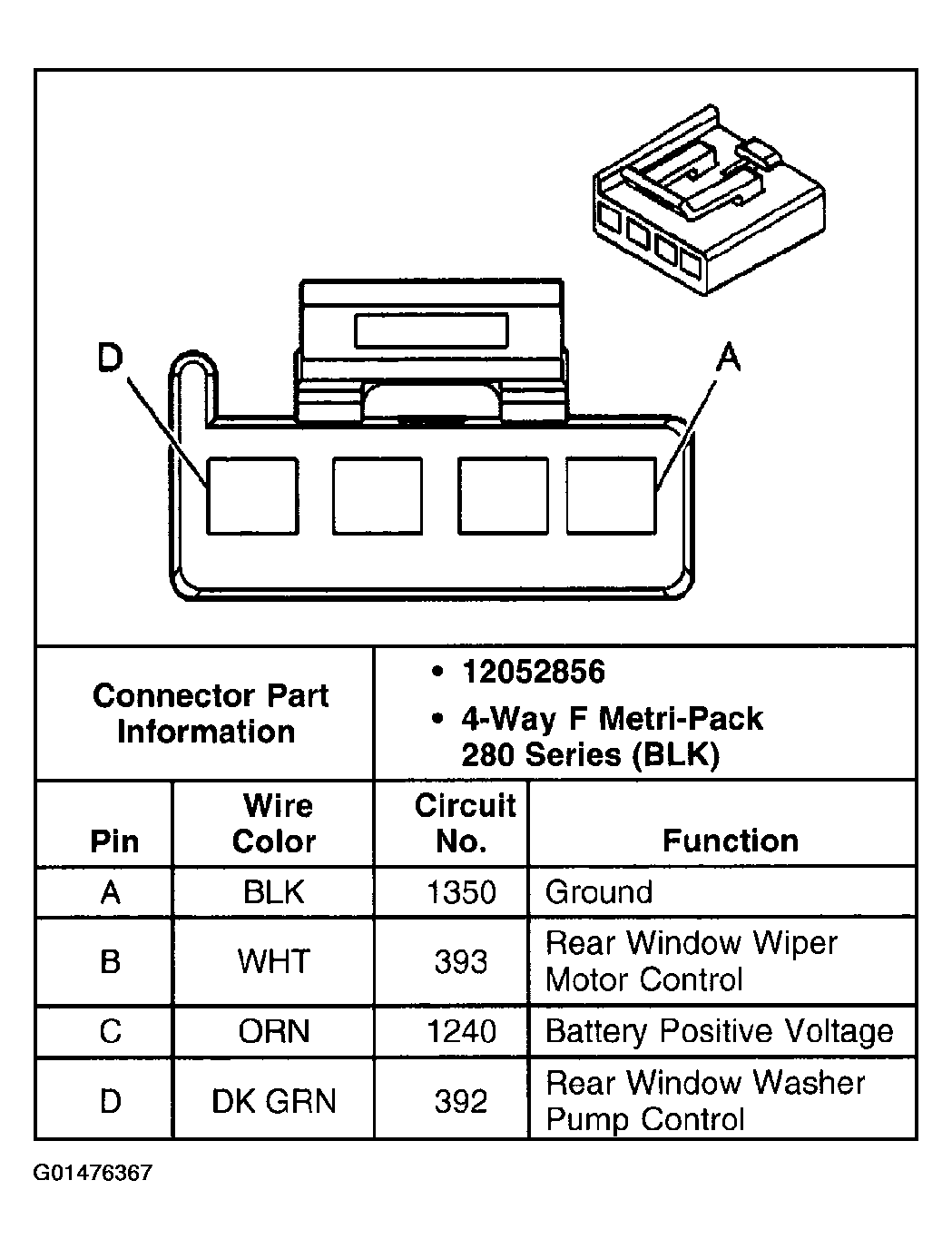

Fig 5: Rear Window Wiper Motor Controller (Utility)

Courtesy of GENERAL MOTORS CORP.

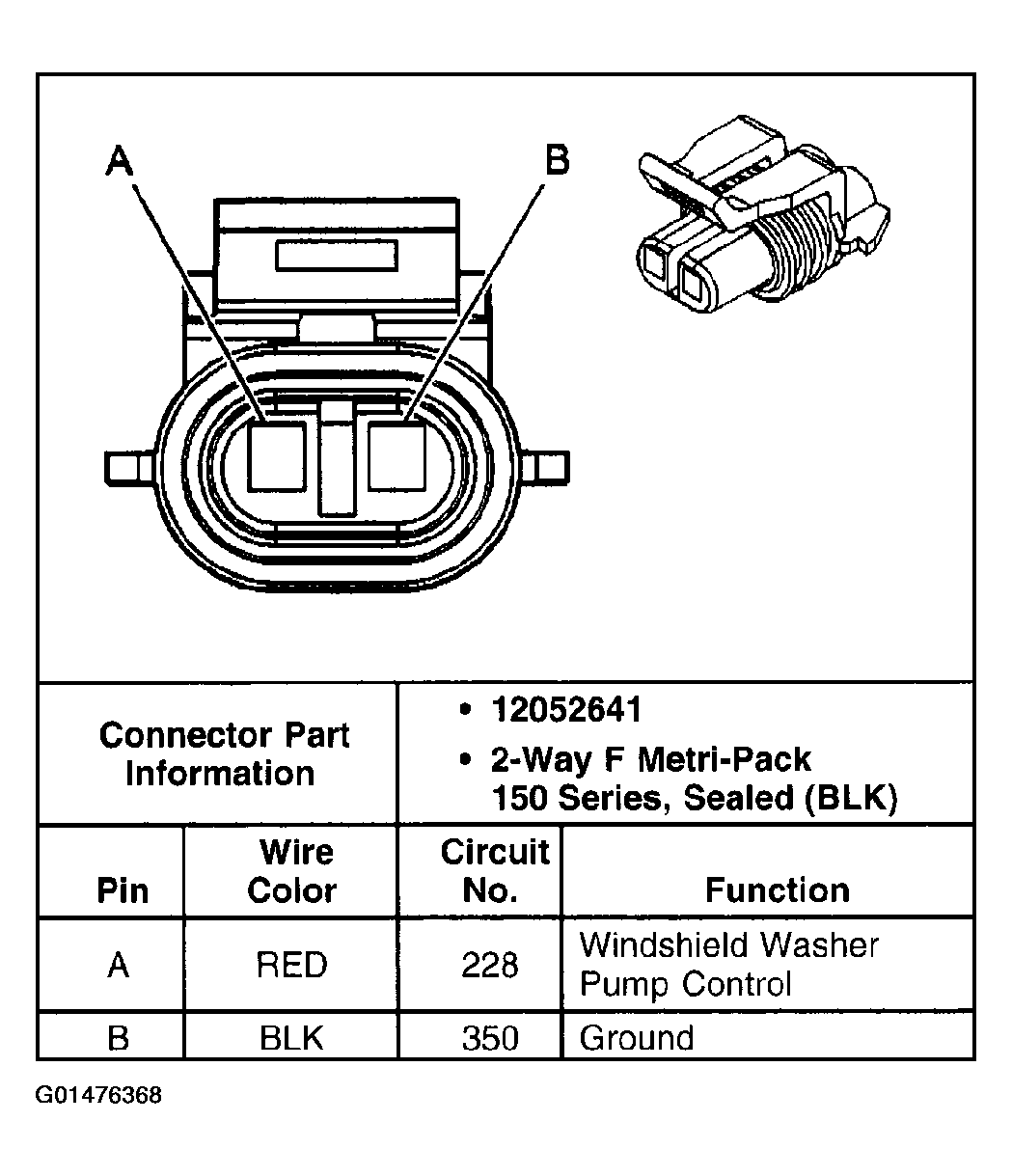

Fig 6: Windshield Washer Fluid Pump

Courtesy of GENERAL MOTORS CORP.

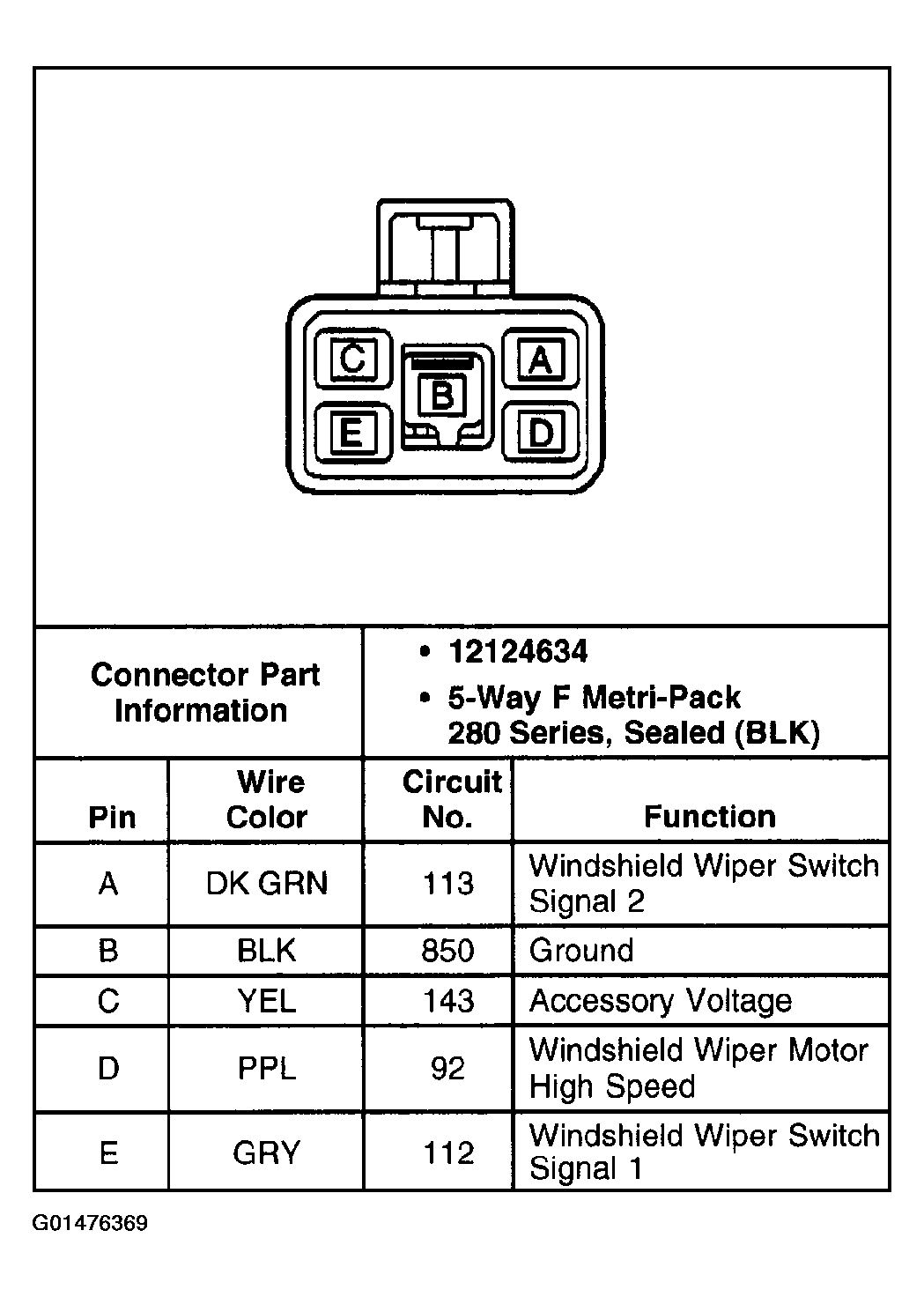

Fig 7: Windshield Wiper Motor

Courtesy of GENERAL MOTORS CORP.
