Steering Column Disassembled View (Column Shift and Floor Shift Standard)

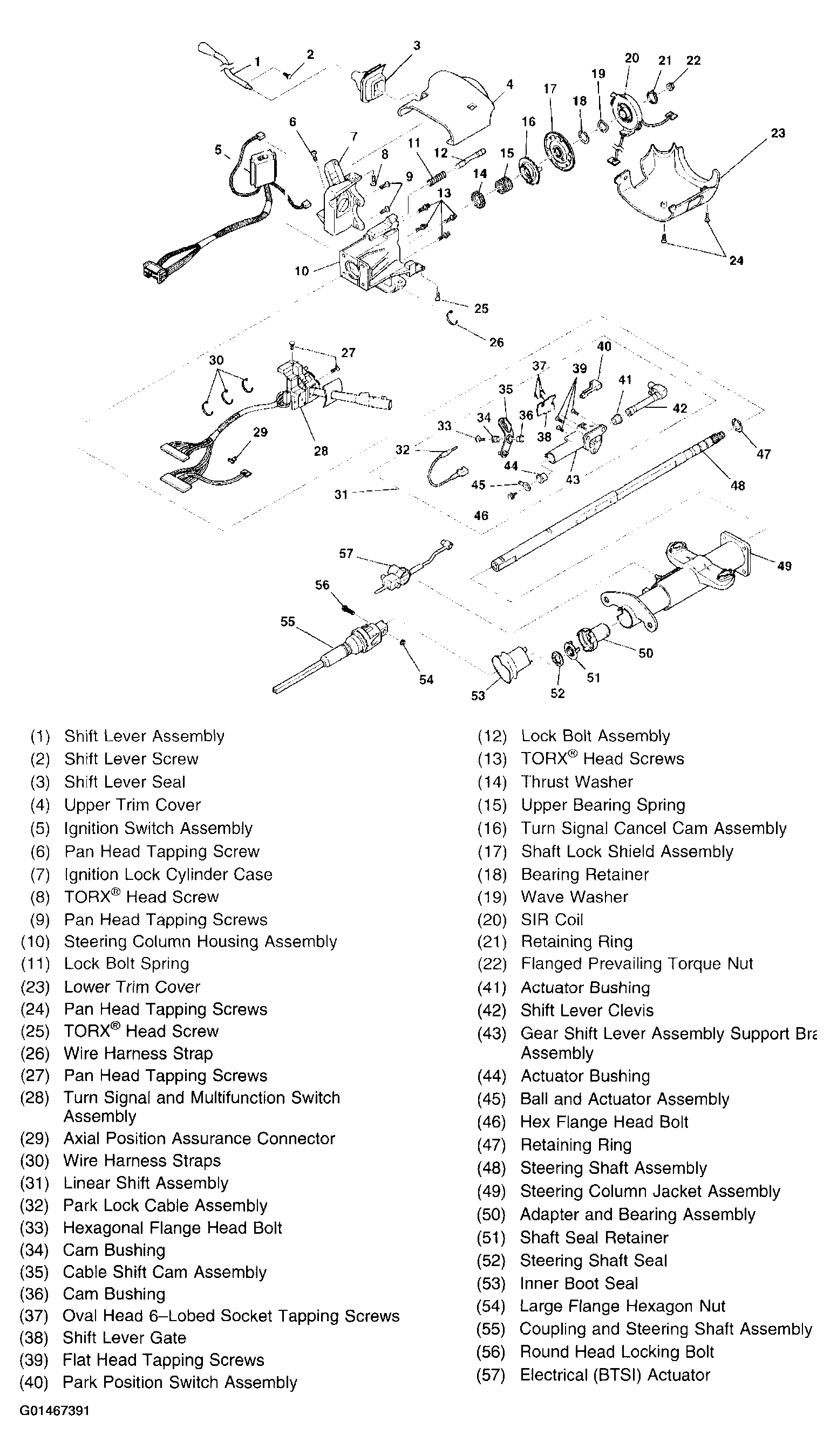

Fig 1: Standard Column Shift
G01467391Courtesy of GENERAL MOTORS CORP.

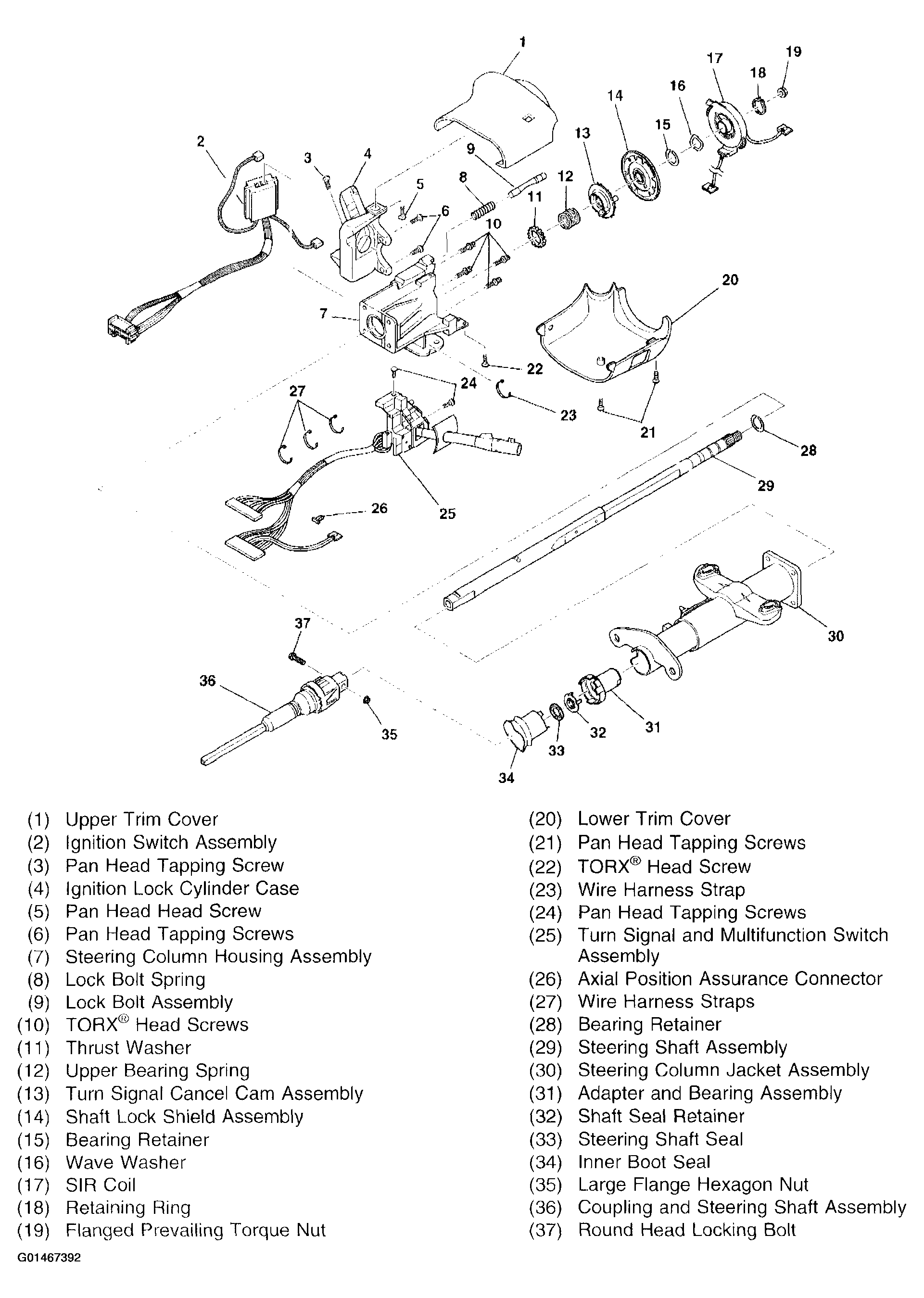

Fig 2: Standard Floor Shift Column
G01467392Courtesy of GENERAL MOTORS CORP.
