Transfer Case Control Component Views

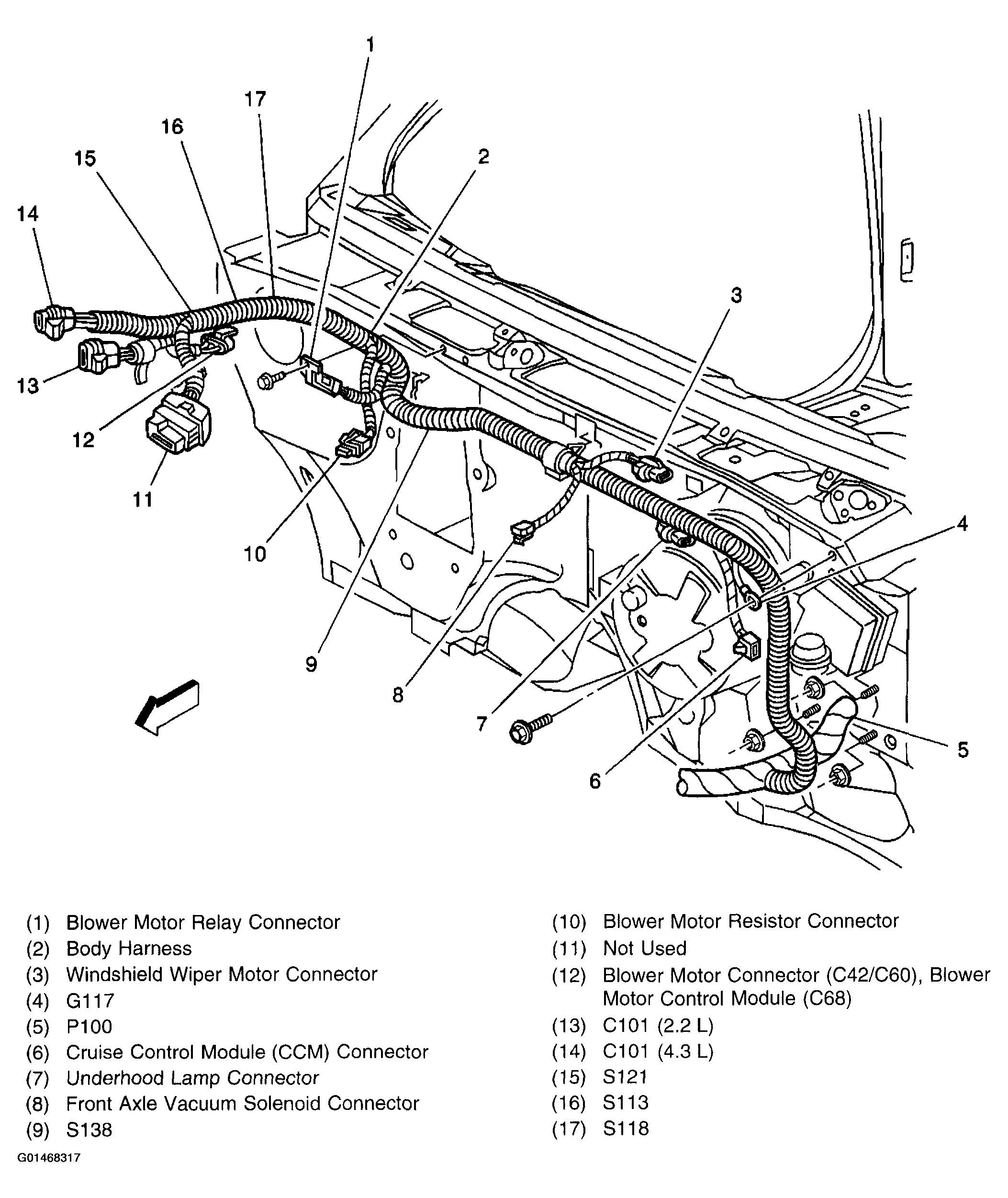

Fig 1: Body Harness to Cowl Component View
G01468317Courtesy of GENERAL MOTORS CORP.

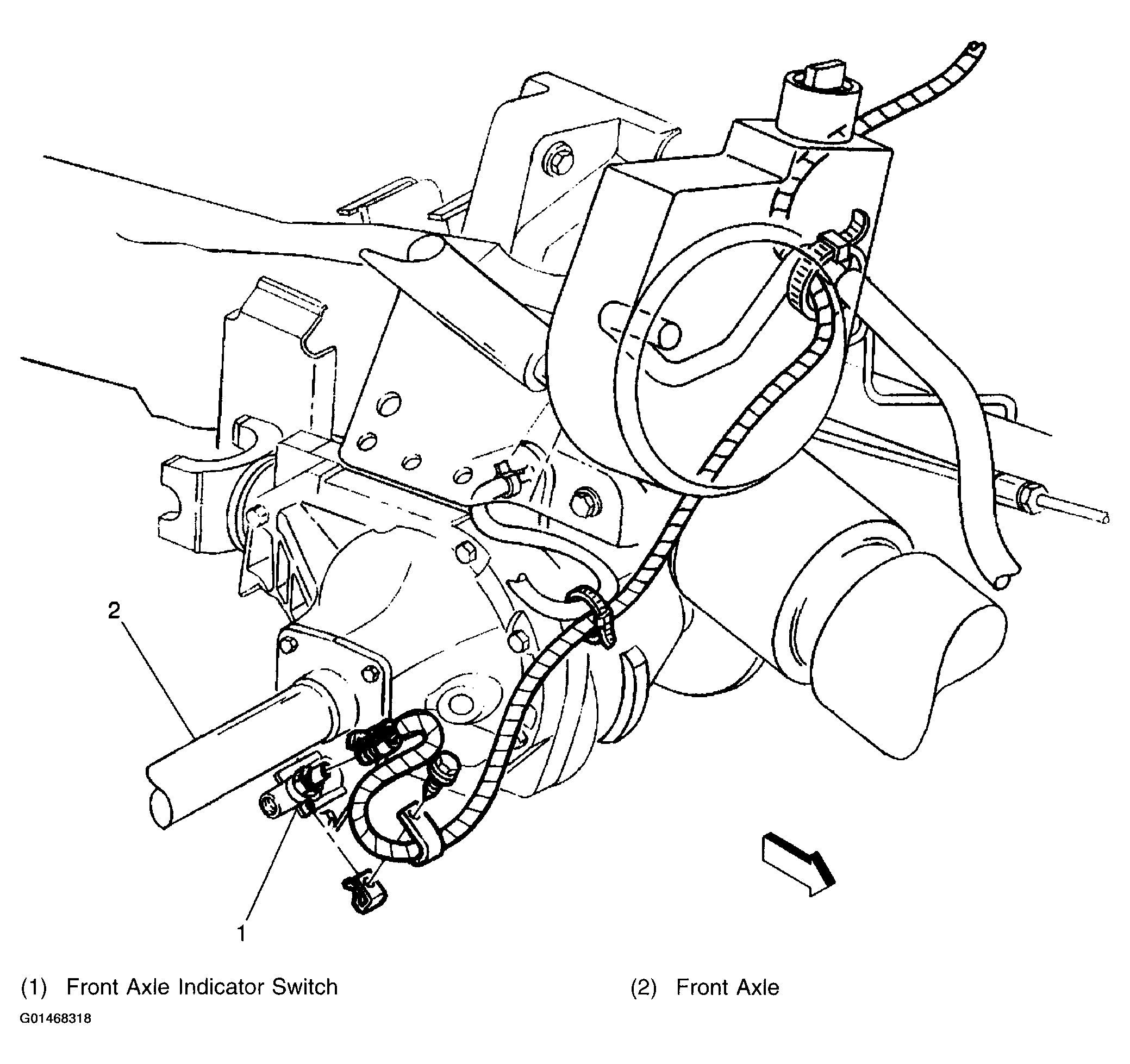

Fig 2: Front Axle Switch Component View
G01468318Courtesy of GENERAL MOTORS CORP.

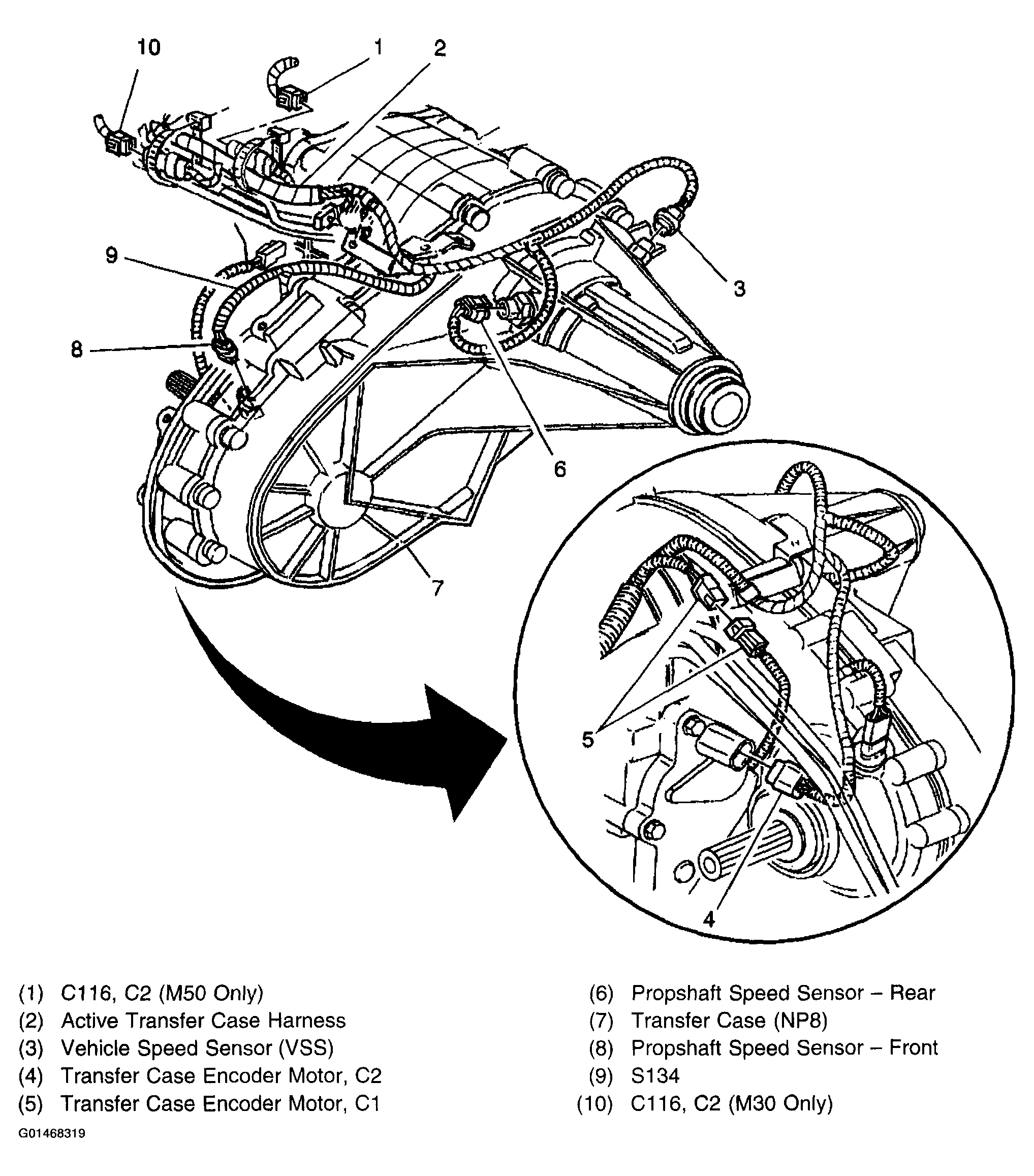

Fig 3: Transfer Case (NP8) Harness Routing View
G01468319Courtesy of GENERAL MOTORS CORP.
Fig 4: IP Center Switch Component View
G01468320Courtesy of GENERAL MOTORS CORP.

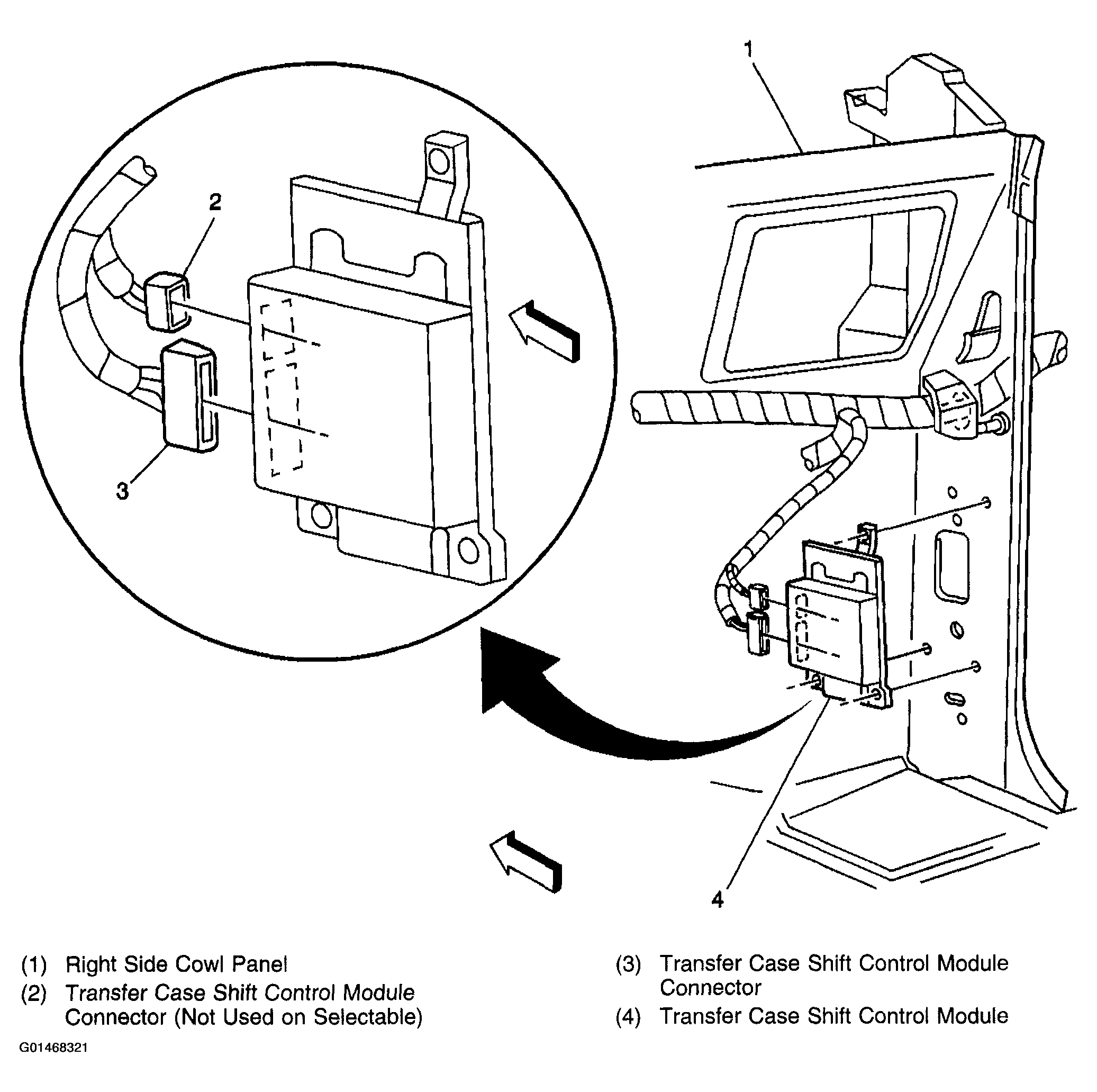

Fig 5: Transfer Case Shift Control Module Component View
G01468321Courtesy of GENERAL MOTORS CORP.
