Removal Procedure

  1. Open the side access door
  2. Remove the bolts retaining the lower door striker.
  3. Remove the lower door striker.

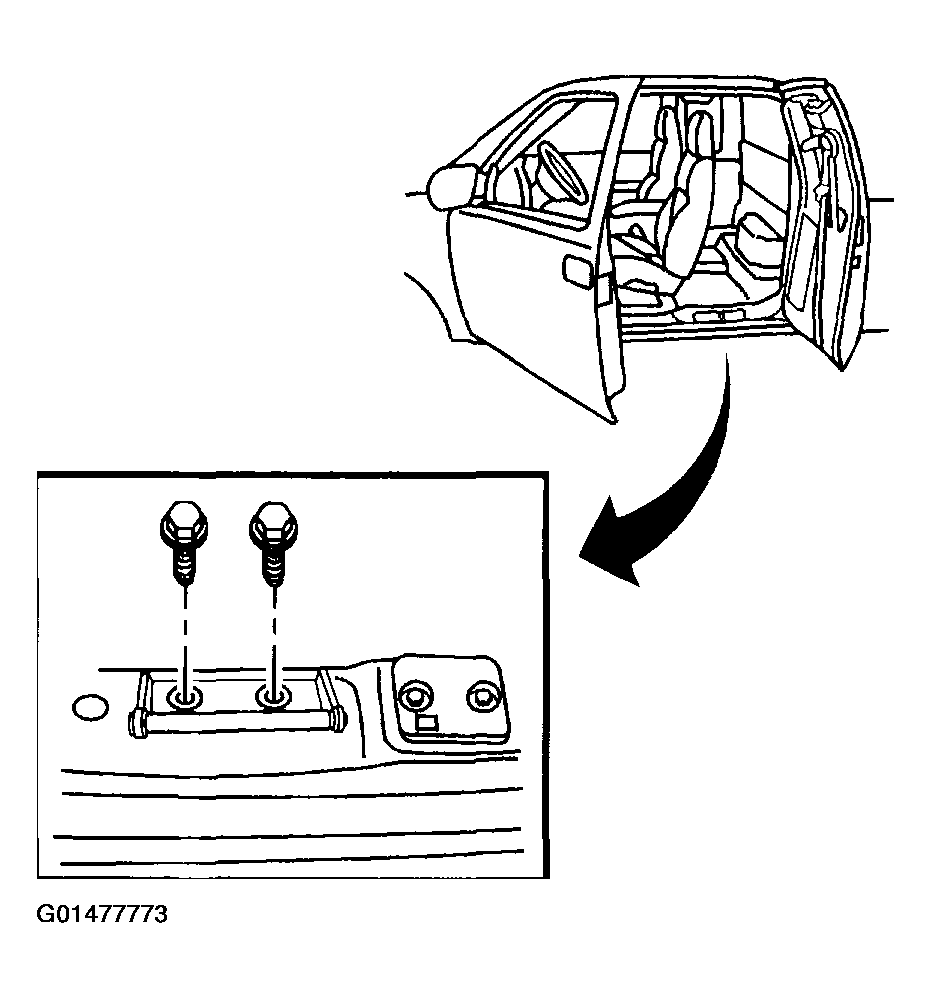

    Fig 1: Lower Door Striker
    G01477773Courtesy of GENERAL MOTORS CORP.
