Installation Procedure

Install the rear run channel to the door.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the bolts that retain the rear run channel to the door.
Tighten

Tighten the bolts to 10 N.m (88 Ib. in).
Slide the window rearward into the rear run channel.
Install the front run channel to the door.
Install the bolts that retain the front run channel to the door.
Tighten

Tighten the bolts to 10 N.m (88 Ib. in).
Install the water deflector. Refer to WATER DEFLECTOR REPLACEMENT - DOOR .
Install the door trim panel. Refer to the appropriate procedure
- TRIM PANEL REPLACEMENT - SIDE REAR DOOR (UTILITY) or TRIM PANEL REPLACEMENT - SIDE REAR DOOR (EXTENDED CAB P/U ONLY)
- TRIM PANEL REPLACEMENT - SIDE FRONT DOOR

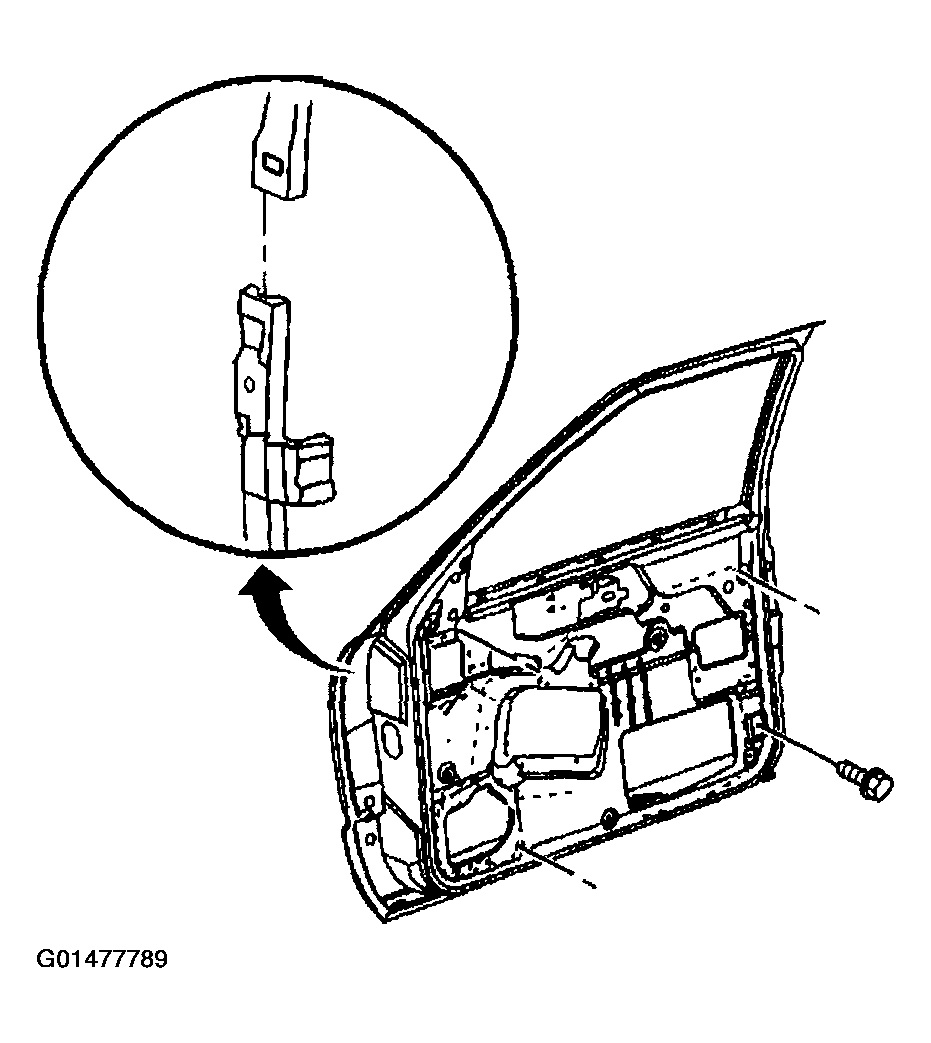

Fig 1: Installing Rear Run Channel To Door
Courtesy of GENERAL MOTORS CORP.
