Stationary Windows Connector End Views

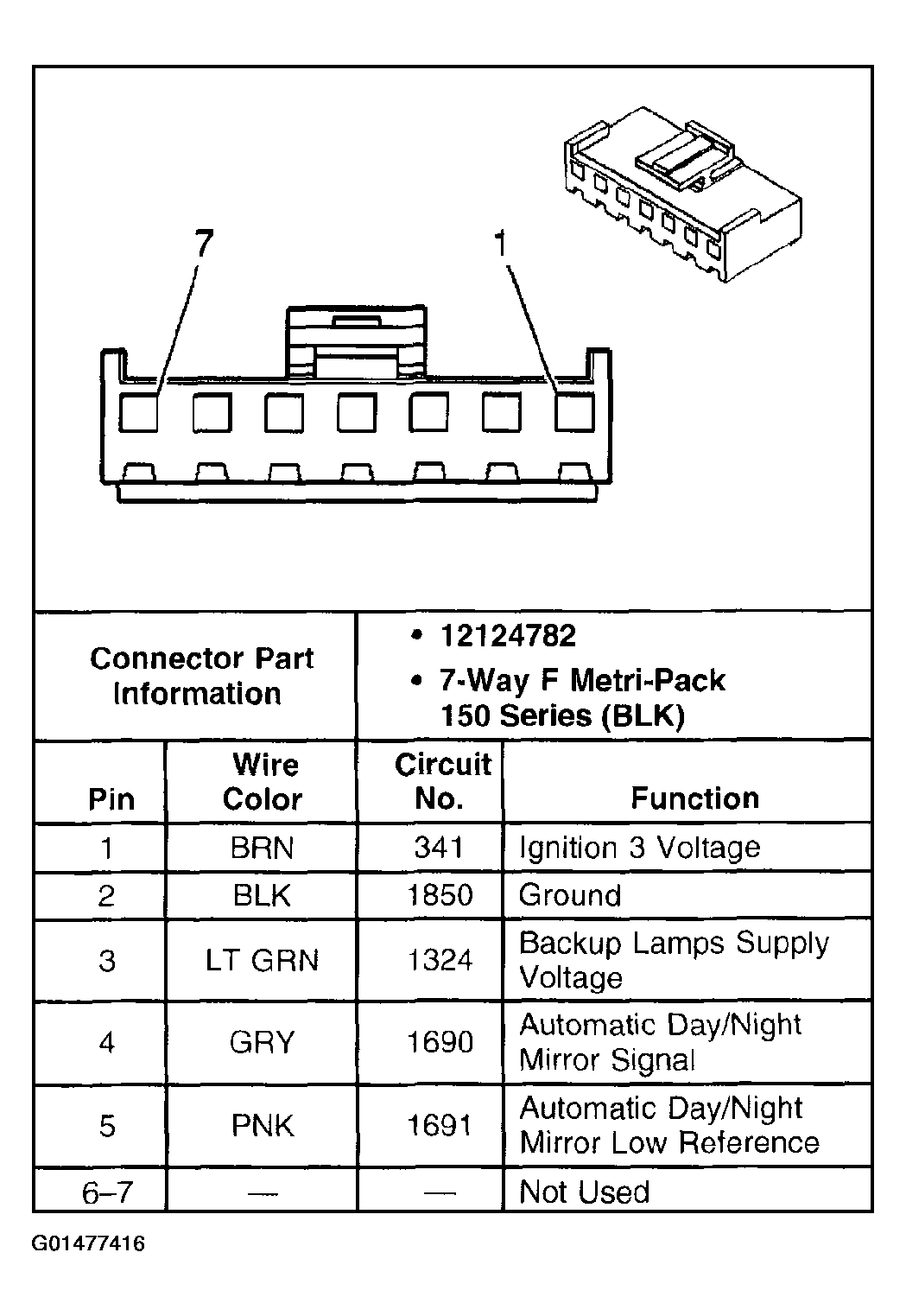

Fig 1: Identifying Inside Rearview Mirror (W/Automatic Day/Night Mirror)
G01477416Courtesy of GENERAL MOTORS CORP.
