ABS Connector End Views

Fig 1: Electronic Brake Control Module (EBCM) Connector C1 Terminal Identification

Courtesy of GENERAL MOTORS CORP.

Fig 2: Electronic Brake Control Module (EBCM) Connector C2 Terminal Identification

Courtesy of GENERAL MOTORS CORP.

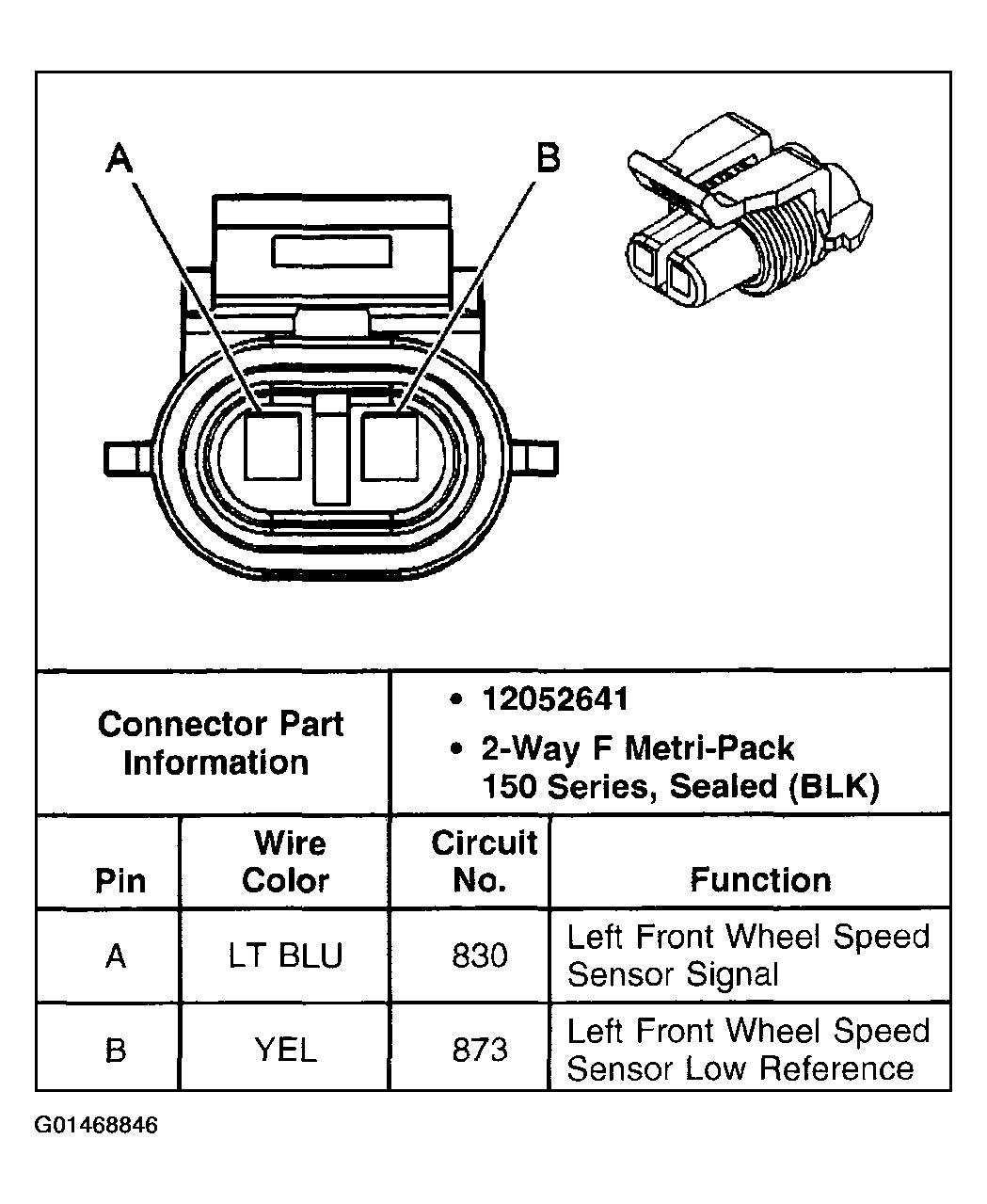

Fig 3: Wheel Speed Sensor (WSS) - LF Connector Terminal Identification

Courtesy of GENERAL MOTORS CORP.

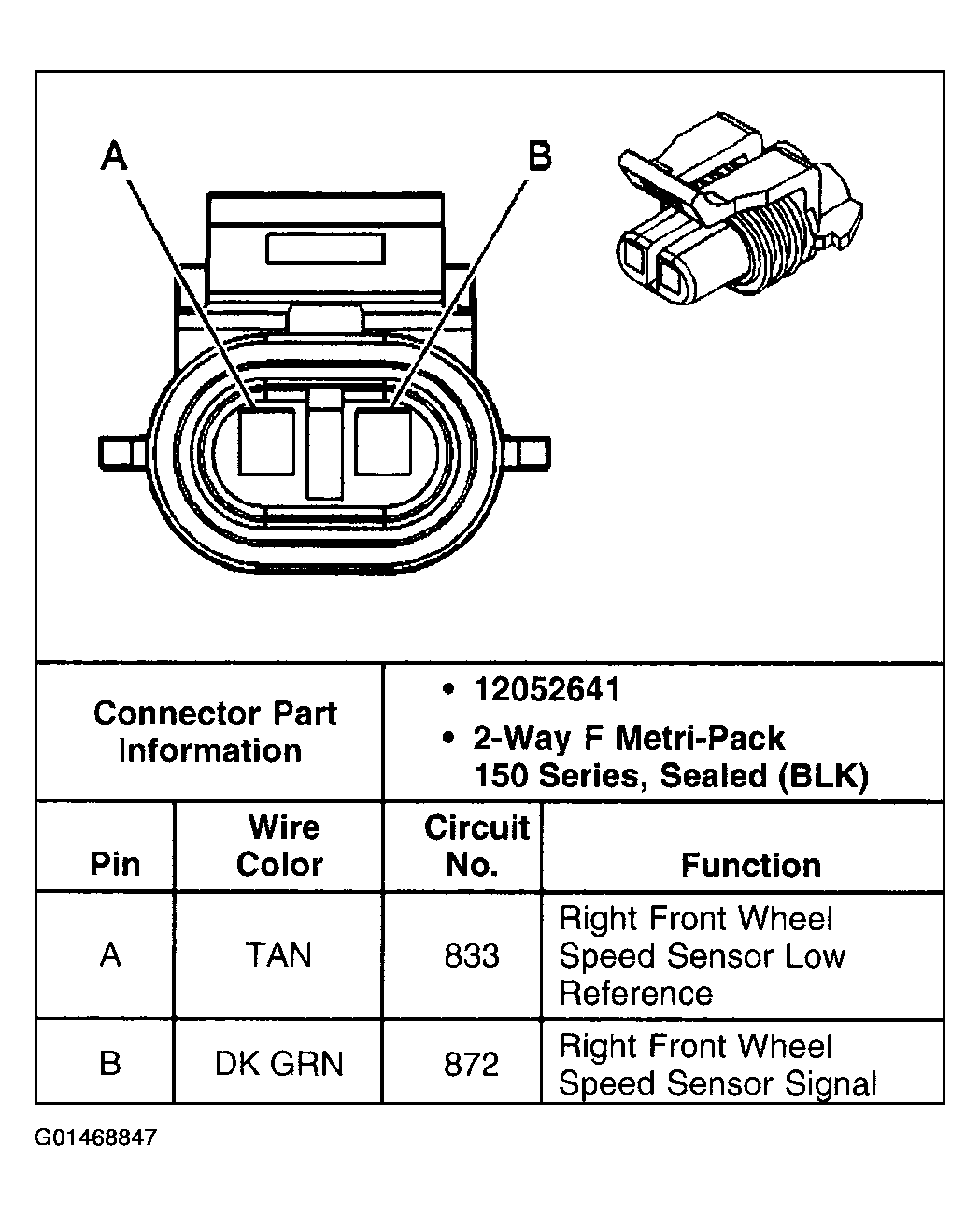

Fig 4: Wheel Speed Sensor (WSS) - RF Connector Terminal Identification

Courtesy of GENERAL MOTORS CORP.
