HVAC Control Assembly Connector End View C2

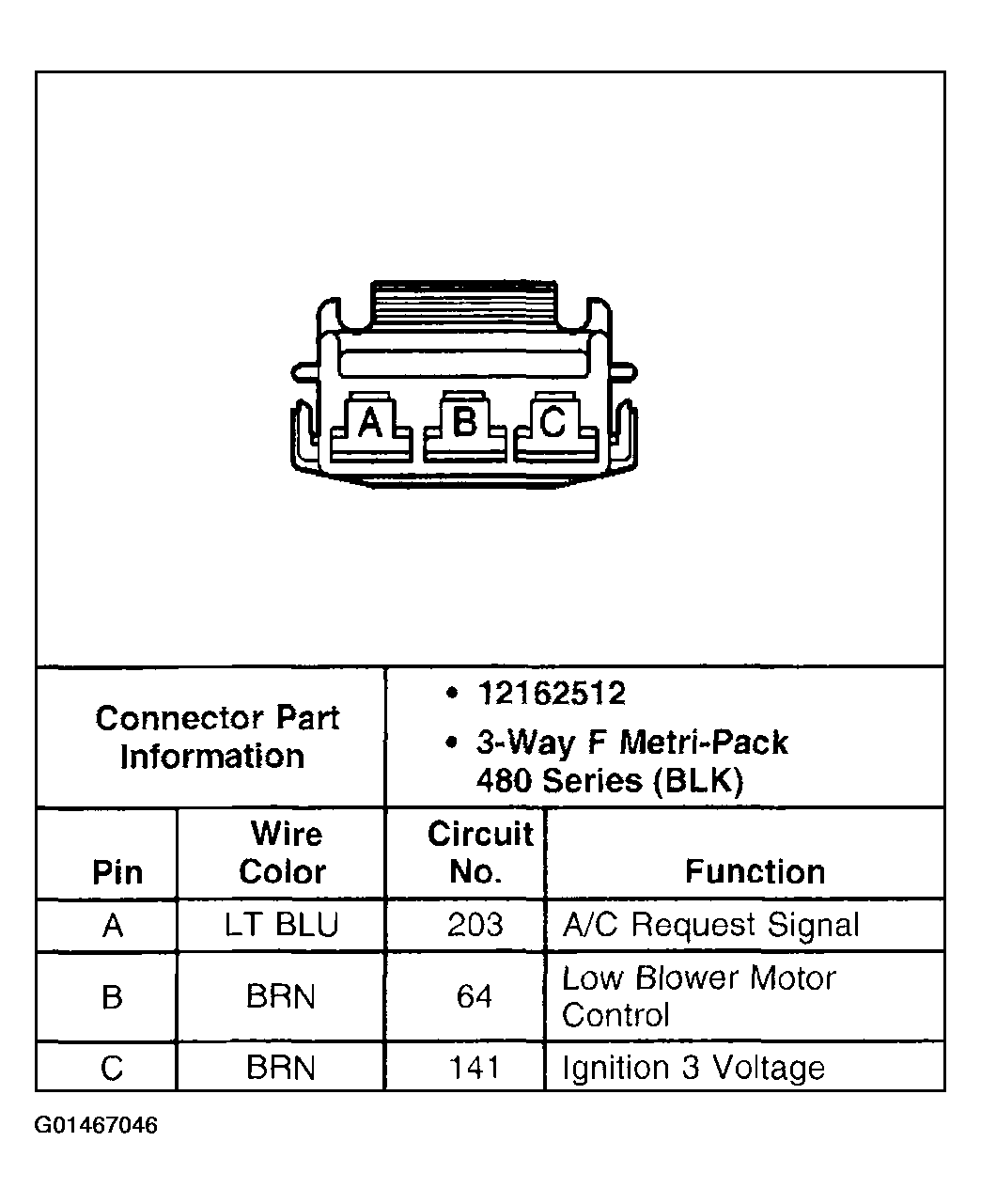

Fig 1: HVAC Control Assembly Connector End View C2
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
