HVAC Control Assembly Connector End View C3

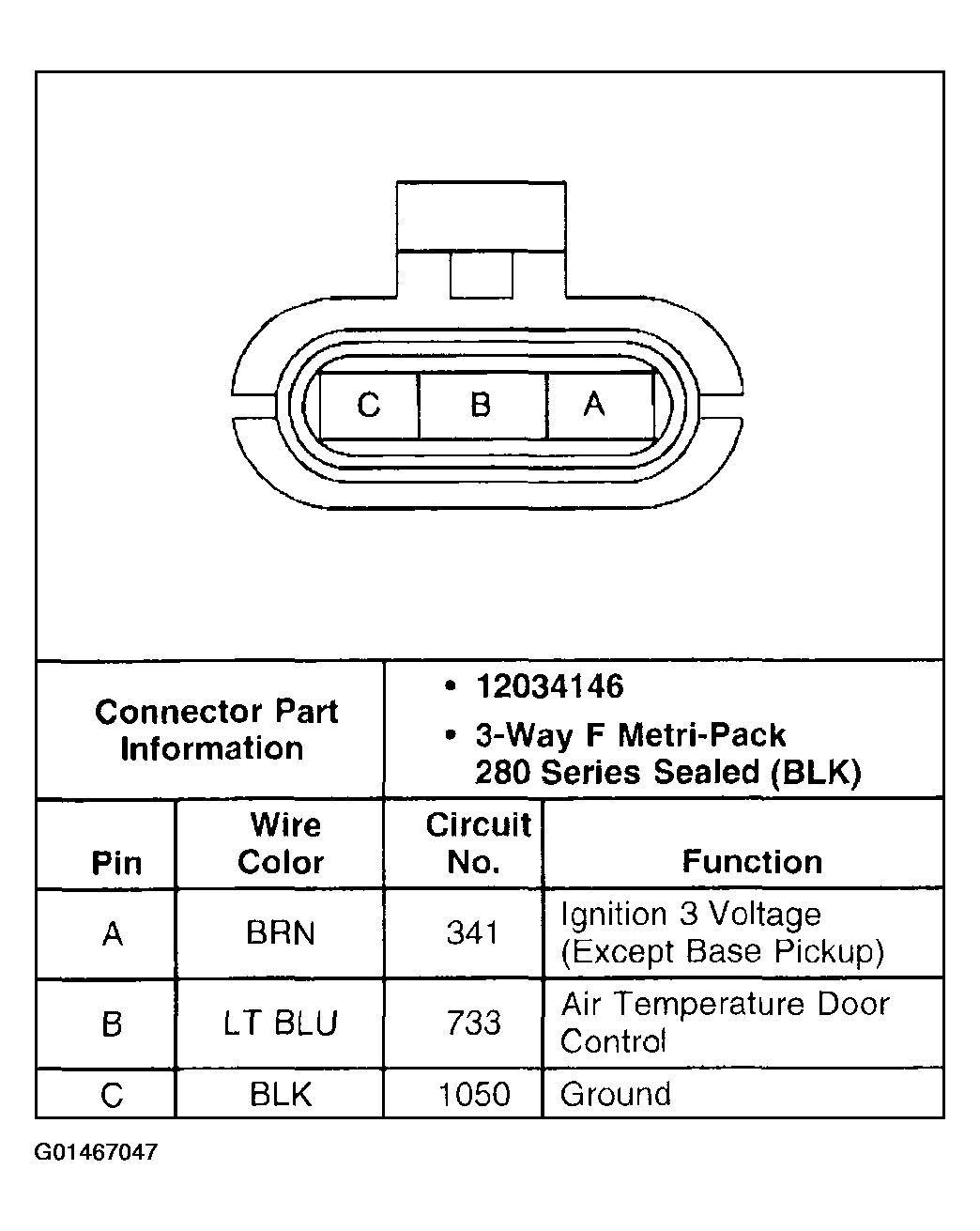

Fig 1: HVAC Control Assembly Connector End View C3
Courtesy of GENERAL MOTORS CORP.
