HVAC Control Assembly Connector End View C4

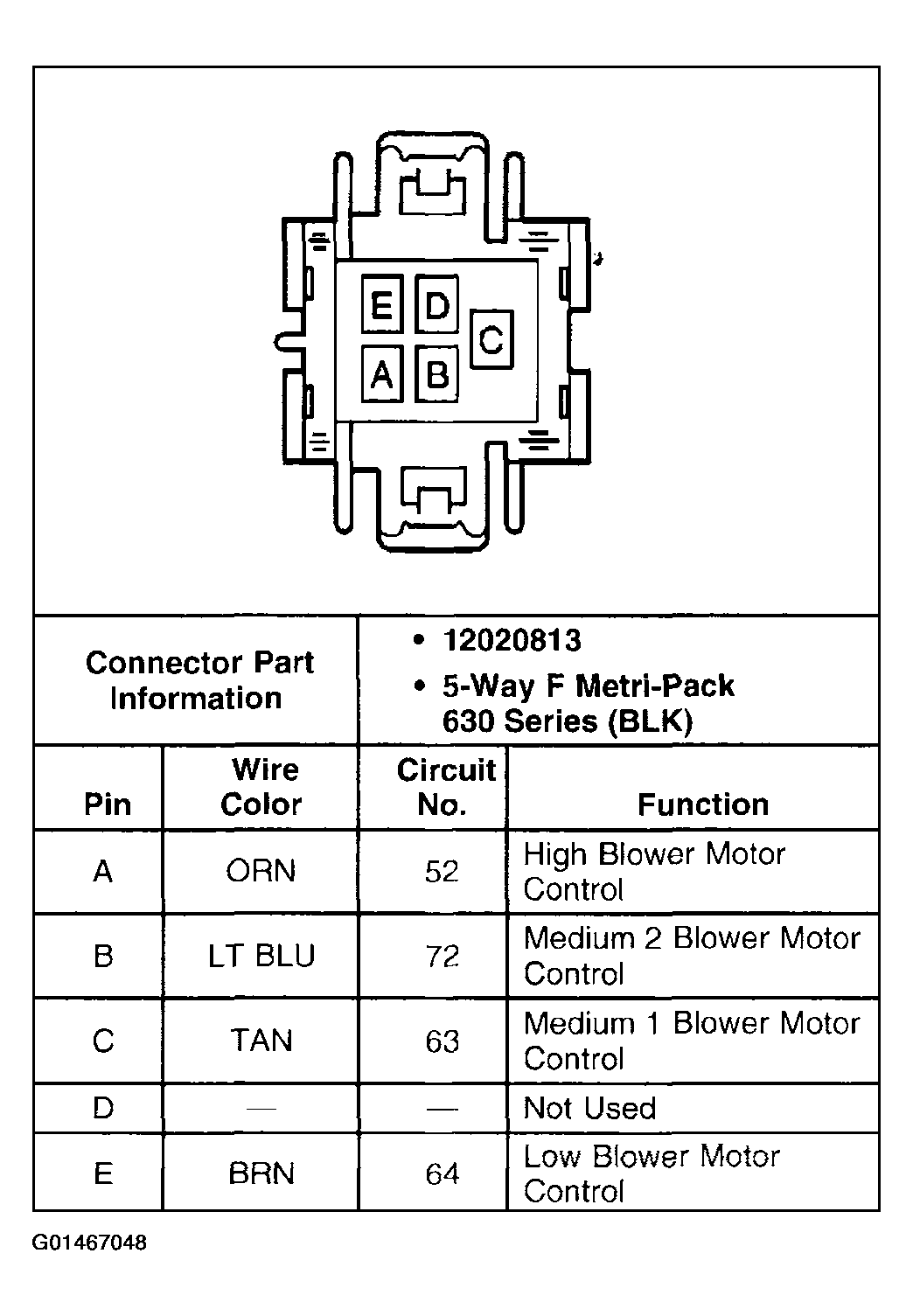

Fig 1: HVAC Control Assembly Connector End View C4
G01467048Courtesy of GENERAL MOTORS CORP.
