Heated Seat Control Module Connector End View - Driver/Front Passenger (Part Of the Heated Seat Assembly)

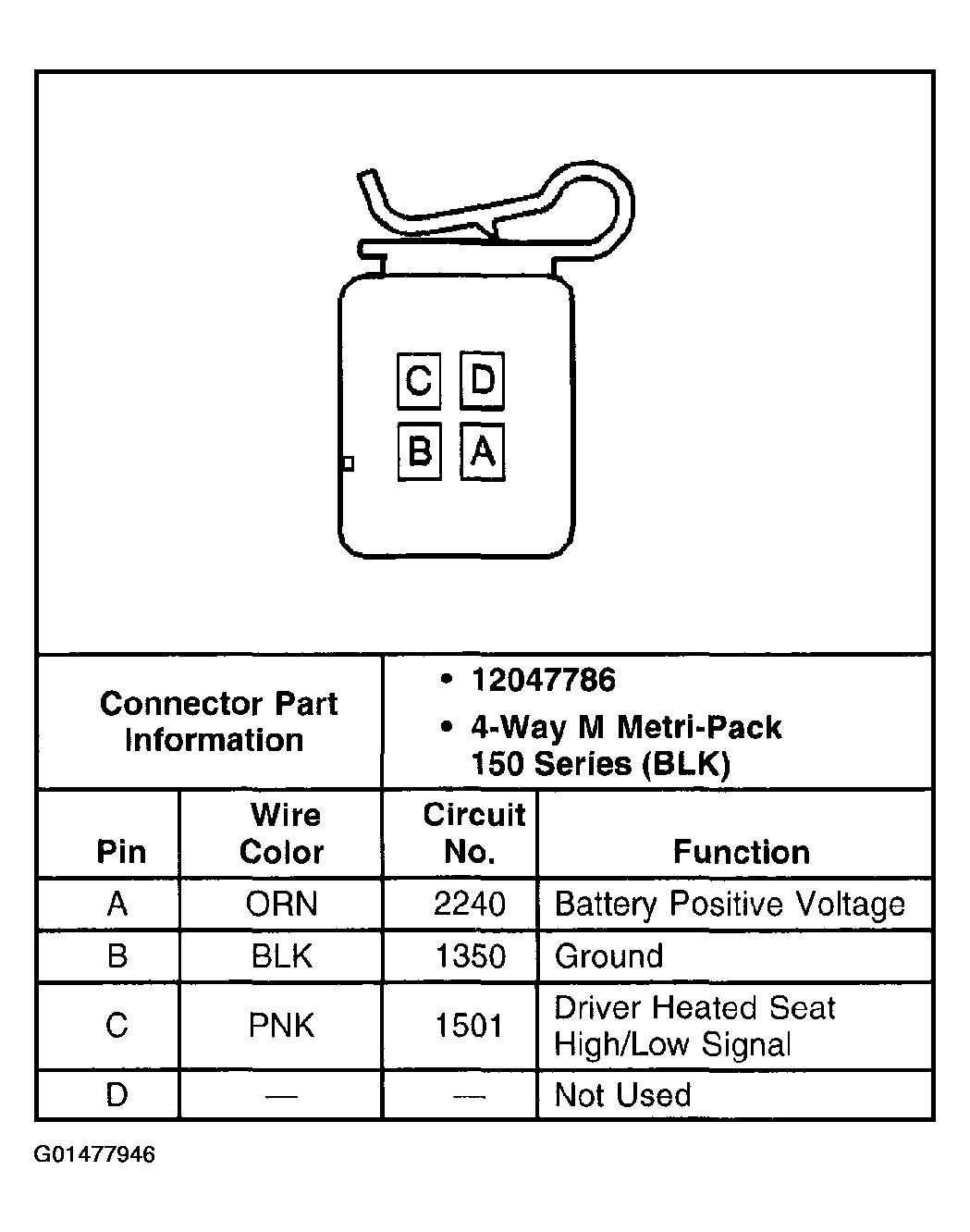

Fig 1: Heated Seat Control Module Connector End View - Driver/Front Passenger (Part Of the Heated Seat Assembly)
G01477946Courtesy of GENERAL MOTORS CORP.
