Seat Rear Vertical Position Sensor Connector End View - Driver (W/ Memory)

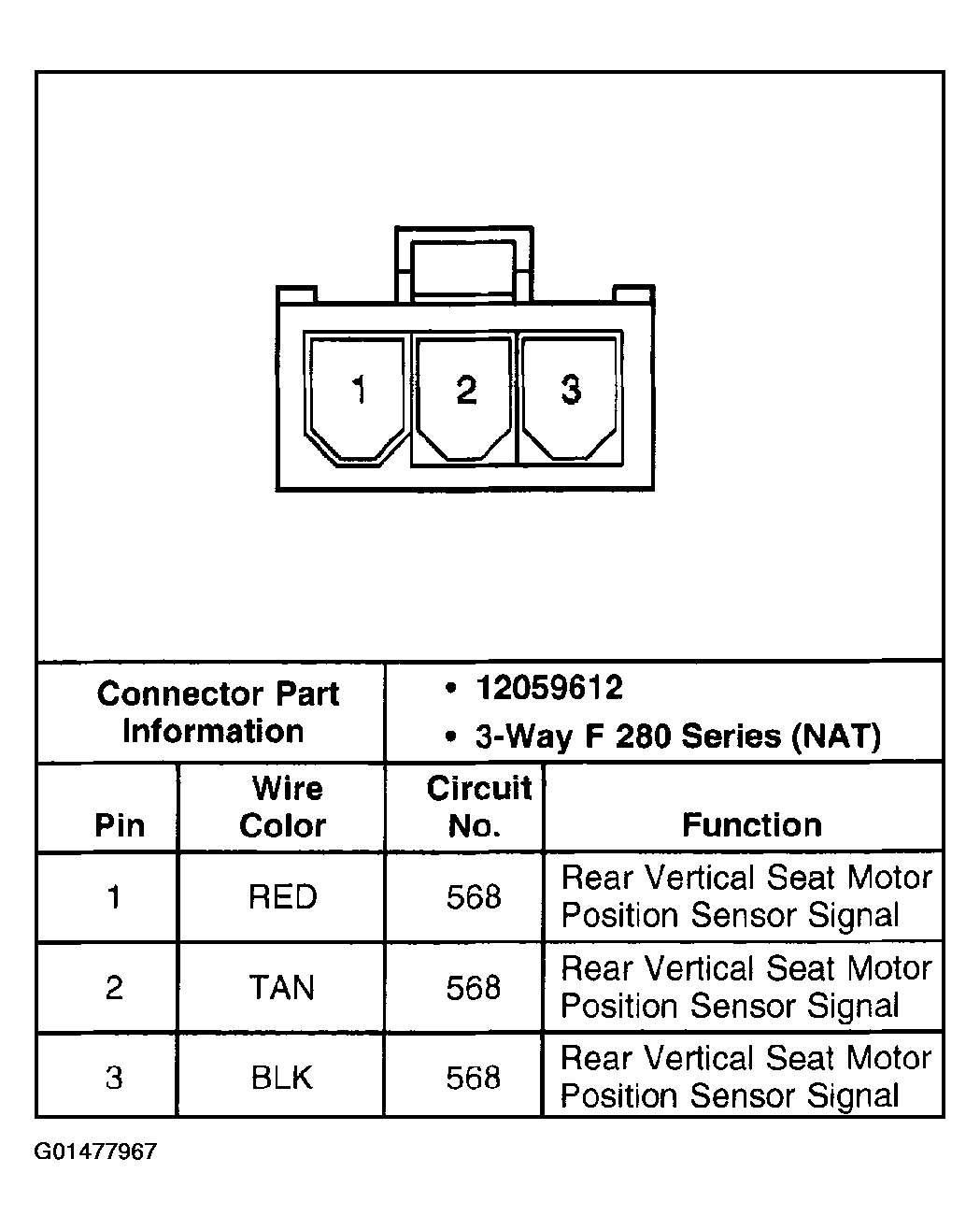

Fig 1: Seat Rear Vertical Position Sensor Connector End View - Driver (W/ Memory)
G01477967Courtesy of GENERAL MOTORS CORP.
