Engine Electrical Component Views

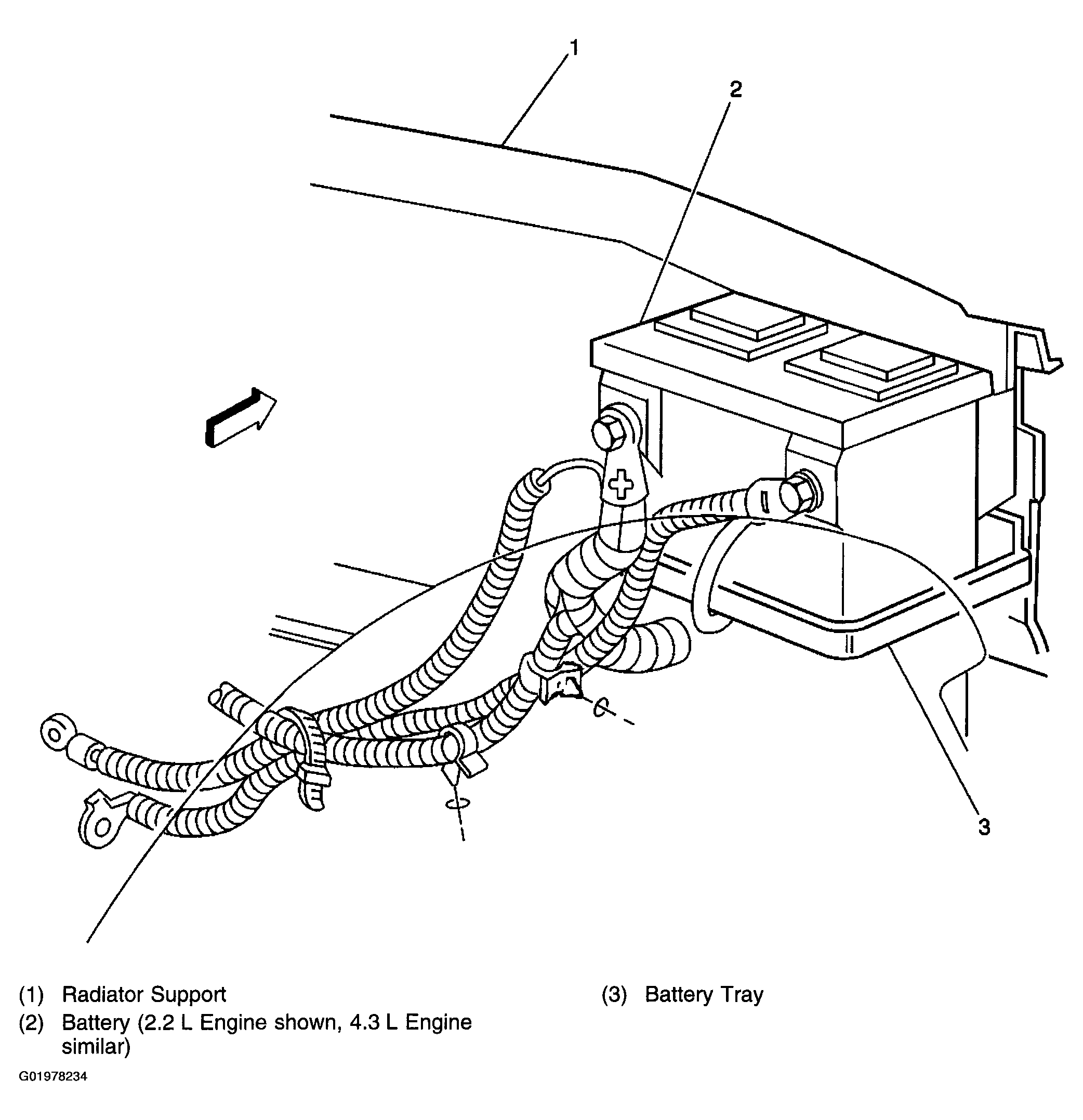

Fig 1: Identifying Battery Component

Courtesy of GENERAL MOTORS CORP.

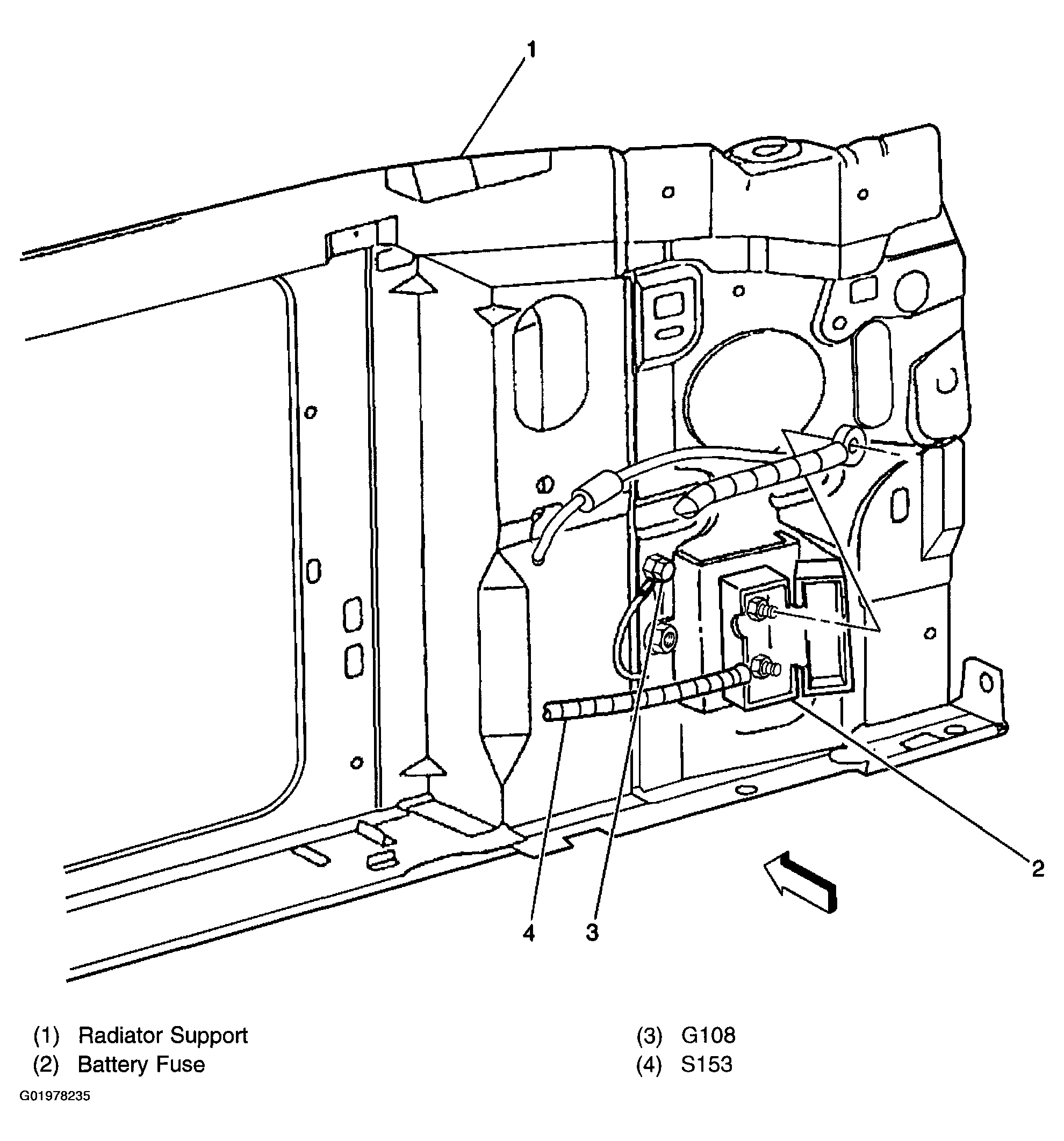

Fig 2: Identifying Battery Fuse

Courtesy of GENERAL MOTORS CORP.

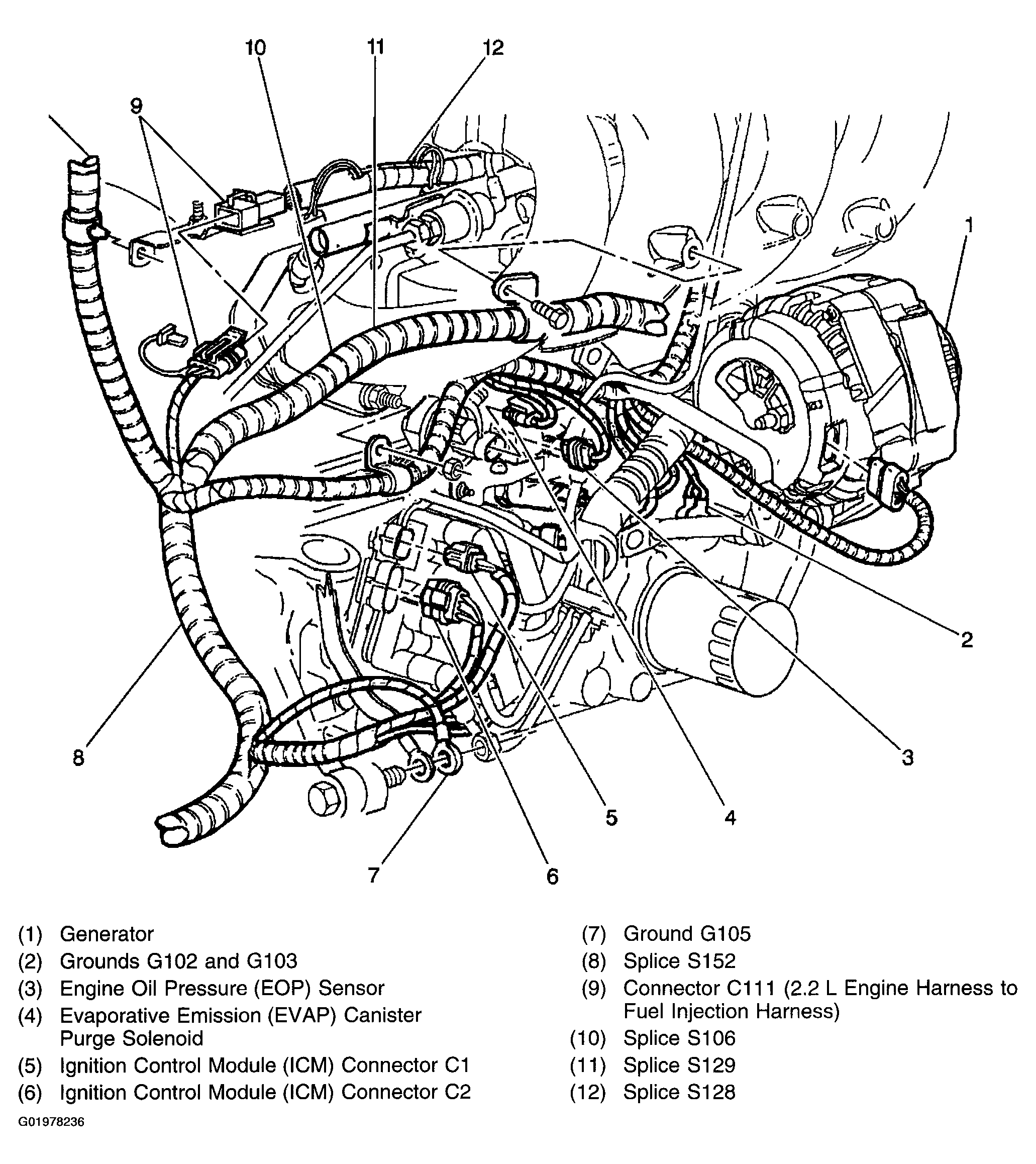

Fig 3: Identifying 2.2 L Engine Right Rear Side

Courtesy of GENERAL MOTORS CORP.

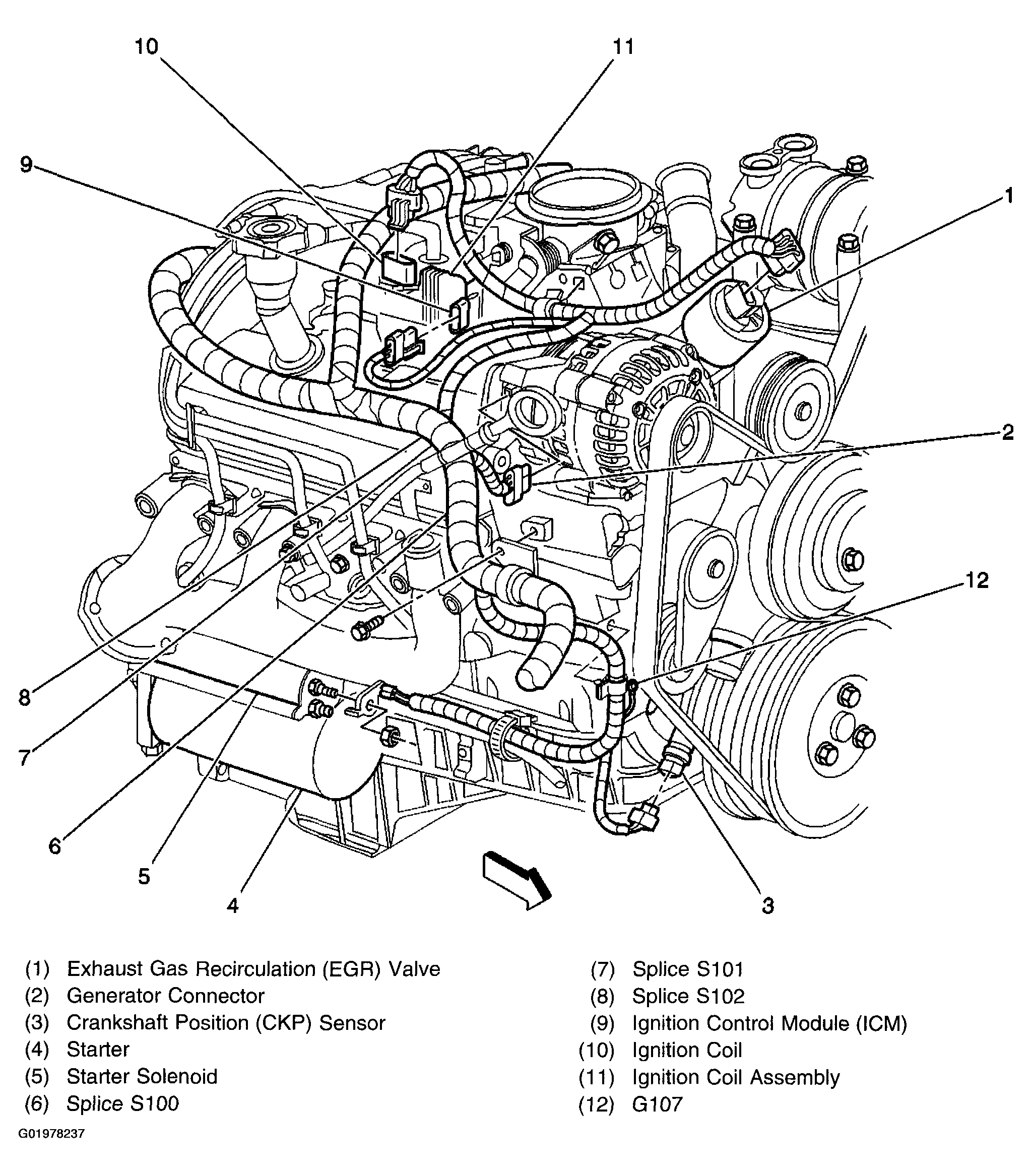

Fig 4: Identifying Engine Generator and Starter (4.3L)

Courtesy of GENERAL MOTORS CORP.

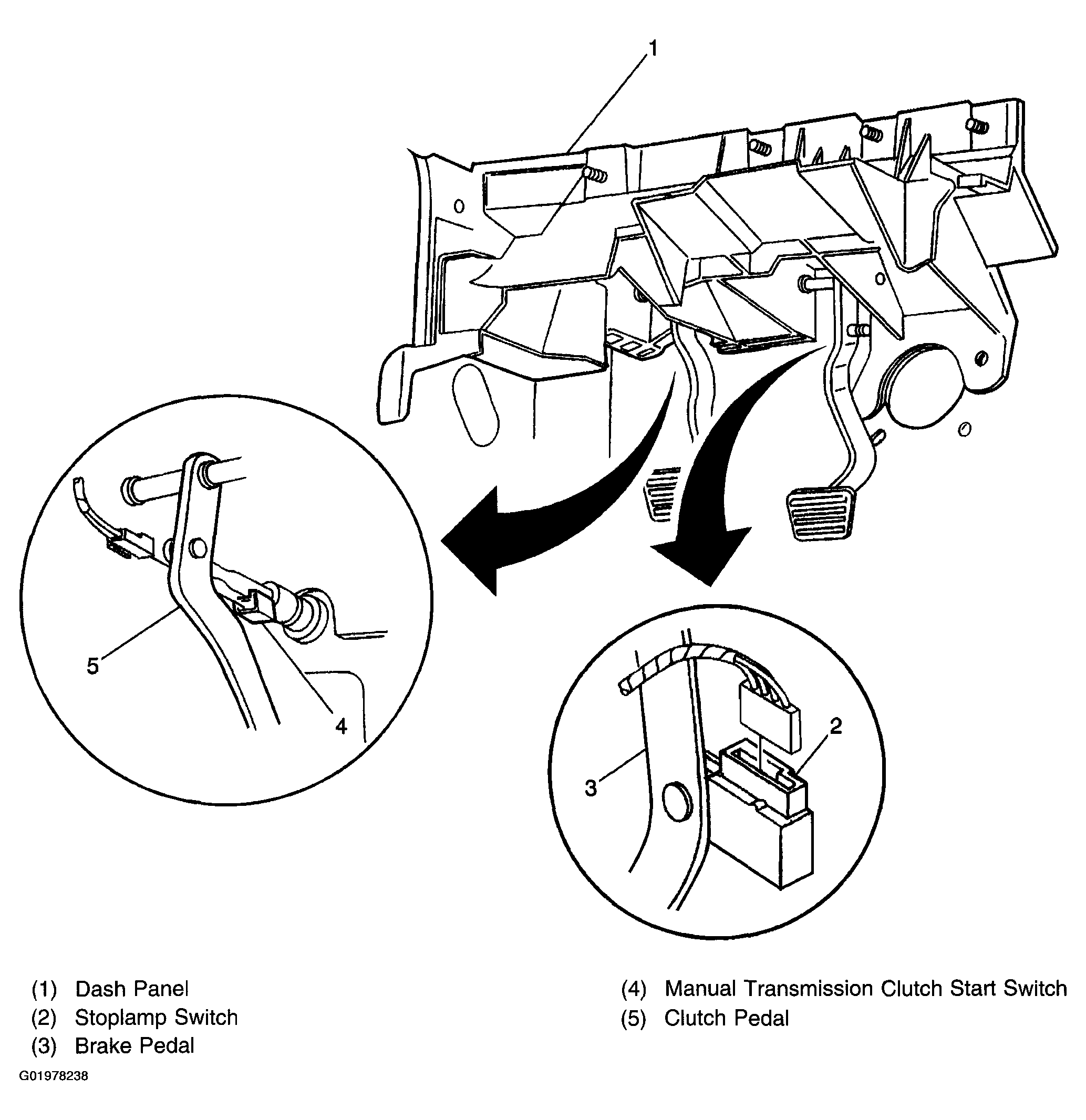

Fig 5: Identifying Floor pedals

Courtesy of GENERAL MOTORS CORP.

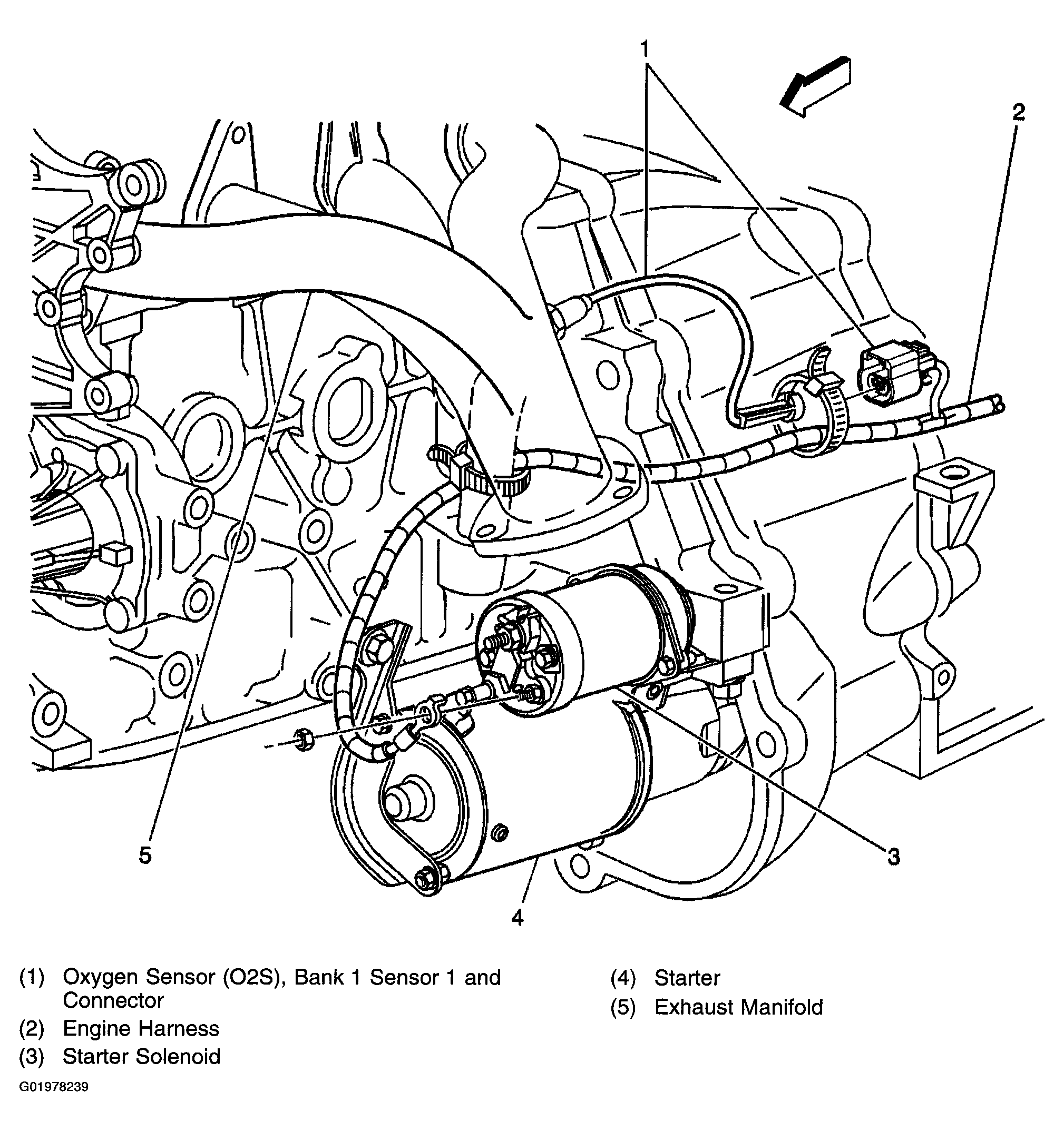

Fig 6: Identifying Oxygen Sensor (O2S)

Courtesy of GENERAL MOTORS CORP.
