Engine Electrical Connector End Views

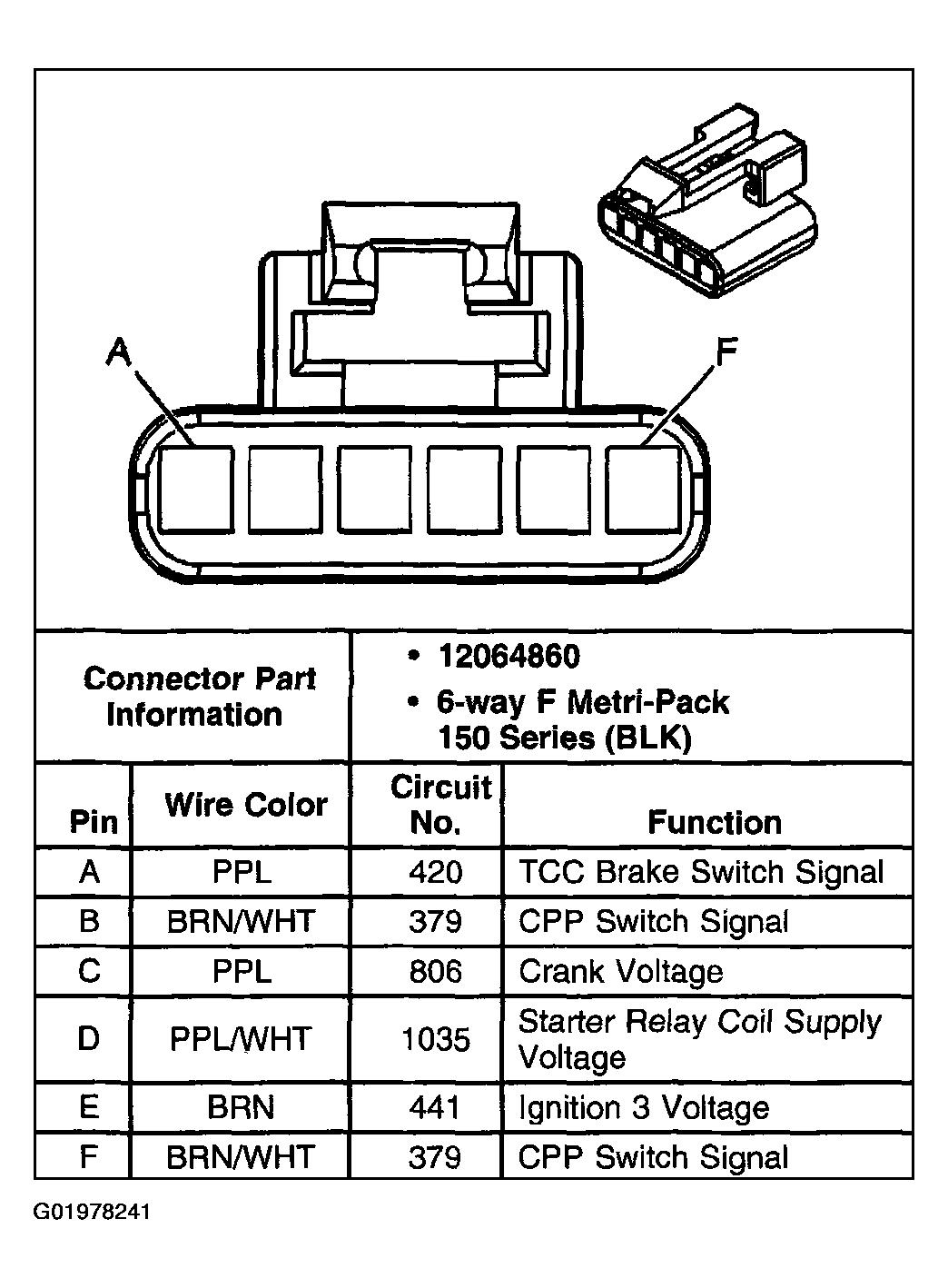

Fig 1: Identifying Clutch Start Switch (2.2L)

Courtesy of GENERAL MOTORS CORP.

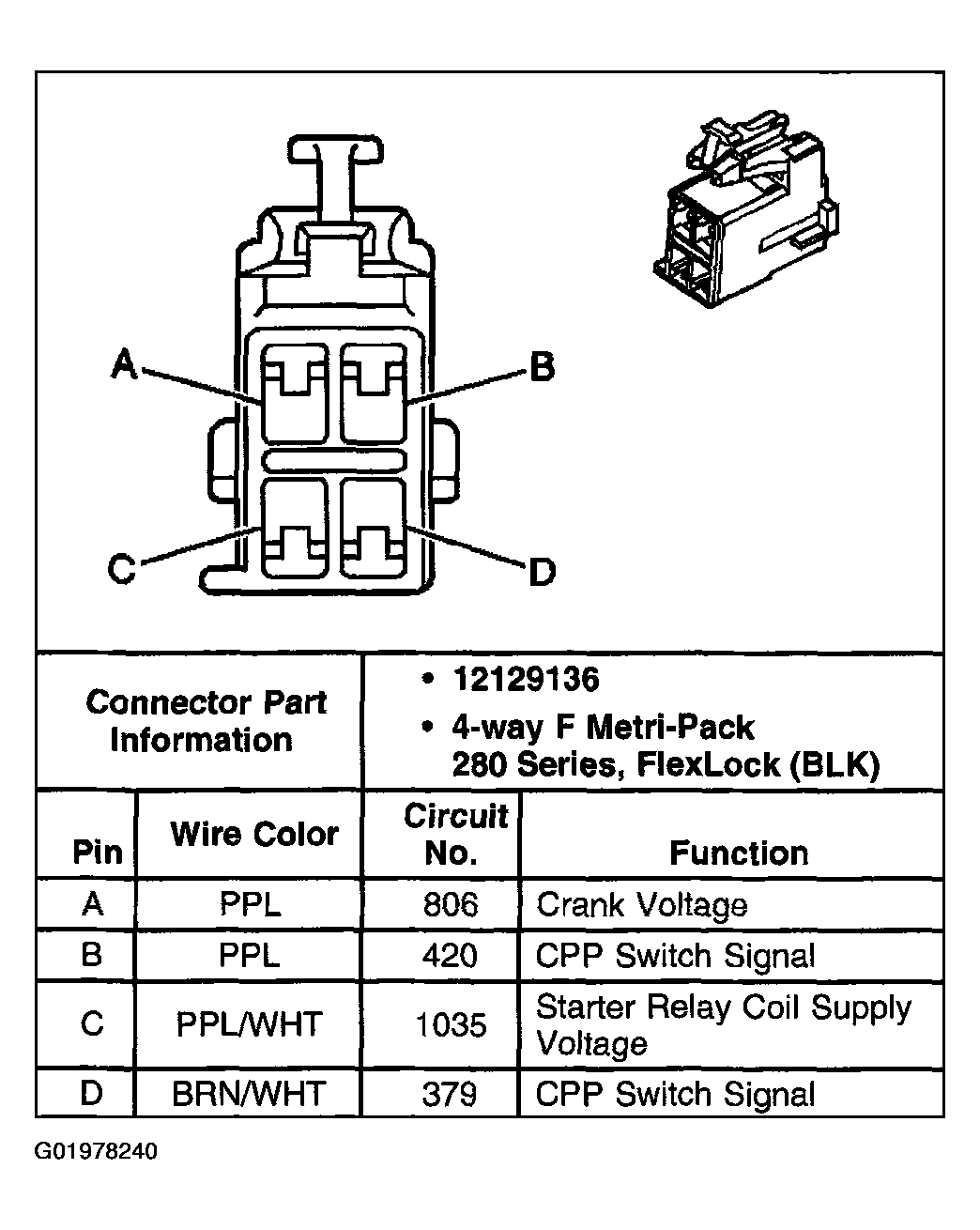

Fig 2: Identifying Clutch Start Switch (4.3L)

Courtesy of GENERAL MOTORS CORP.

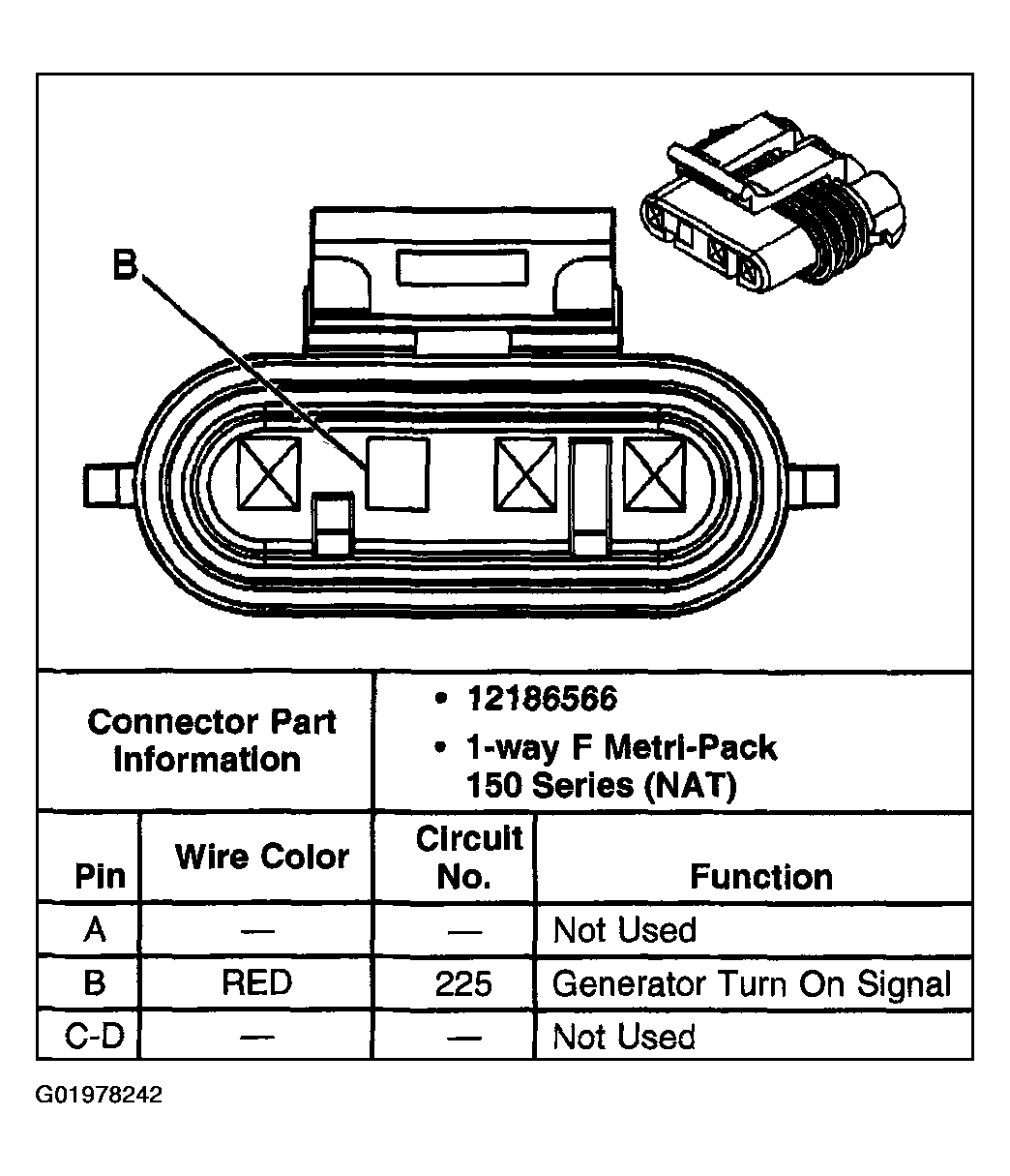

Fig 3: Identifying Generator (2.2L)

Courtesy of GENERAL MOTORS CORP.

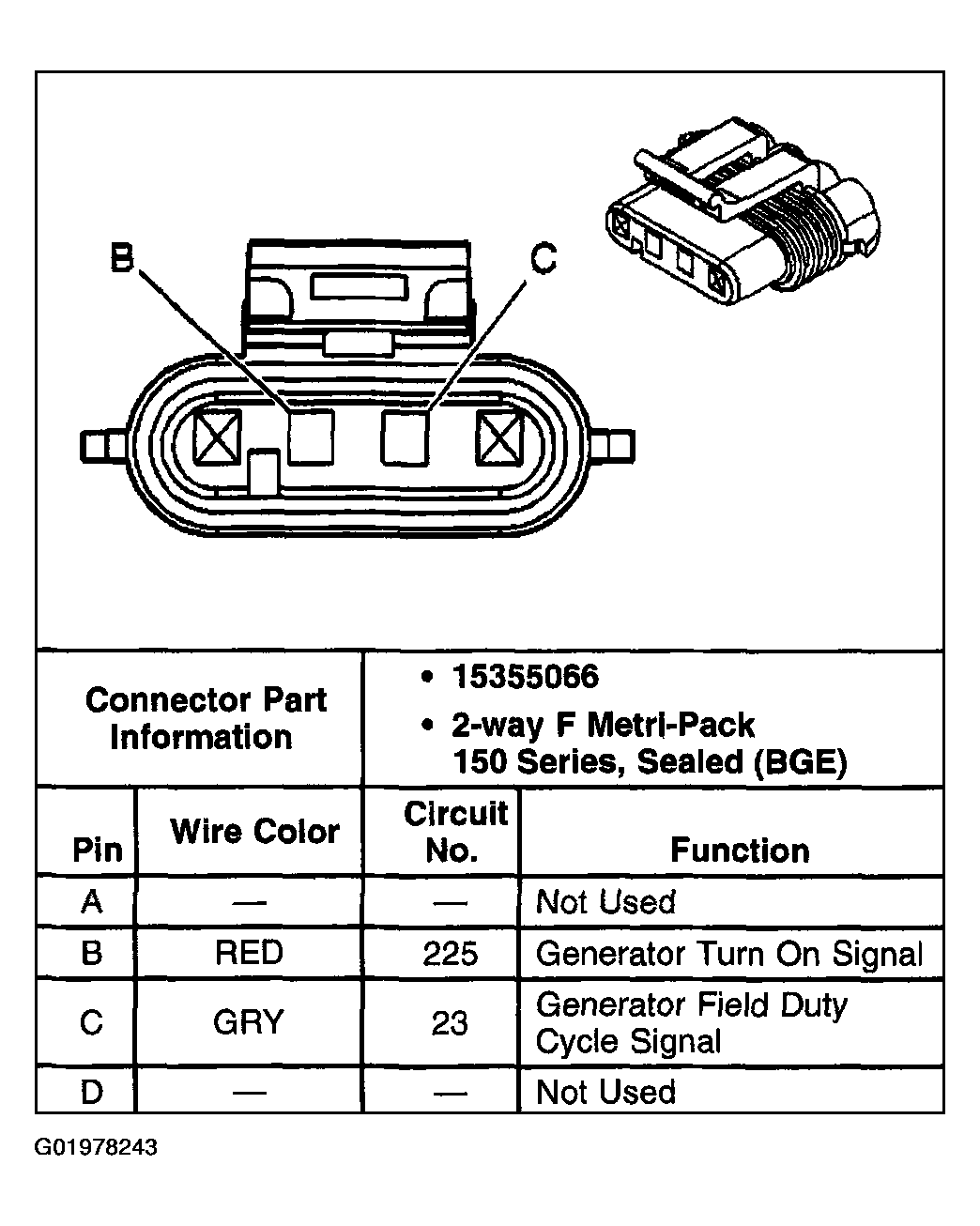

Fig 4: Identifying Generator (4.3L)

Courtesy of GENERAL MOTORS CORP.
