Automatic Transmission Shift Lock Control Connector End Views

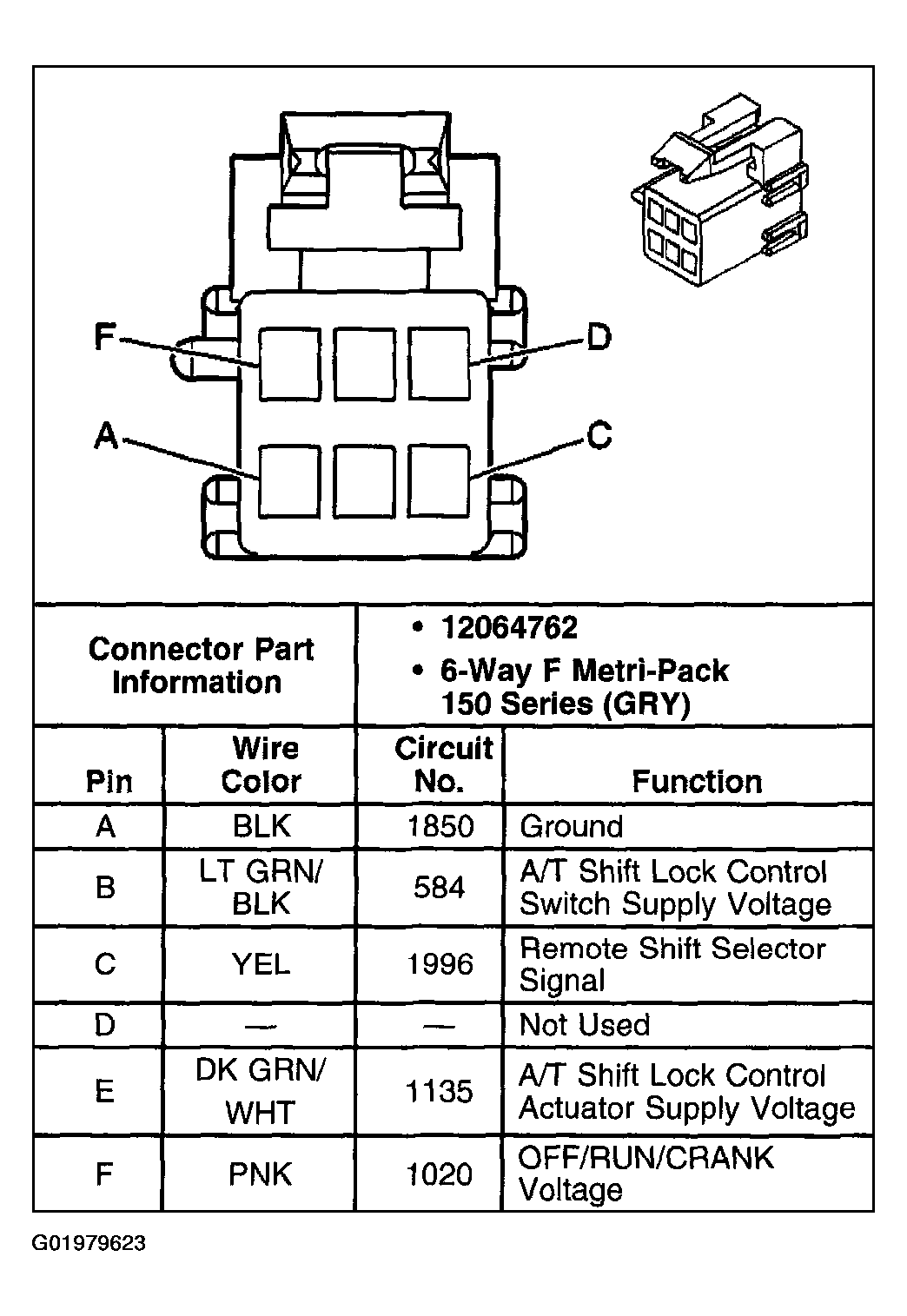

Fig 1: Automatic Transmission Shift Lock Actuator (W/ Floor Shift)
G01979623Courtesy of GENERAL MOTORS CORP.

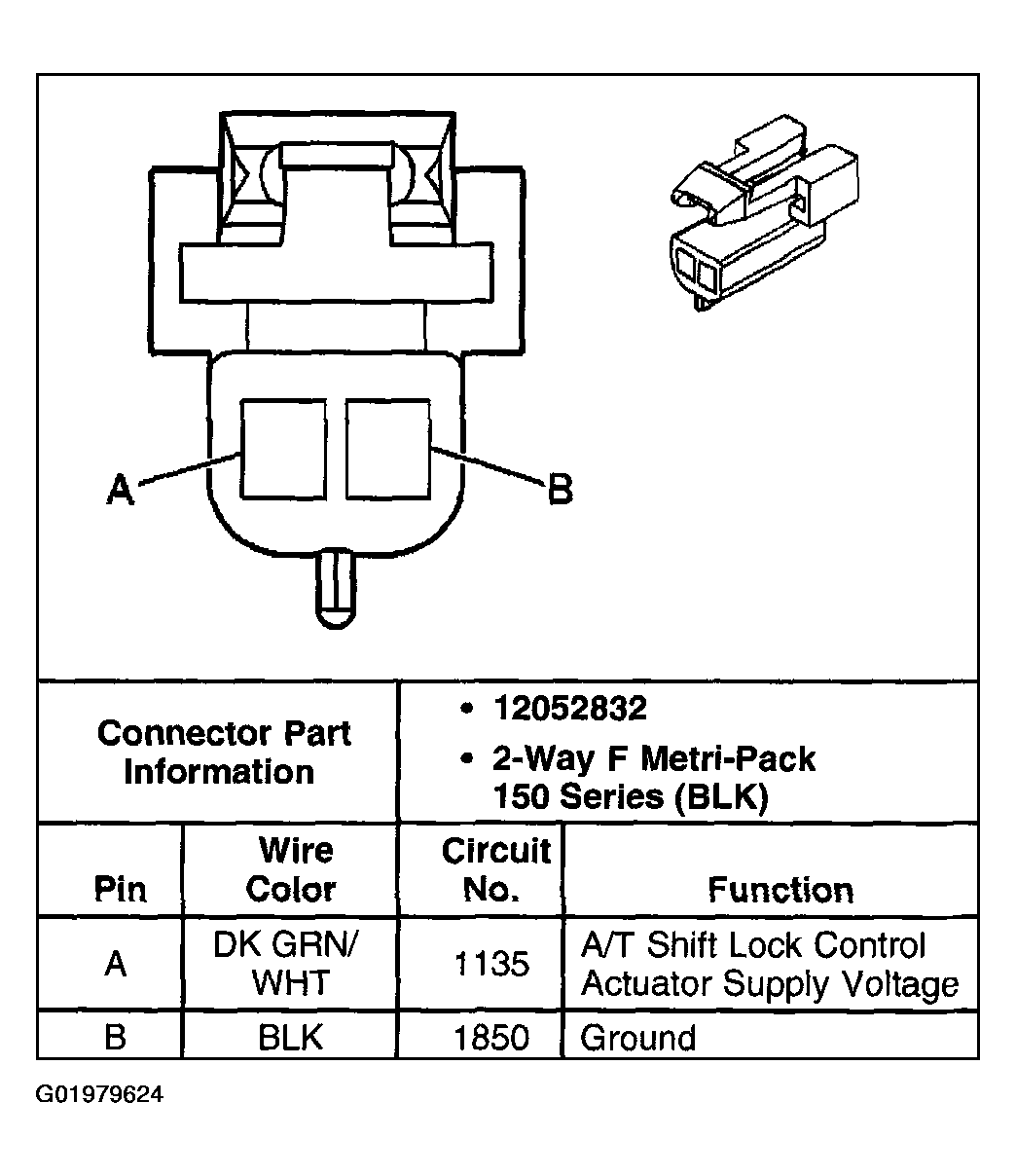

Fig 2: Automatic Transmission Shift Lock Actuator (W/ Column Shift)
G01979624Courtesy of GENERAL MOTORS CORP.

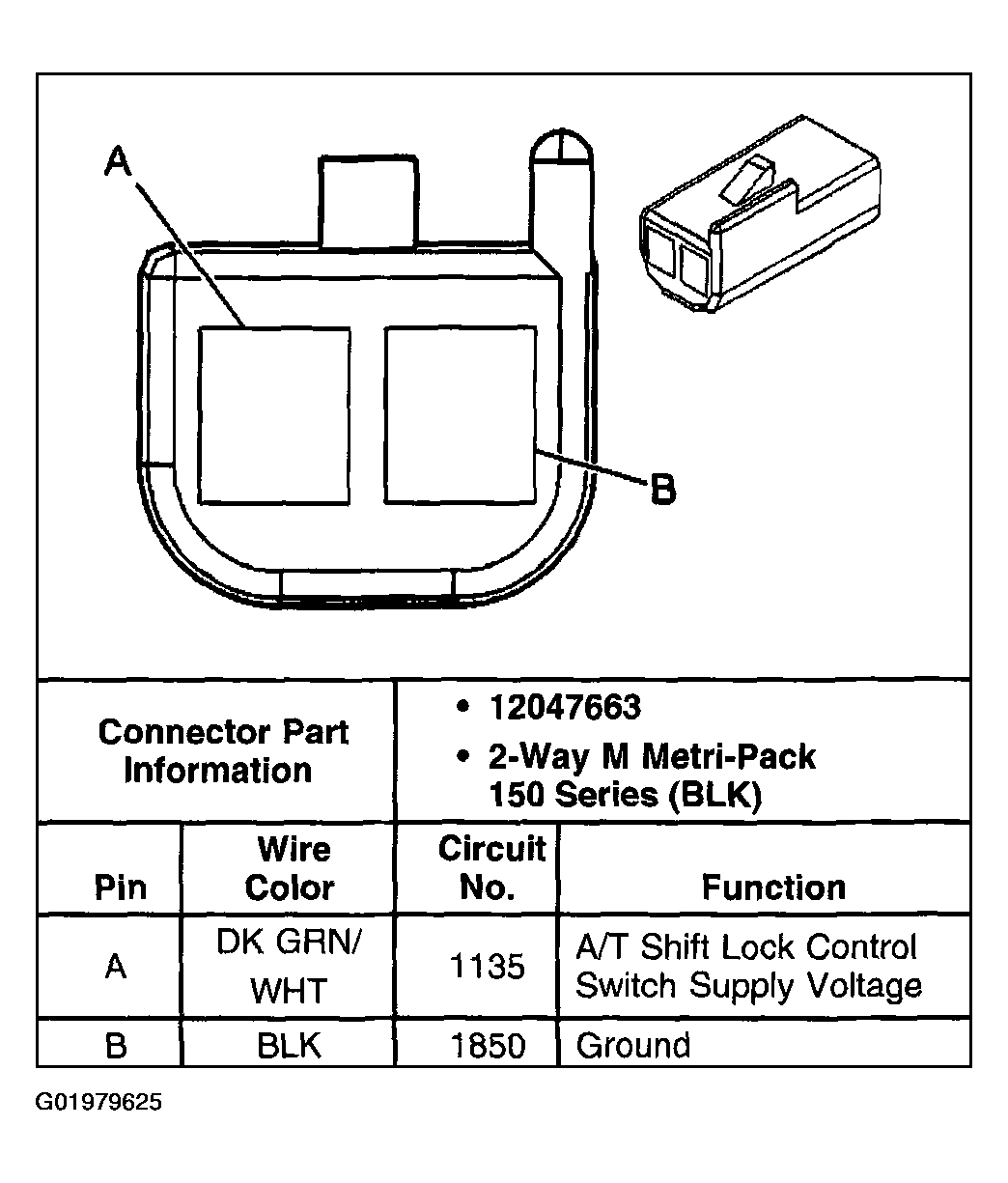

Fig 3: Ignition Lock Cylinder Control Actuator (W/ Floor Shift)
G01979625Courtesy of GENERAL MOTORS CORP.

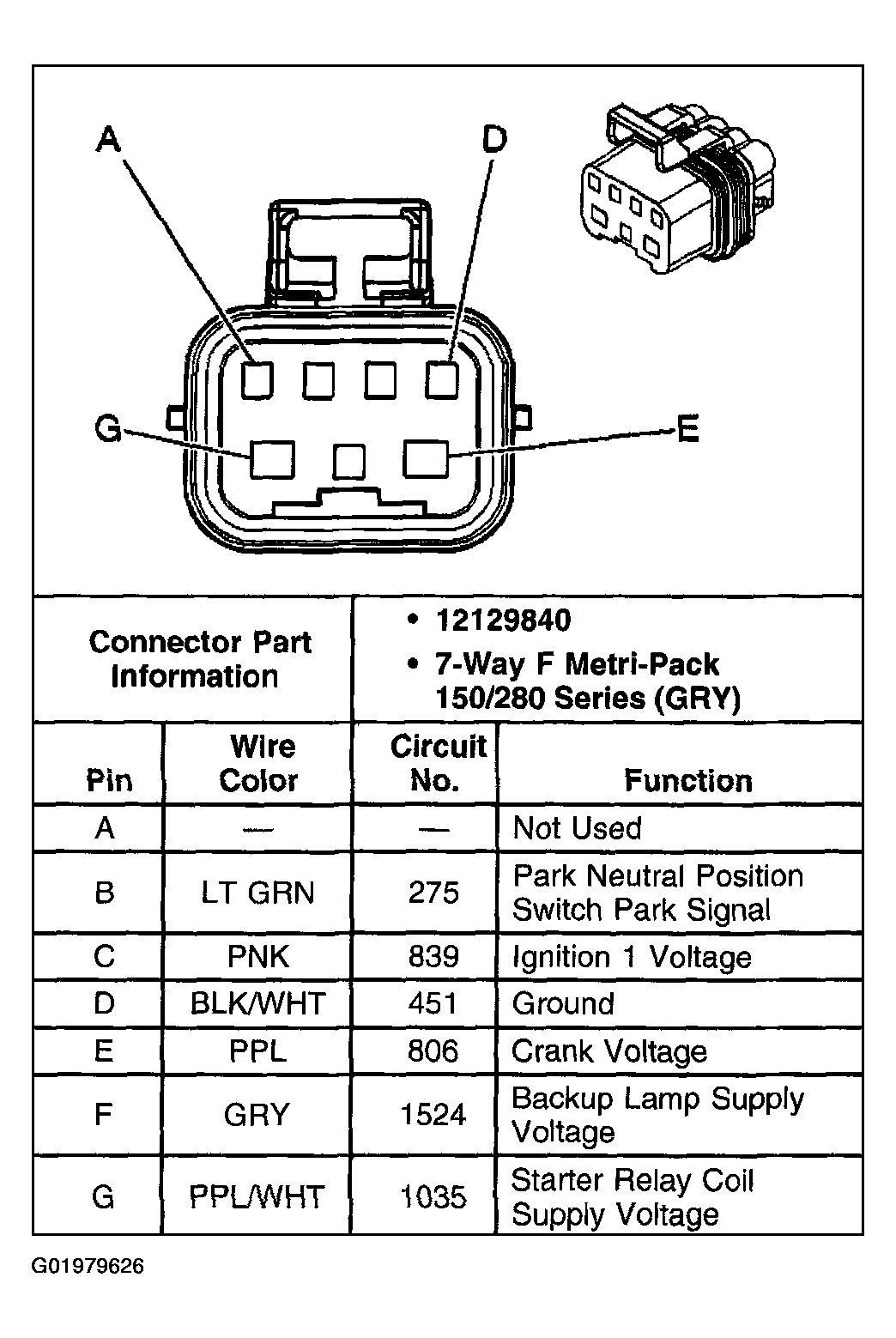

Fig 4: Park/Neutral Position (PNP) Switch C1
G01979626Courtesy of GENERAL MOTORS CORP.

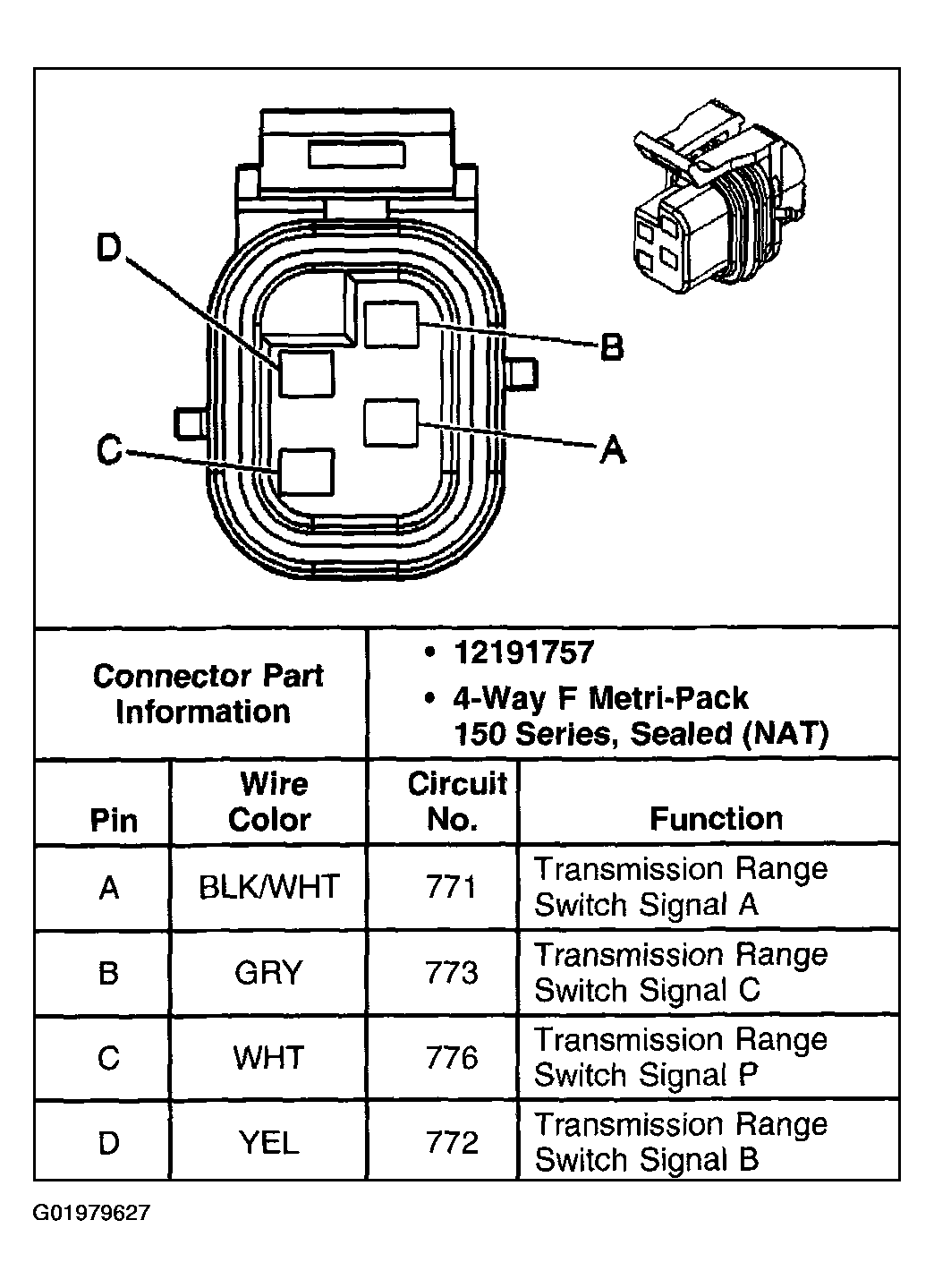

Fig 5: Park/Neutral Position (PNP) Switch C2
G01979627Courtesy of GENERAL MOTORS CORP.
