Automatic Transmission Shift Lock Control Schematics

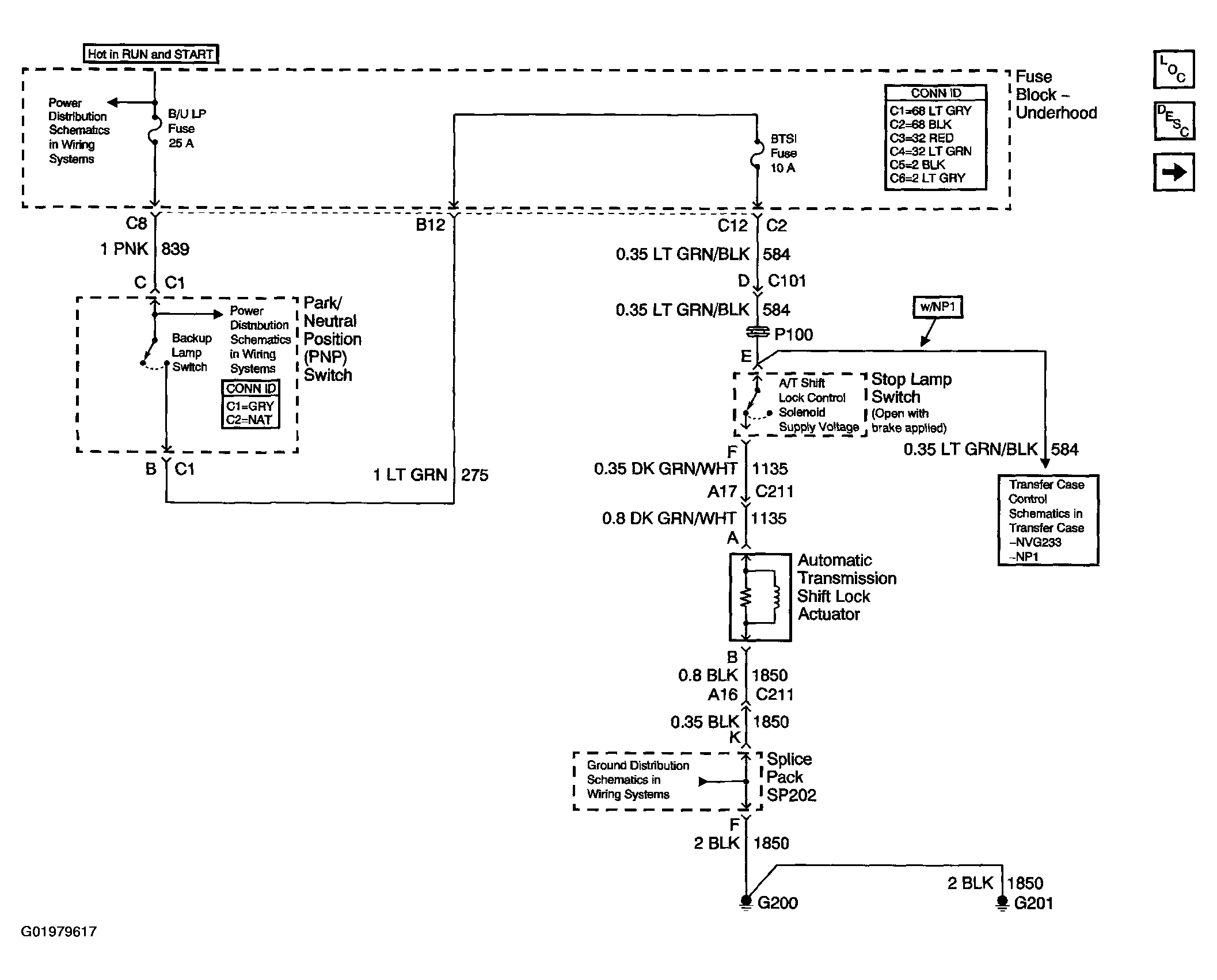

Fig 1: Automatic Transmission Shift Lock Control Schematics (PNP Switch & A/T Shift Lock Actuator - Pickup W/ Column Shift)
G01979617Courtesy of GENERAL MOTORS CORP.

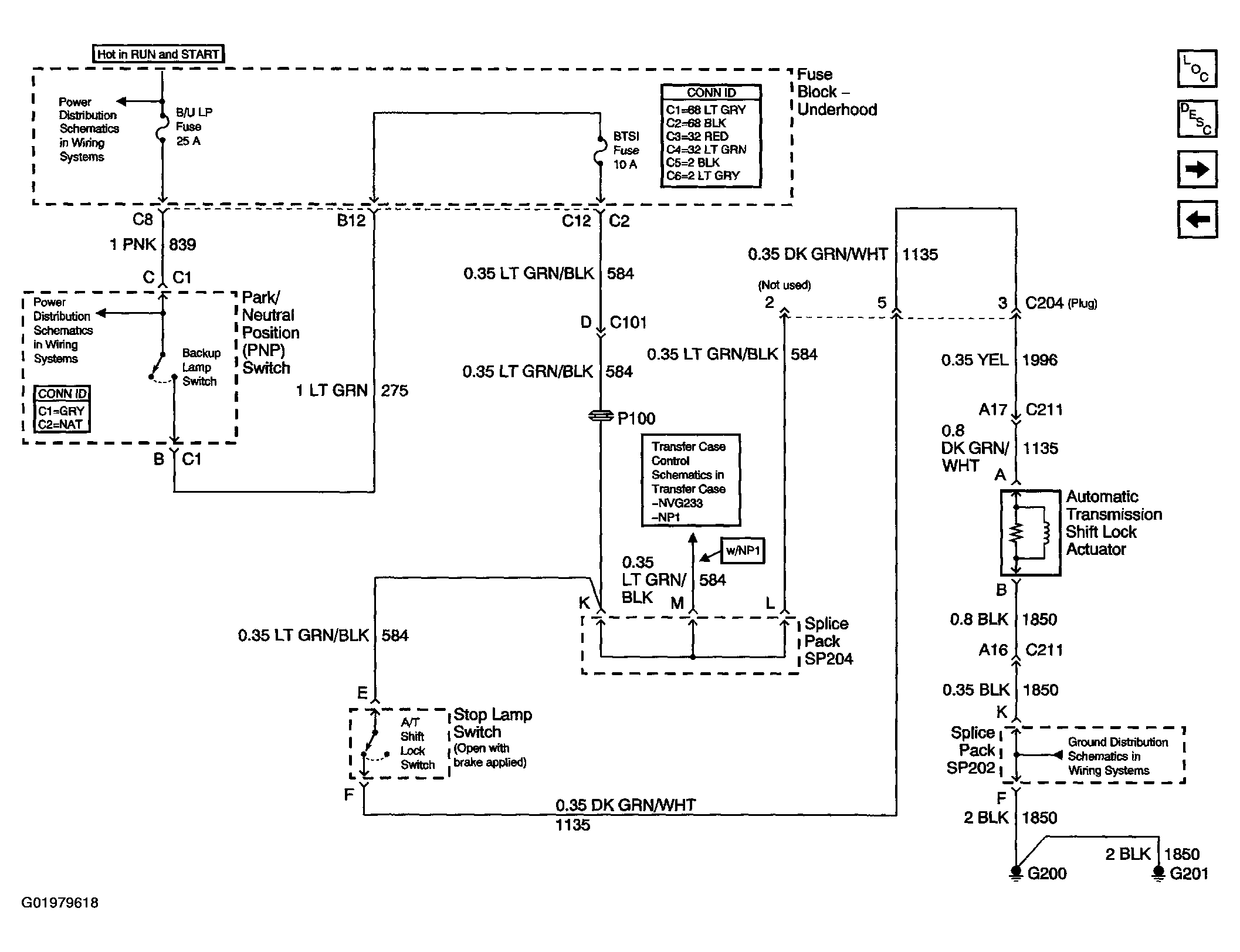

Fig 2: Automatic Transmission Shift Lock Control Schematics (PNP Switch & A/T Shift Lock Actuator - Crew Cab & Utility W/ Column Shift)
G01979618Courtesy of GENERAL MOTORS CORP.

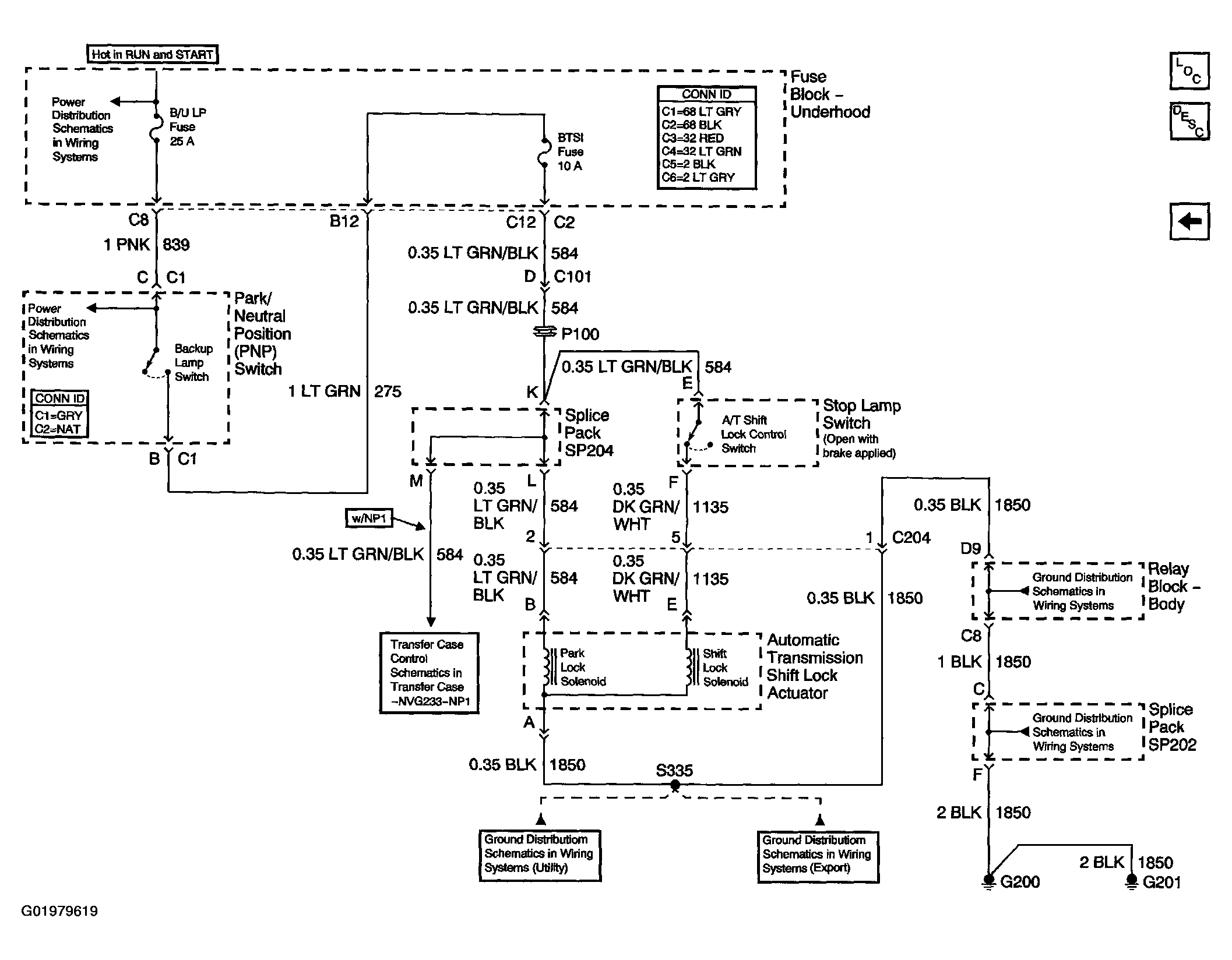

Fig 3: Automatic Transmission Shift Lock Control Schematics (PNP Switch & A/T Shift Lock Actuator - Utility W/ Floor Shift)
G01979619Courtesy of GENERAL MOTORS CORP.
