Steering Controls Component Views
WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Telescoping Sensor |
| 2 |
Steering Column Lock |
| 3 |
C219 |
| 4 |
C207 |
| 5 |
C211 |
| 6 |
C217 |
| 7 |
C209 |
| 8 |
Steering Wheel Position Sensor |
| 9 |
Telescoping Drive Motor |
| 10 |
C210 |

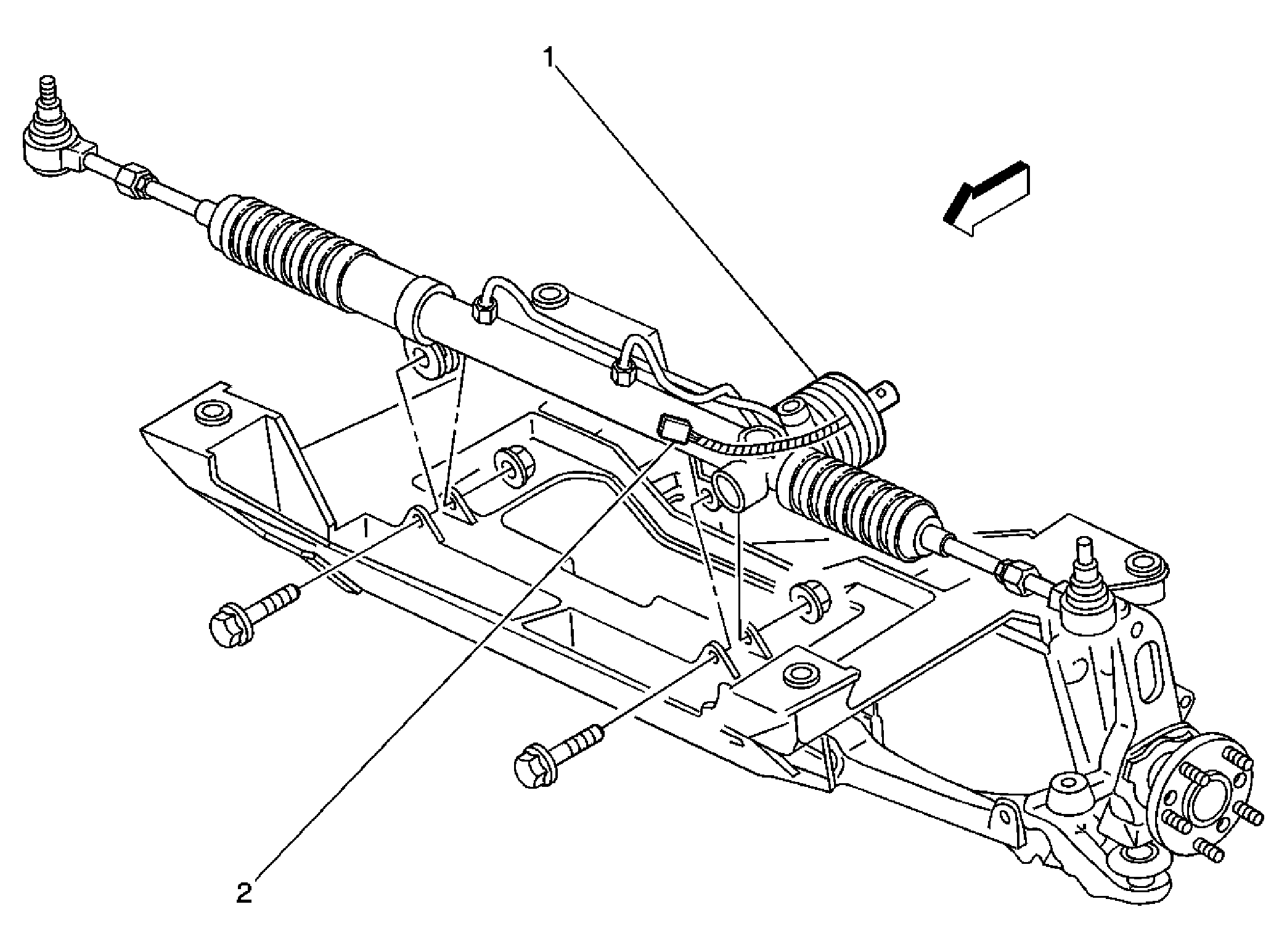

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Variable Effort Steering Actuator |
| 2 |
Variable Effort Steering Actuator Connector |
