Fasten Safety Belt Indicator/Chime Always On

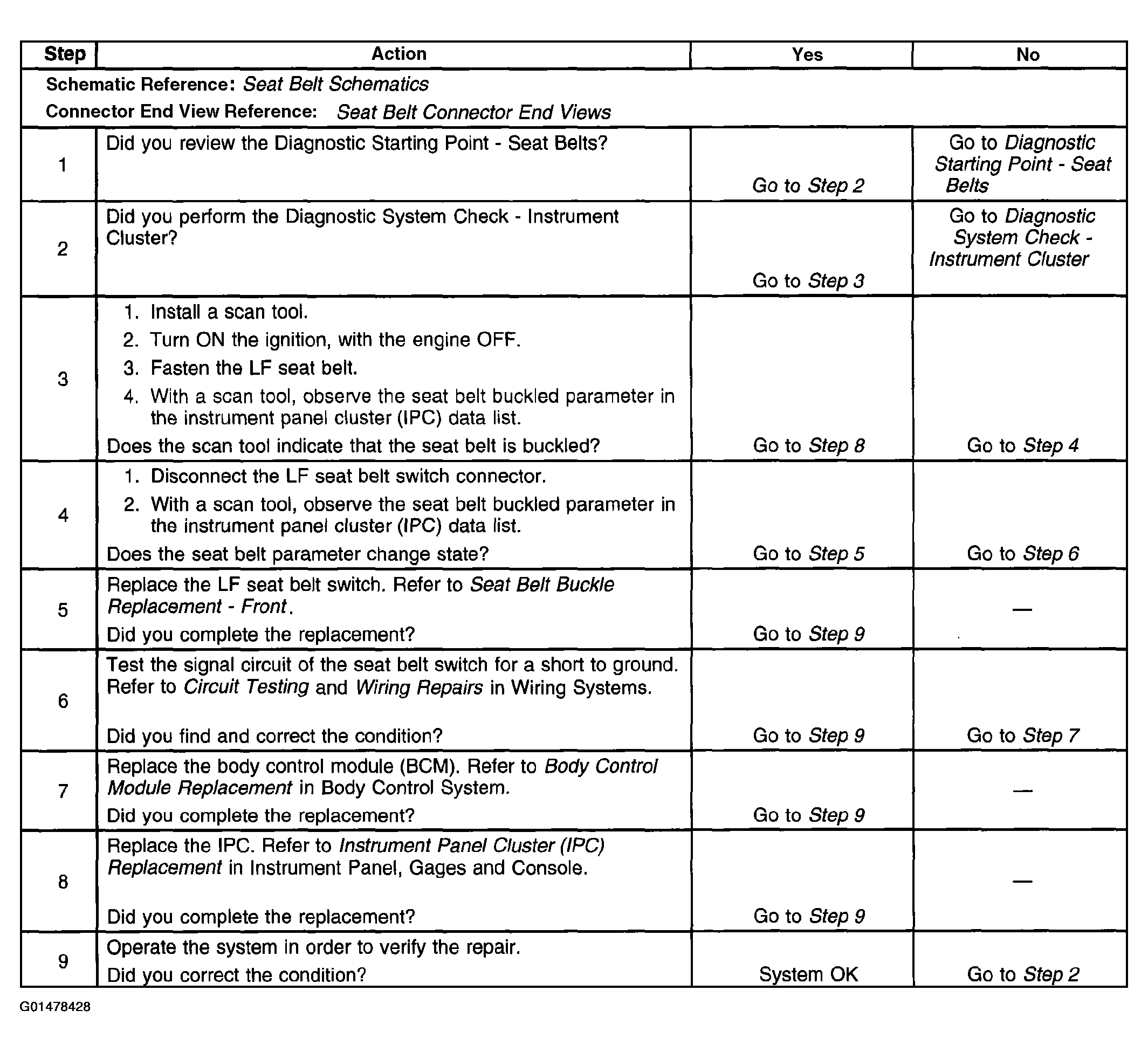

Fig 1: Fasten Safety Belt Indicator/Chime Always On Chart
G01478428Courtesy of GENERAL MOTORS CORP.
