Power Steering Gear Disassembled View (700 Gear)

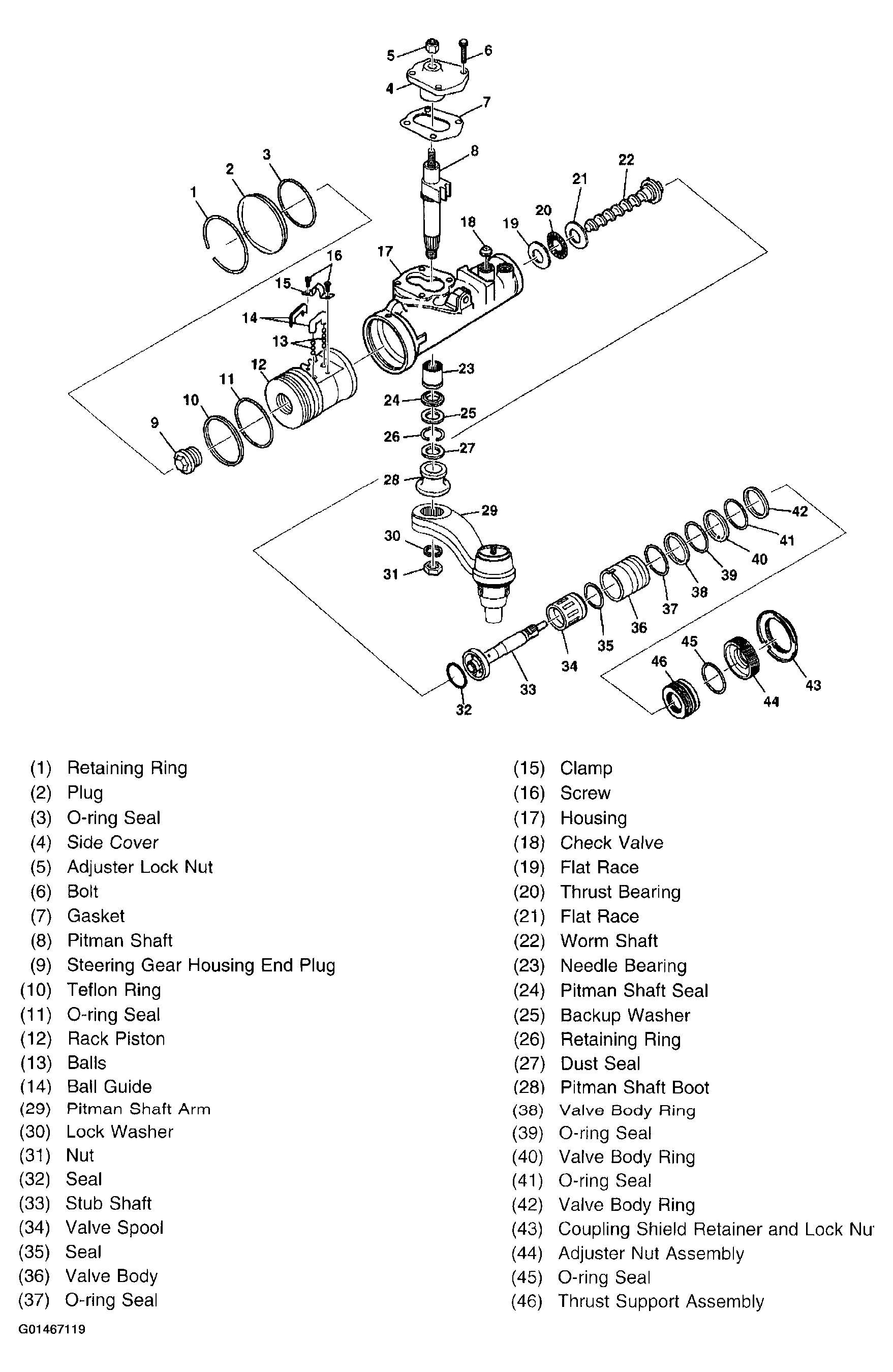

Fig 1: Power Steering Gear
G01467119Courtesy of GENERAL MOTORS CORP.
