Transfer Case Control Component Views

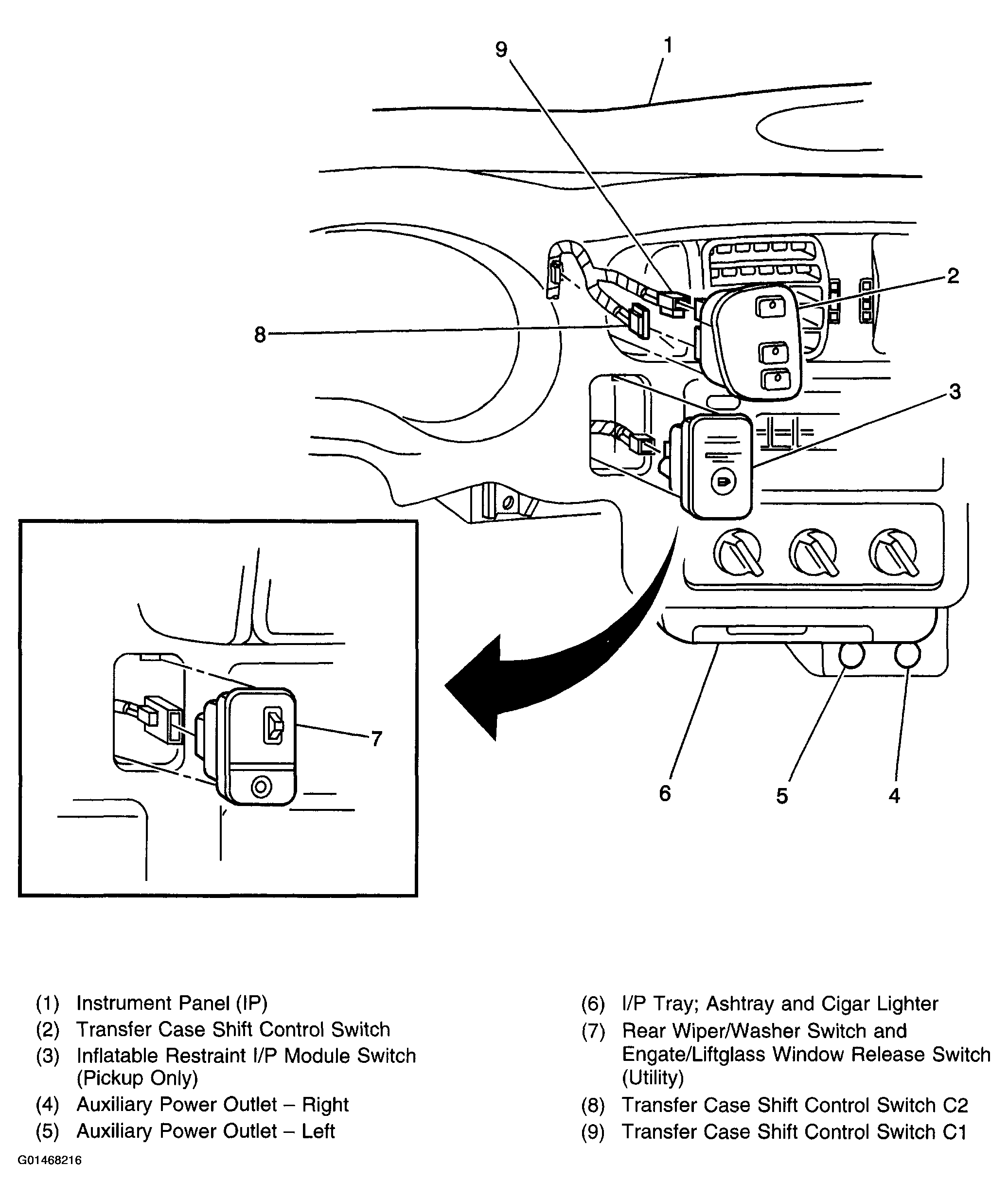

Fig 1: IP Center Switch Component View
G01468216Courtesy of GENERAL MOTORS CORP.

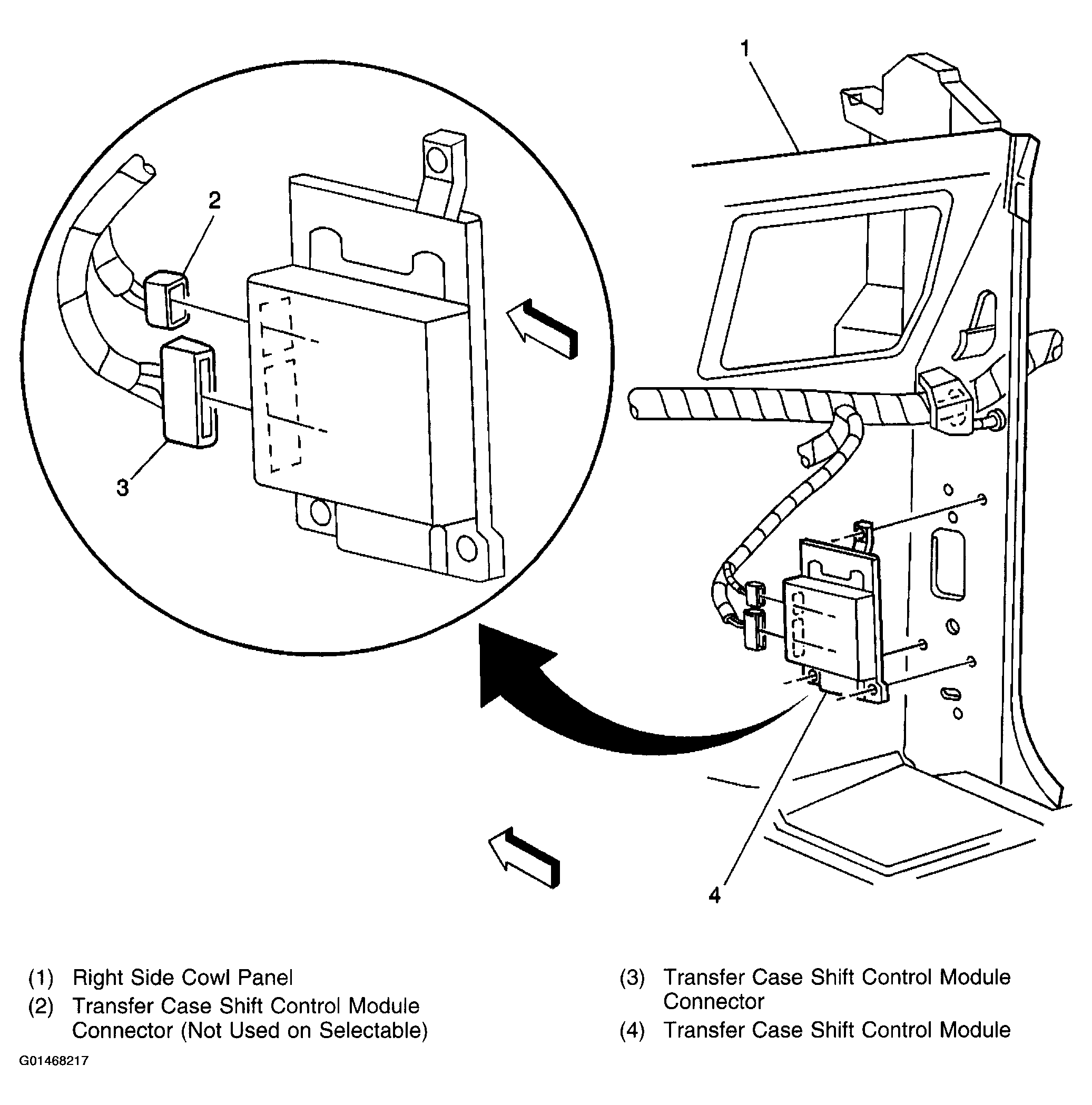

Fig 2: Transfer Case Shift Control Module Component View
G01468217Courtesy of GENERAL MOTORS CORP.

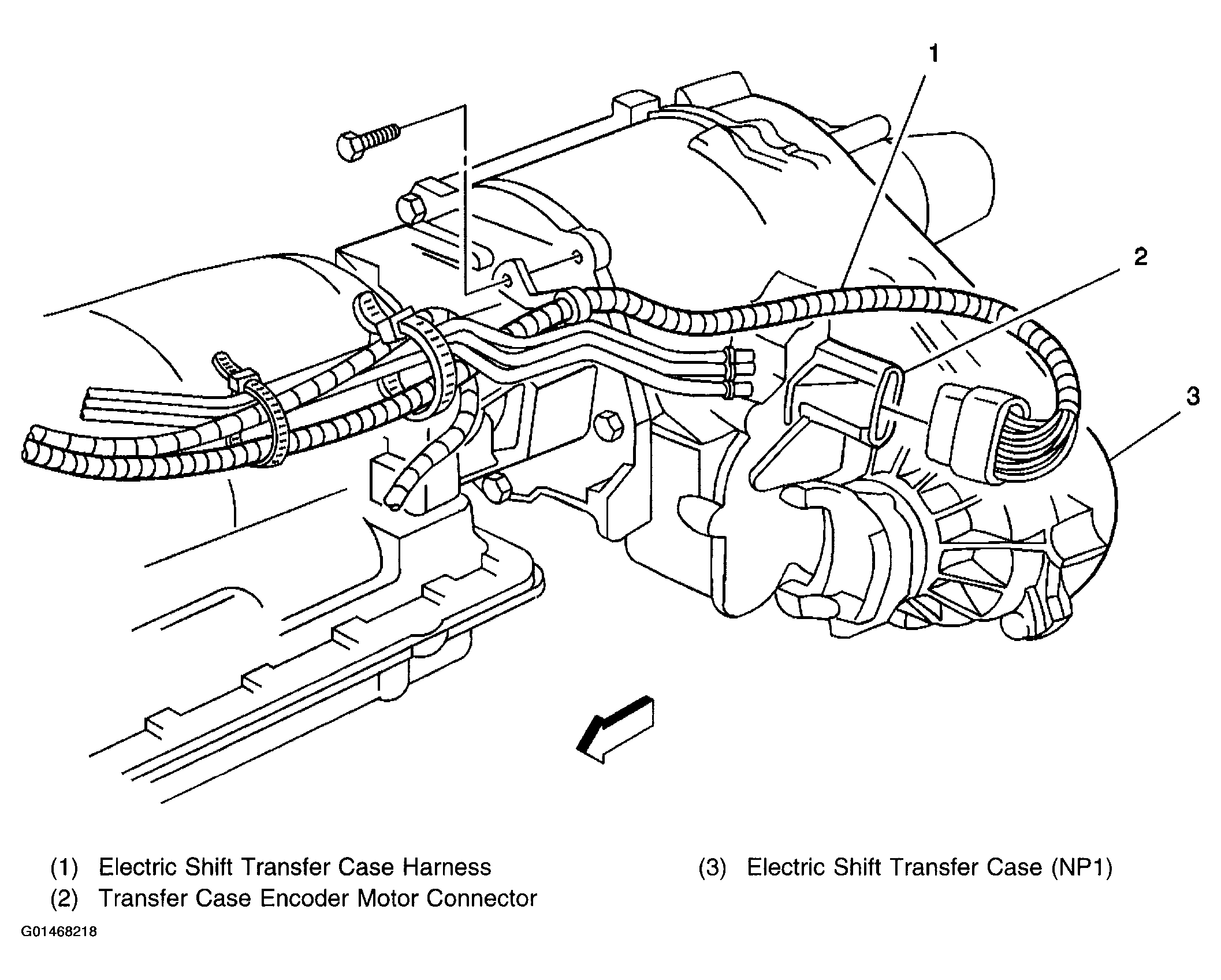

Fig 3: Transfer Case (NP1) Harness Routing View
G01468218Courtesy of GENERAL MOTORS CORP.

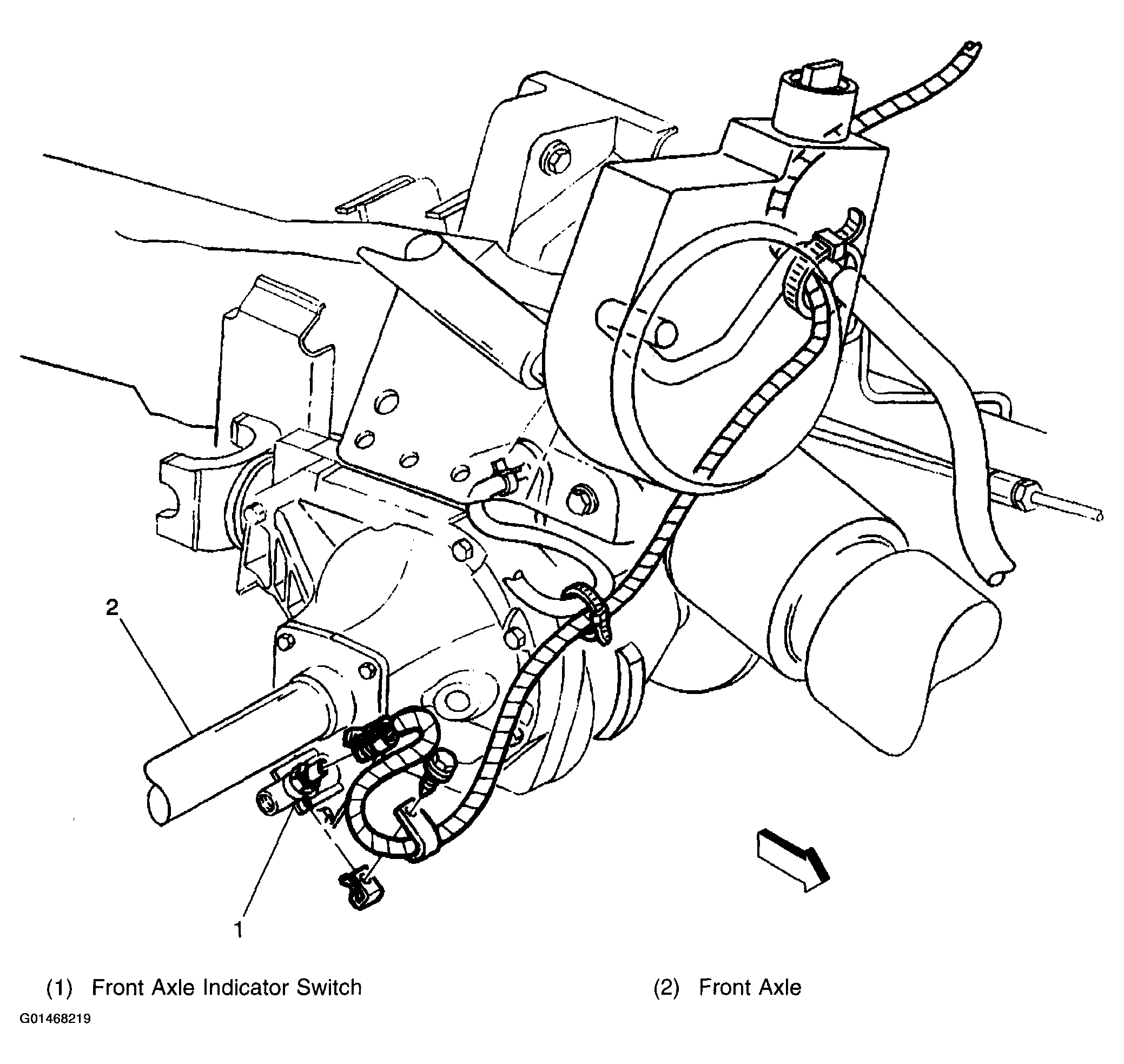

Fig 4: Front Axle Switch Component View
G01468219Courtesy of GENERAL MOTORS CORP.
