Wiper/Washer System Component Views

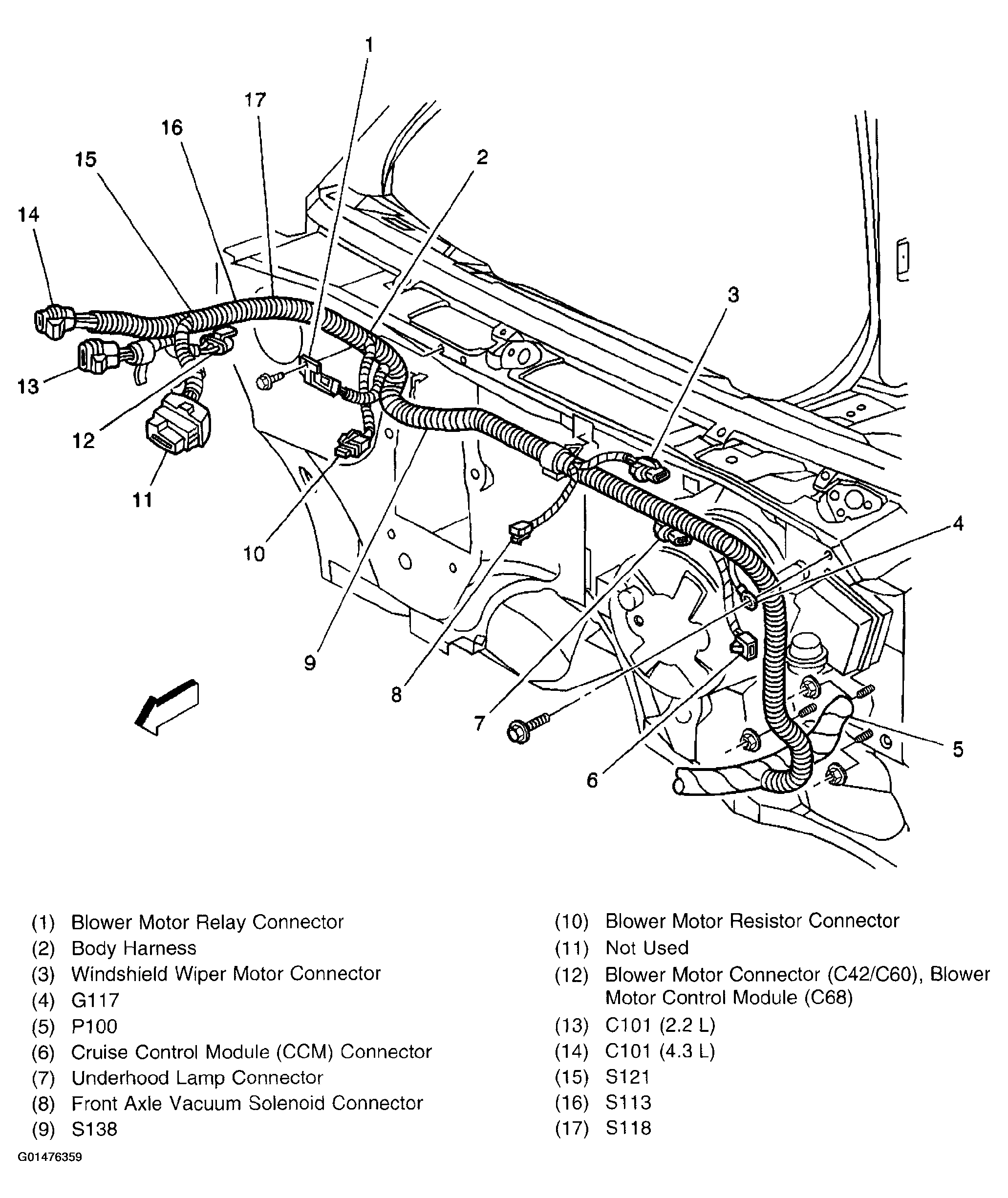

Fig 1: Body Harness To Cowl
G01476359Courtesy of GENERAL MOTORS CORP.

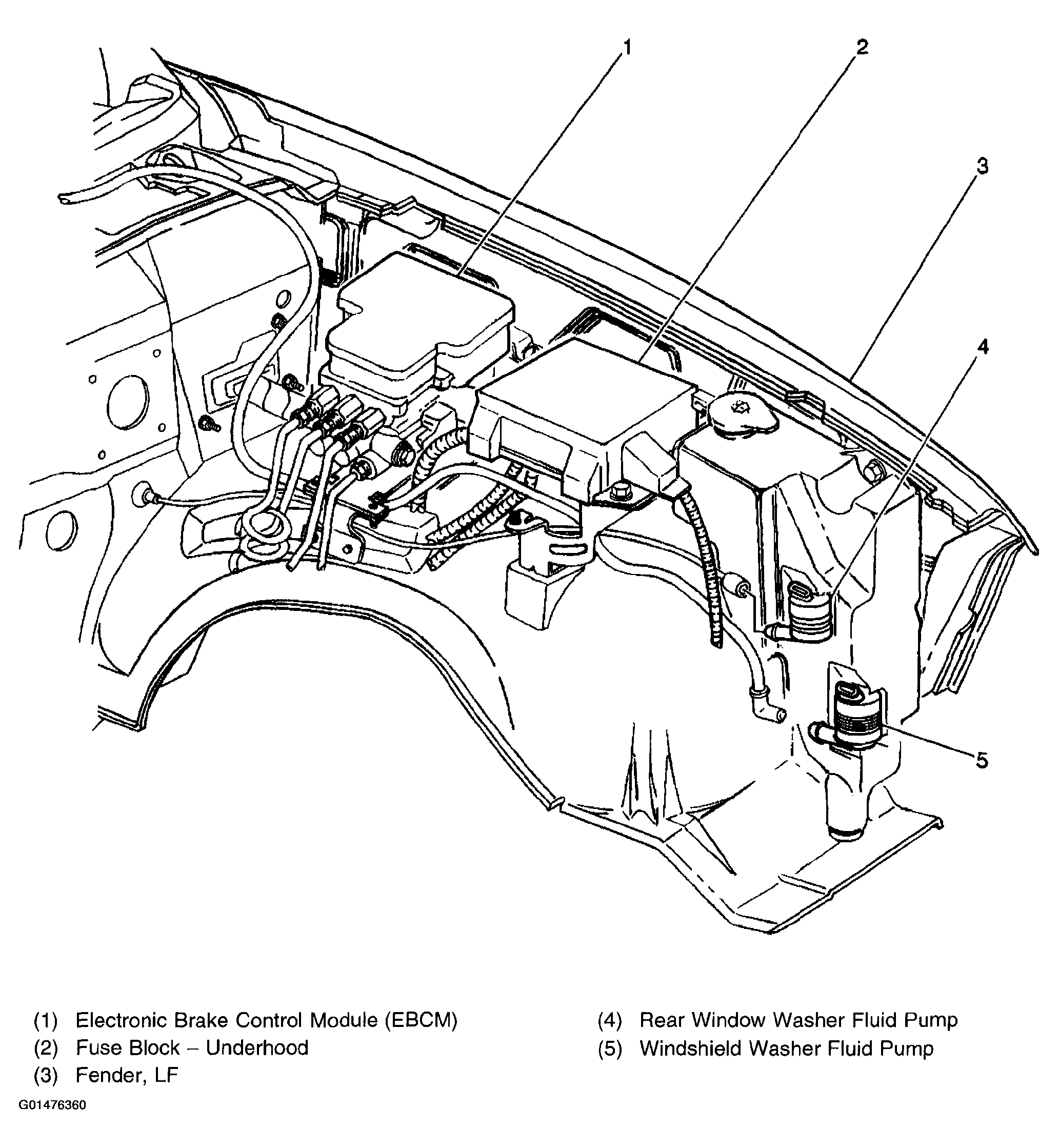

Fig 2: Body Wiring Harness, Left Underhood
G01476360Courtesy of GENERAL MOTORS CORP.

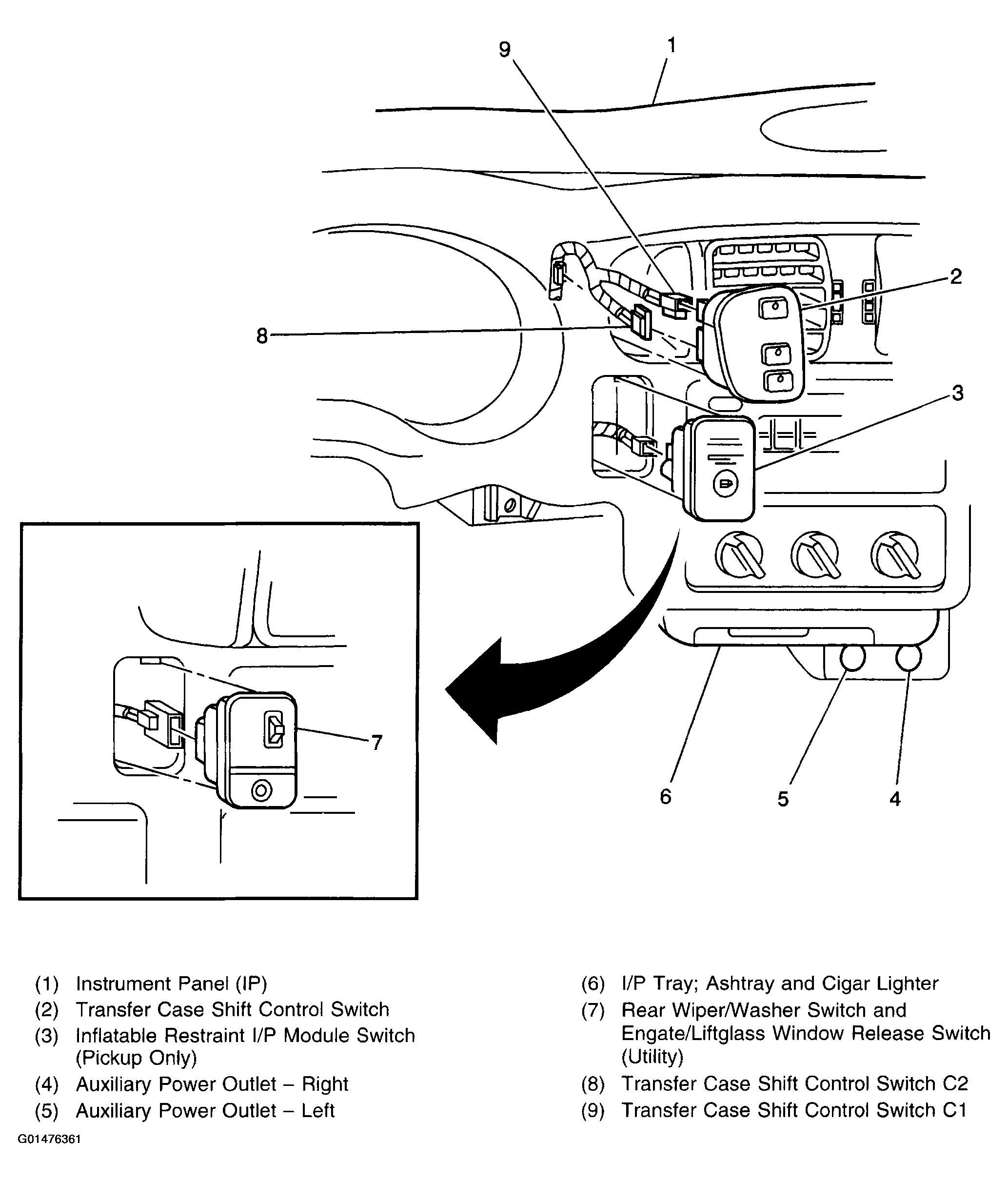

Fig 3: Center I/P Switches
G01476361Courtesy of GENERAL MOTORS CORP.

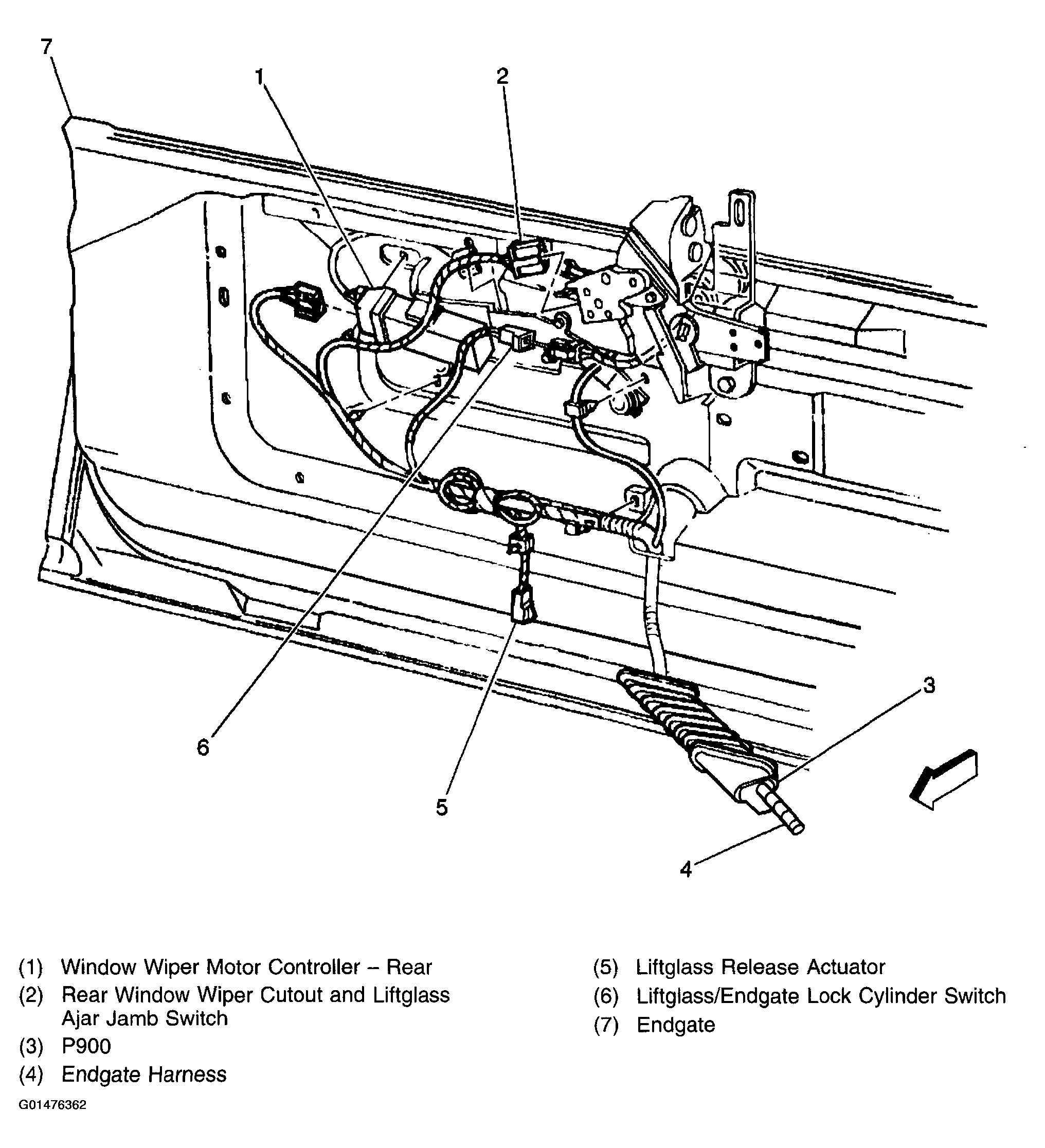

Fig 4: Endgate Harness Routing View
G01476362Courtesy of GENERAL MOTORS CORP.
