Propshaft Speed Sensor Connector End View - Front

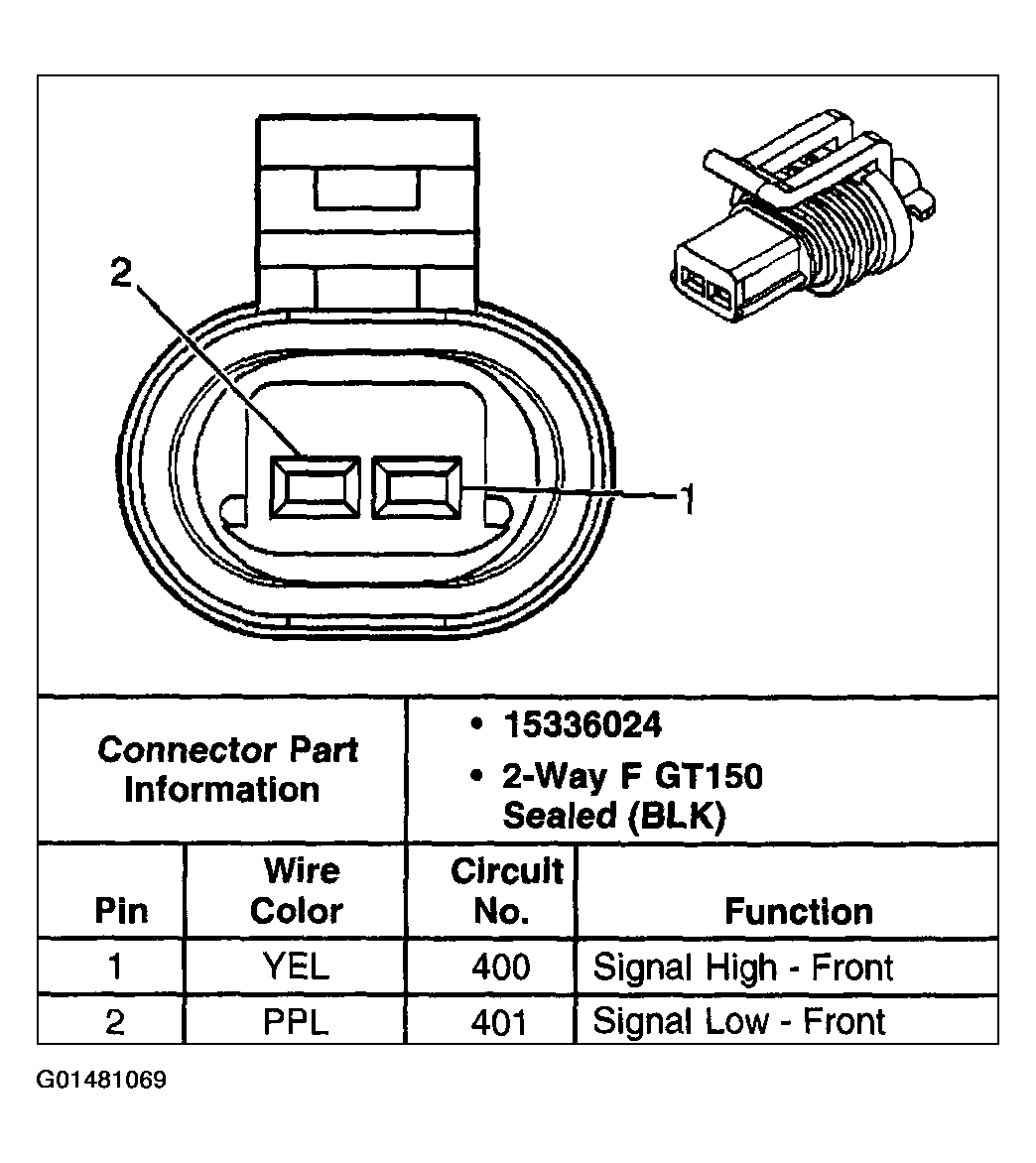

Fig 1: Propshaft Speed Sensor Connector End View - Front
G01481069Courtesy of GENERAL MOTORS CORP.
