Coolant Temperature Sensor/Switch (For Computer): Locations

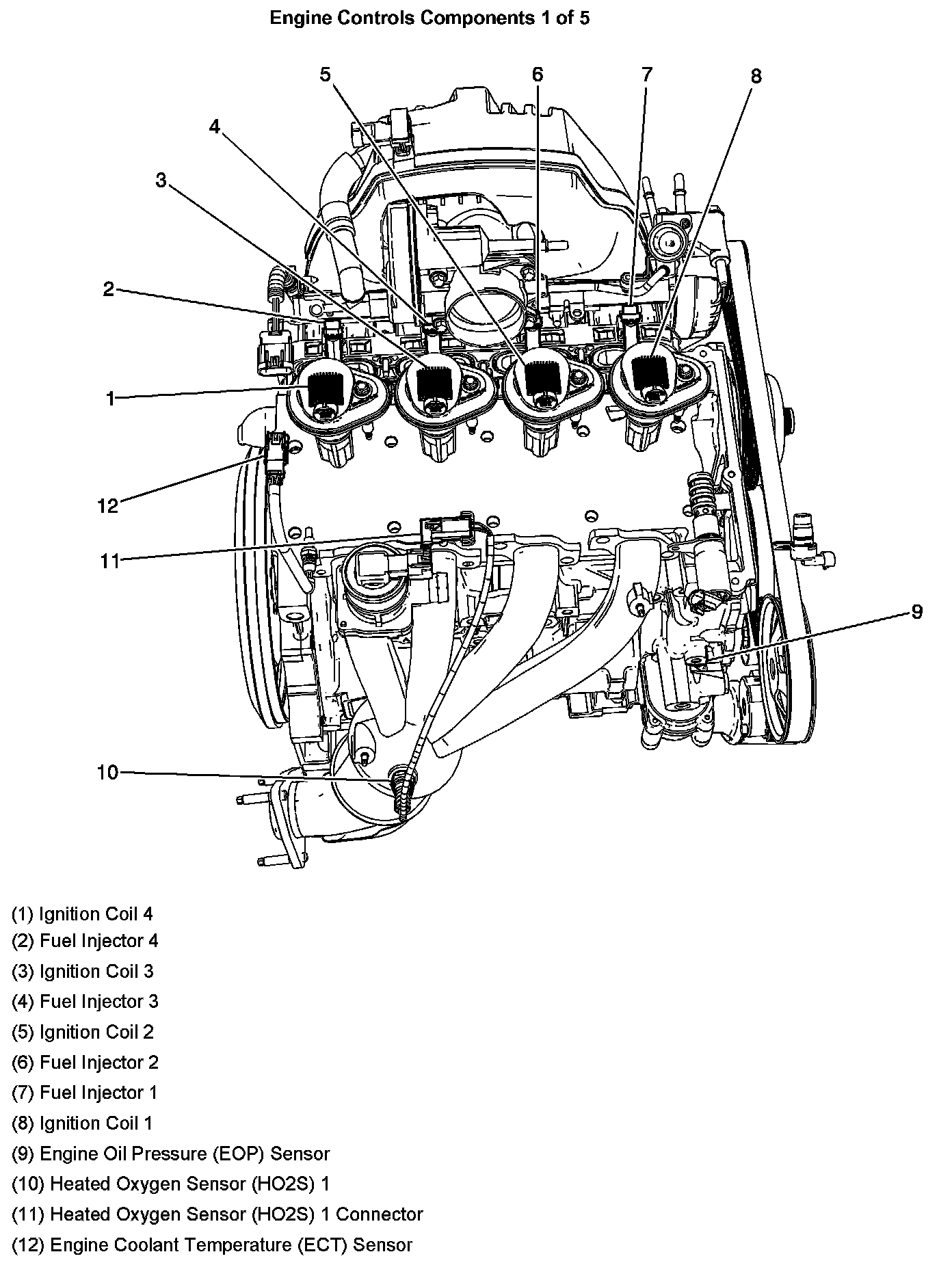

Engine Controls Components:

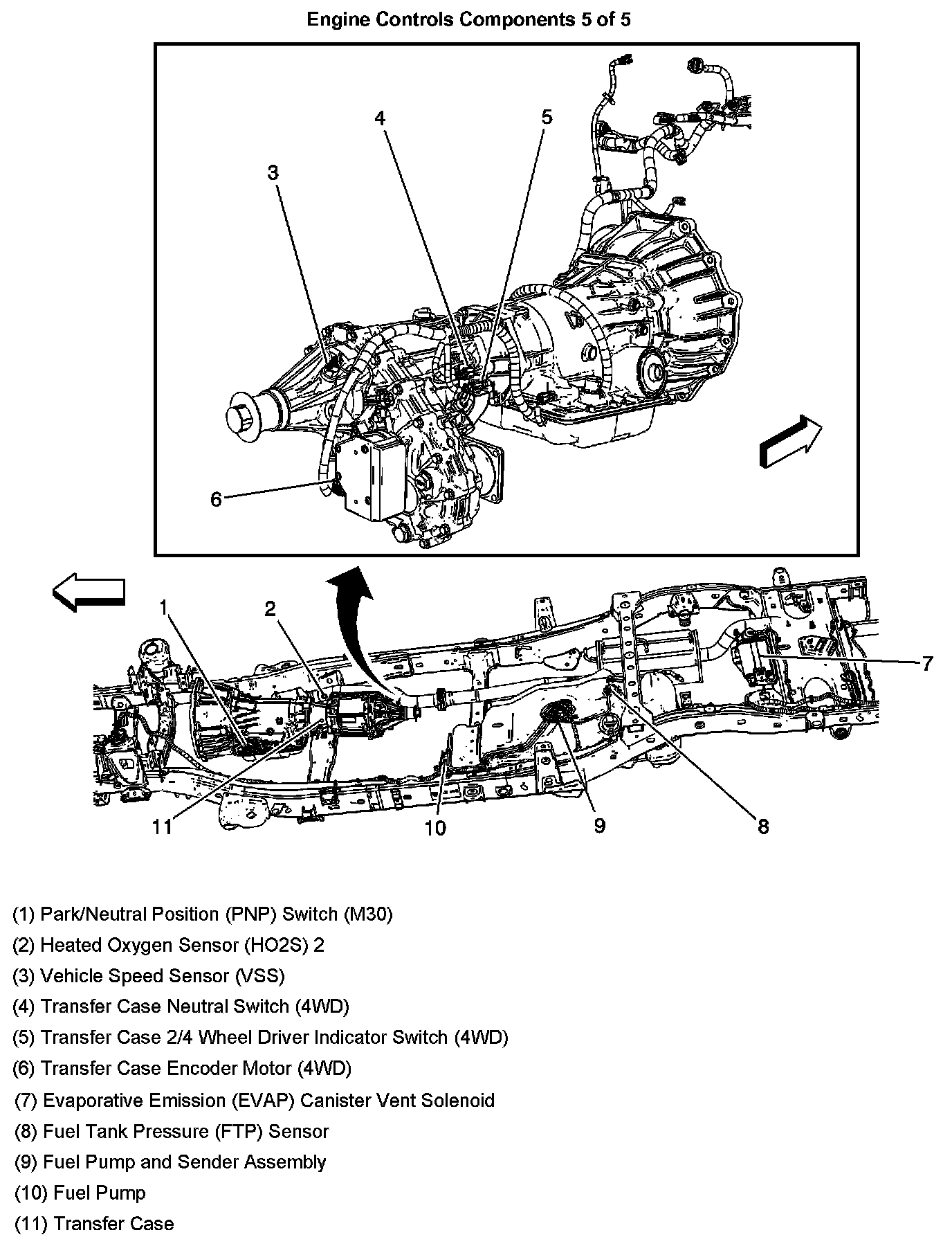

Engine Controls Components:

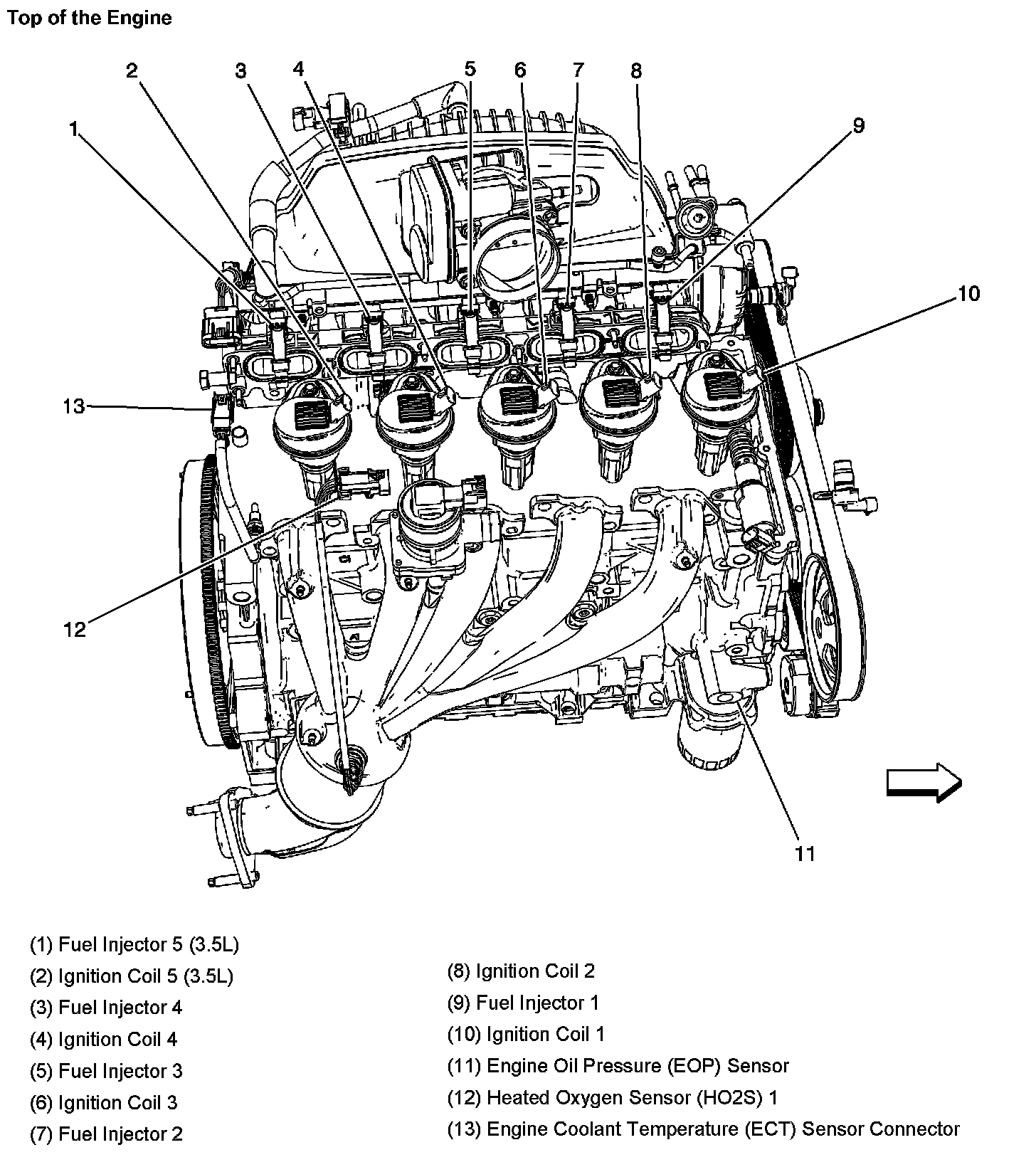

Top Of The Engine:

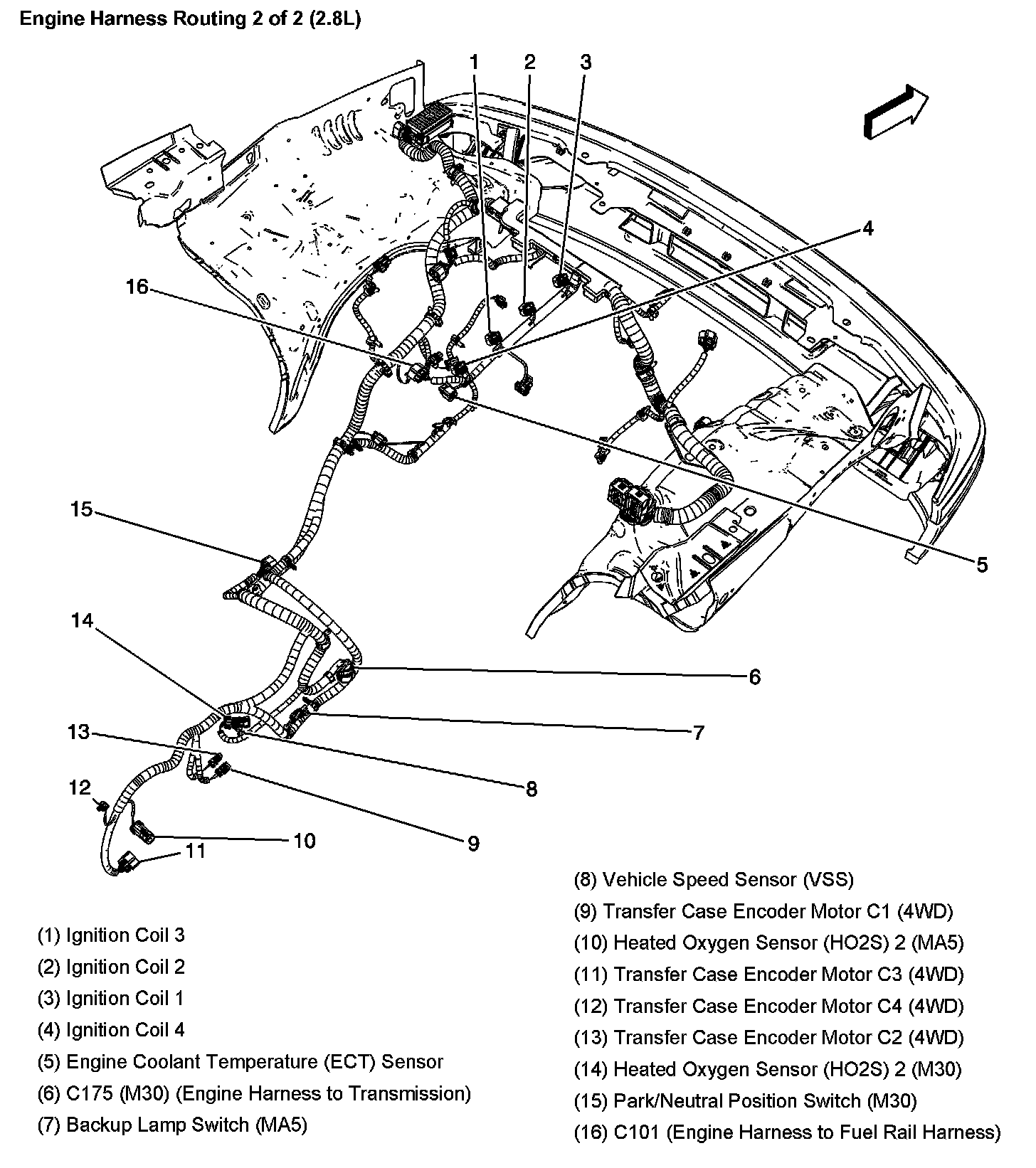

Engine Harness Routing (2.8L) Part 2:
