Front Lighting (Z88/Z89)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2005 Isuzu Ascender, 2005 GMC Envoy XUV, 2005 GMC Envoy XL, 2005 GMC Envoy, and 2005 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

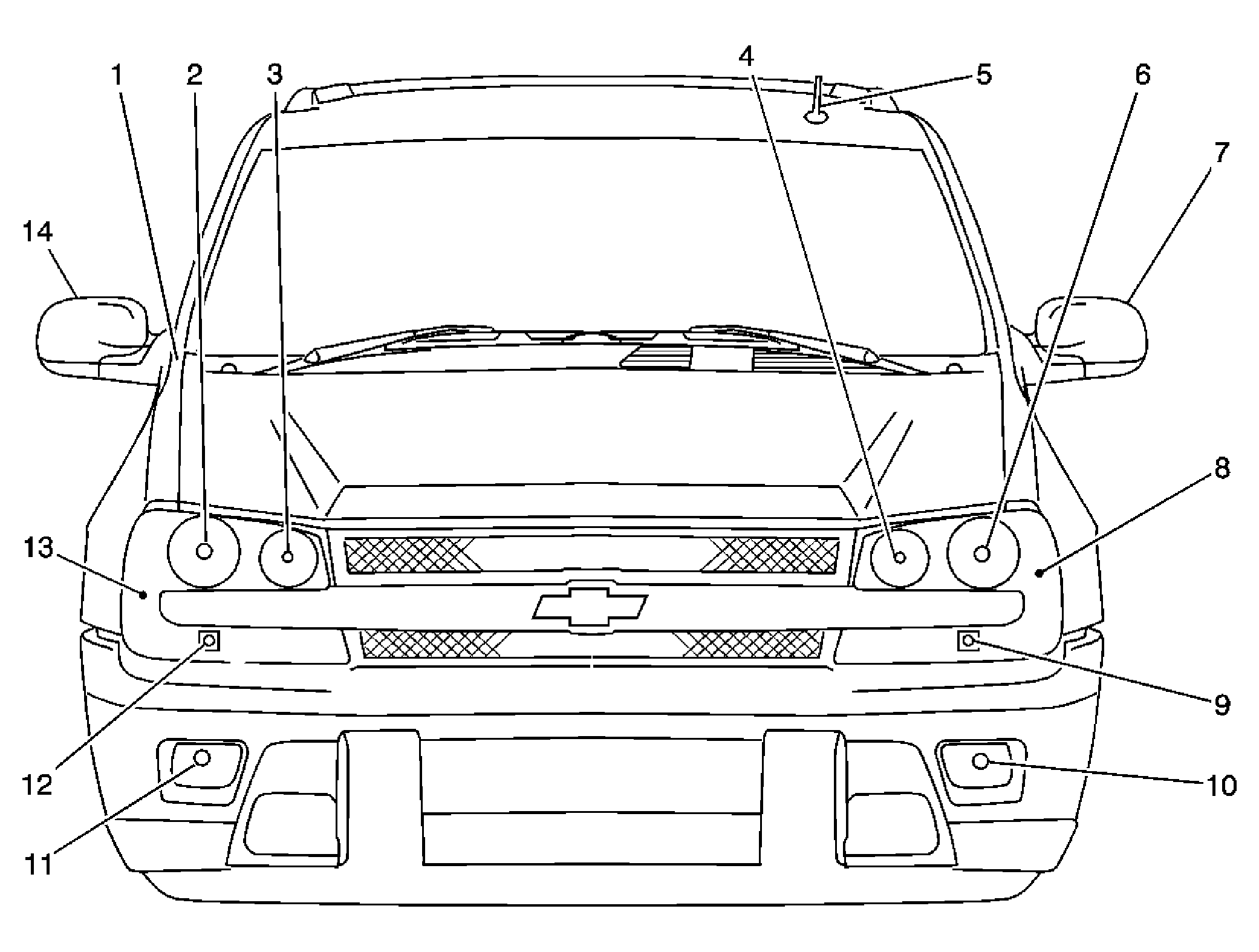

| Callout | Component Name |
|---|---|
| 1 | Radio Antenna |
| 2 | Headlamp - High Beam - Right |
| 3 | Headlamp - Low Beam - Right |
| 4 | Headlamp - Low Beam - Left |
| 5 | Cellular Antenna |
| 6 | Headlamp - High Beam - Left |
| 7 | Outside Rearview Mirror - Driver |
| 8 | Marker Lamp - LF |
| 9 | Park/Turn Signal lamp - LF |
| 10 | Fog Lamp - LF (T96) |
| 11 | Fog Lamp - RF (T96) |
| 12 | Park/Turn Signal lamp - RF |
| 13 | Marker Lamp - RF |
| 14 | Outside Rearview Mirror - Passenger |
