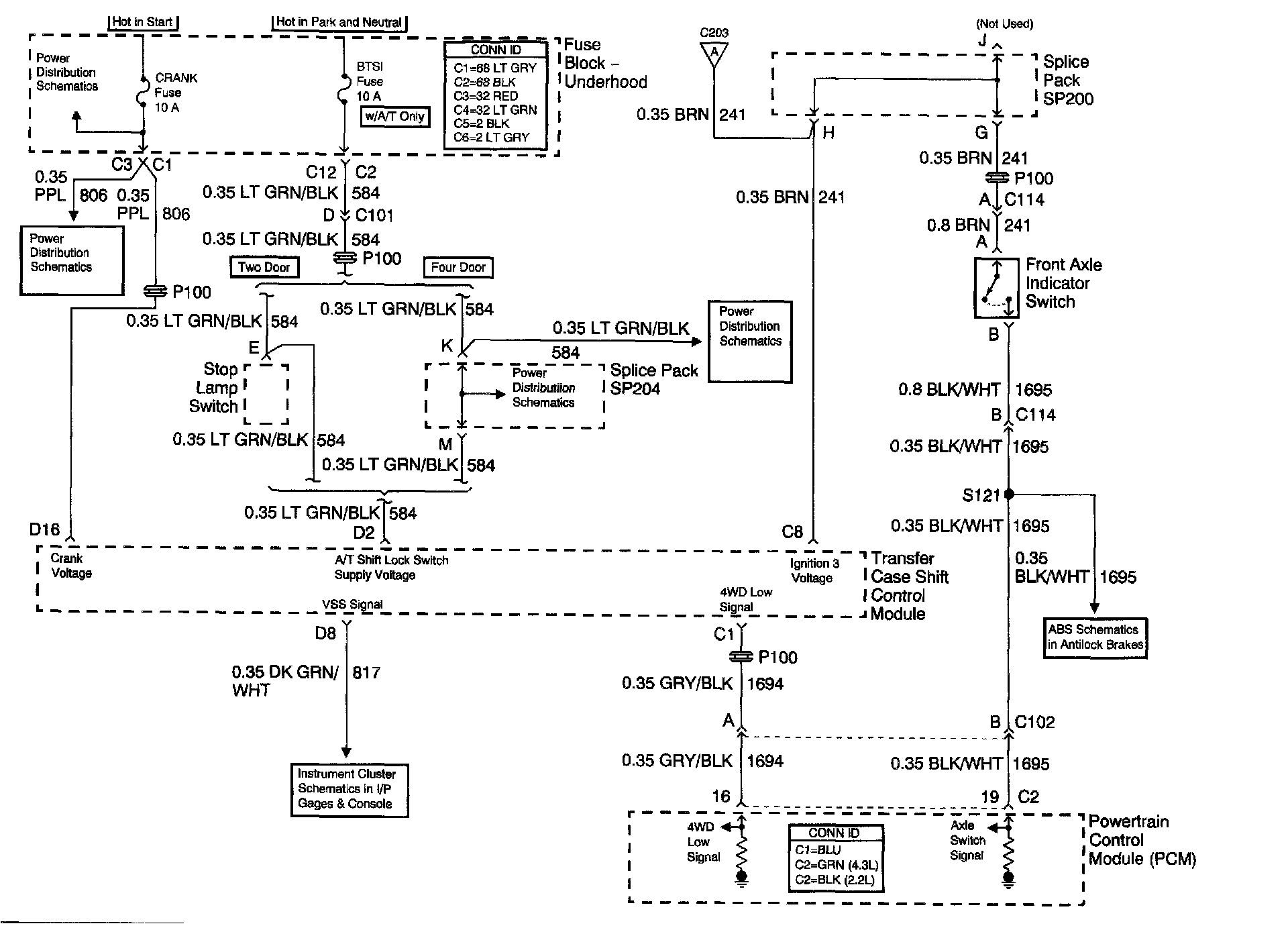

Transfer Case Control Schematics (Front Axle Indicator Switch and Powertrain Control Module (PCM))

Transfer Case Control Schematics (Front Axle Indicator Switch and Powertrain Control Module (PCM))
