Steering Column - Column Shift

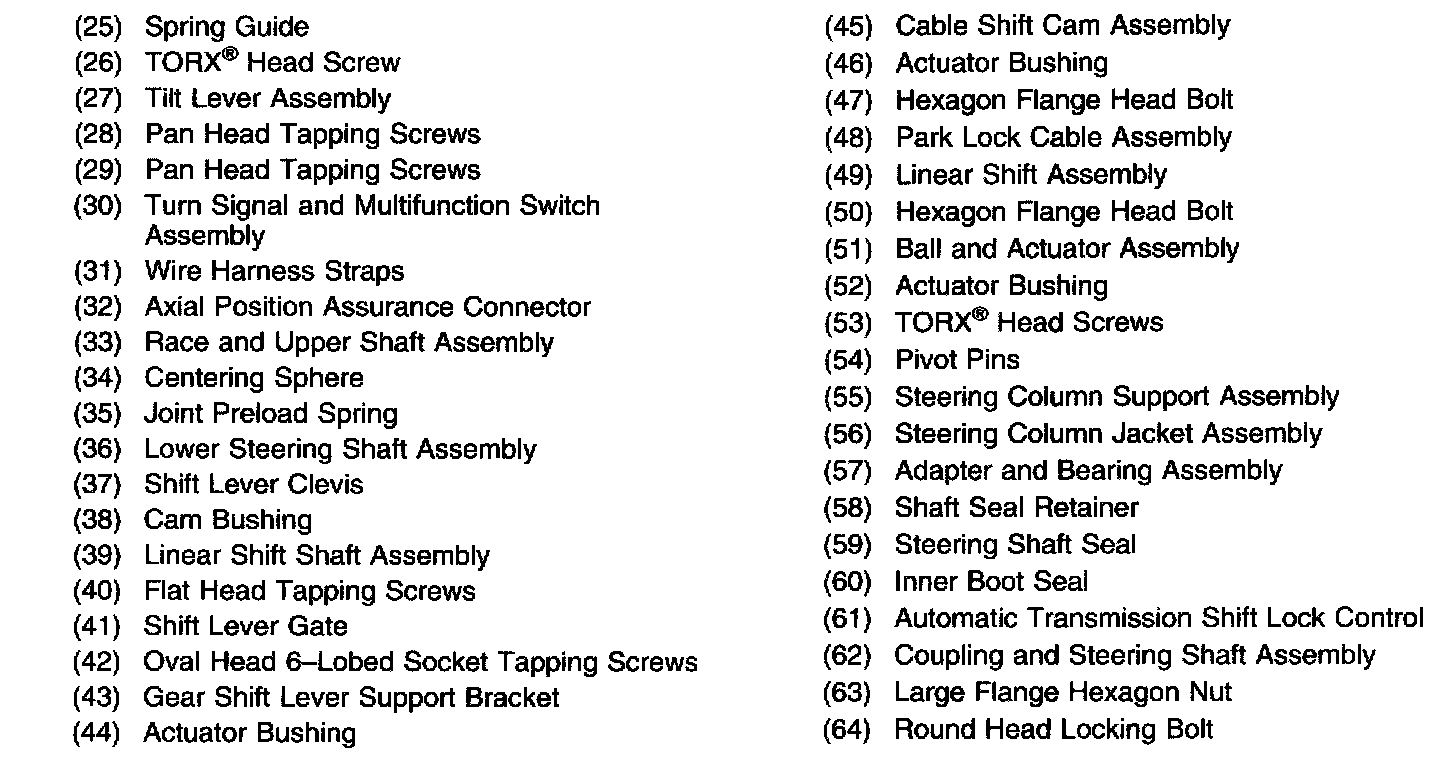

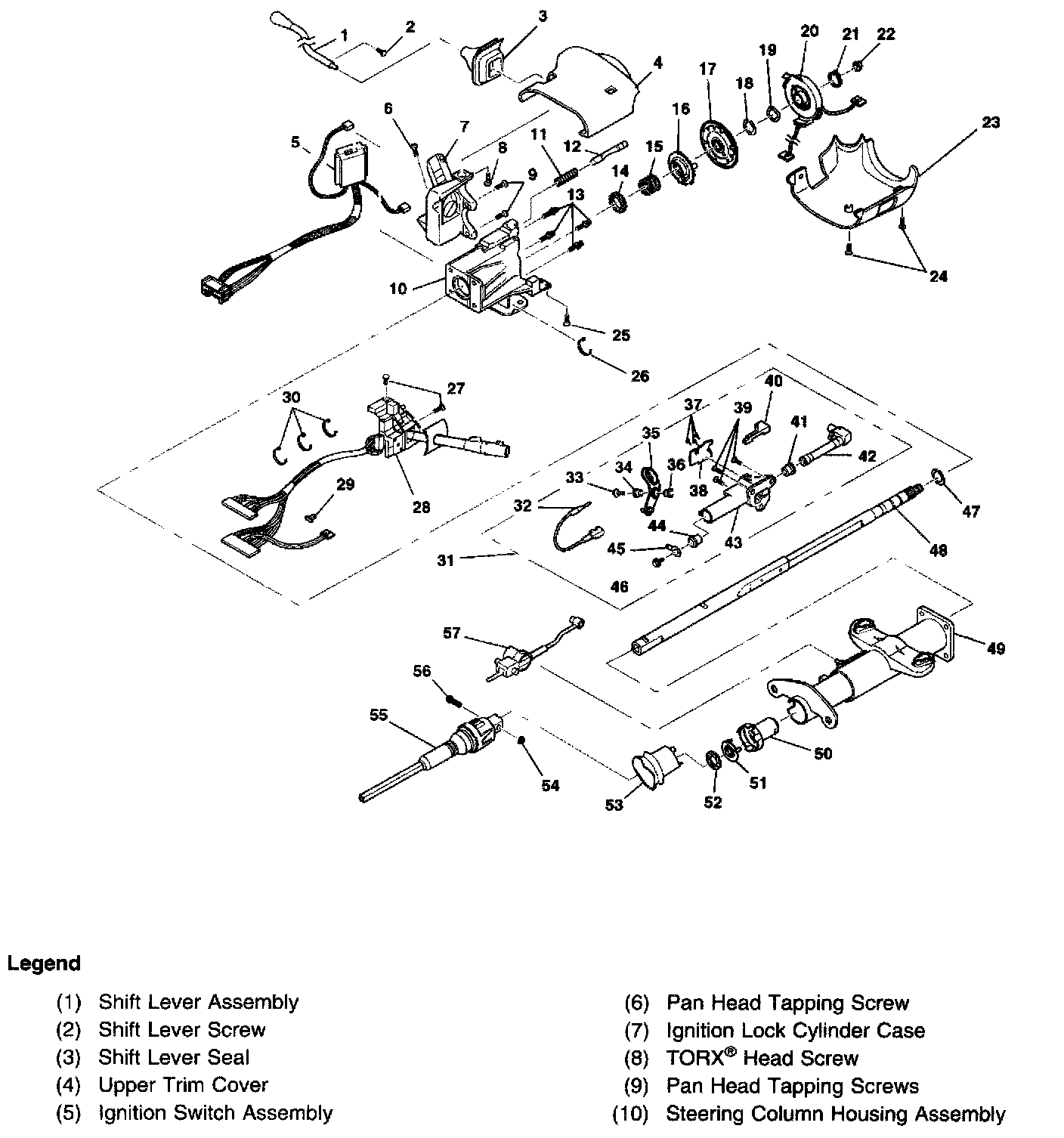

Steering Column Disassembled View

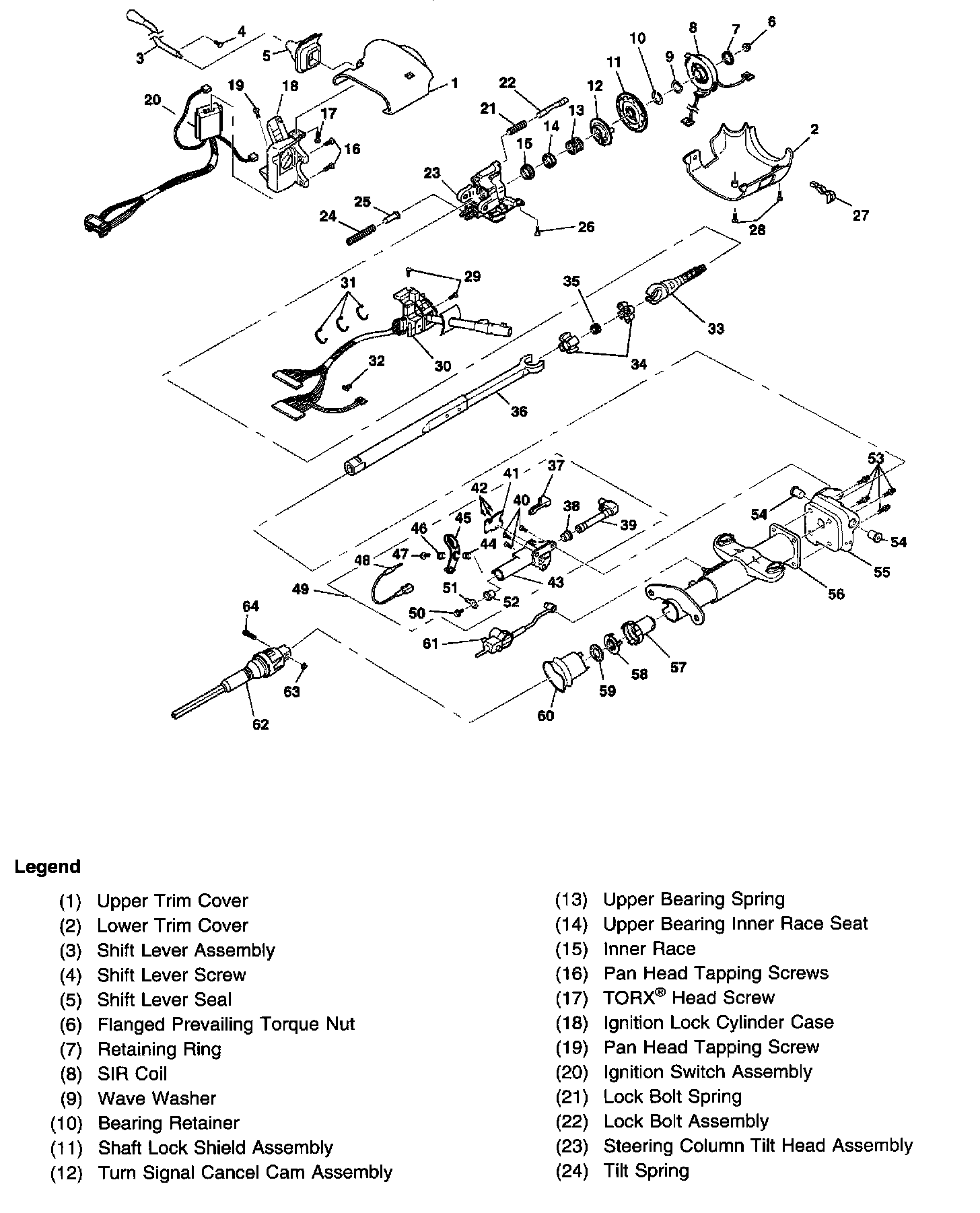

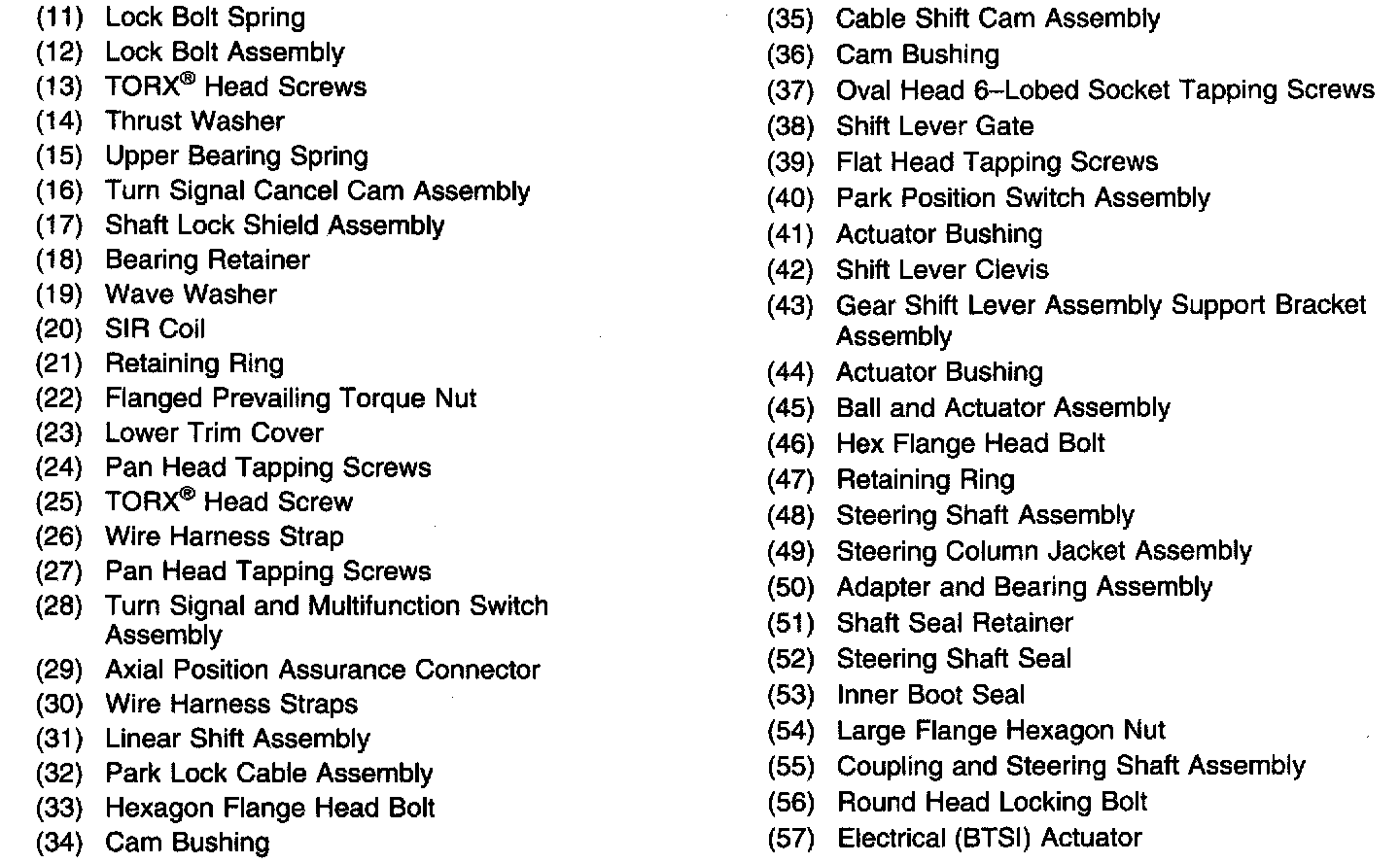

Tilt Steering Column, Disassembled View








Standard Column Shift
