P Series

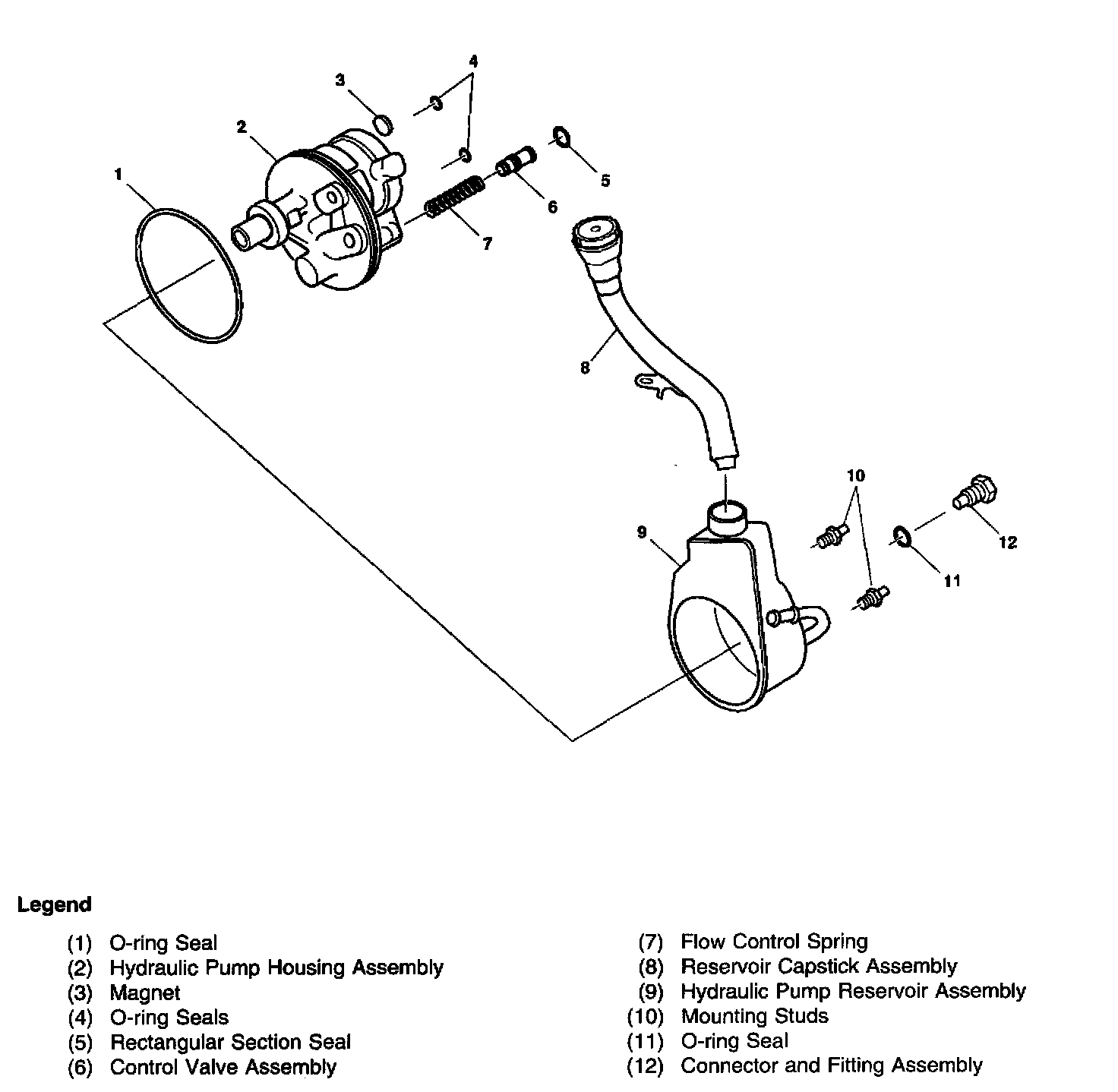

Power Steering Pump Disassembled View (P Series)





S/T Truck P Series Power Steering Pump Reservoir
