A/C System Pressure - Zone Classification

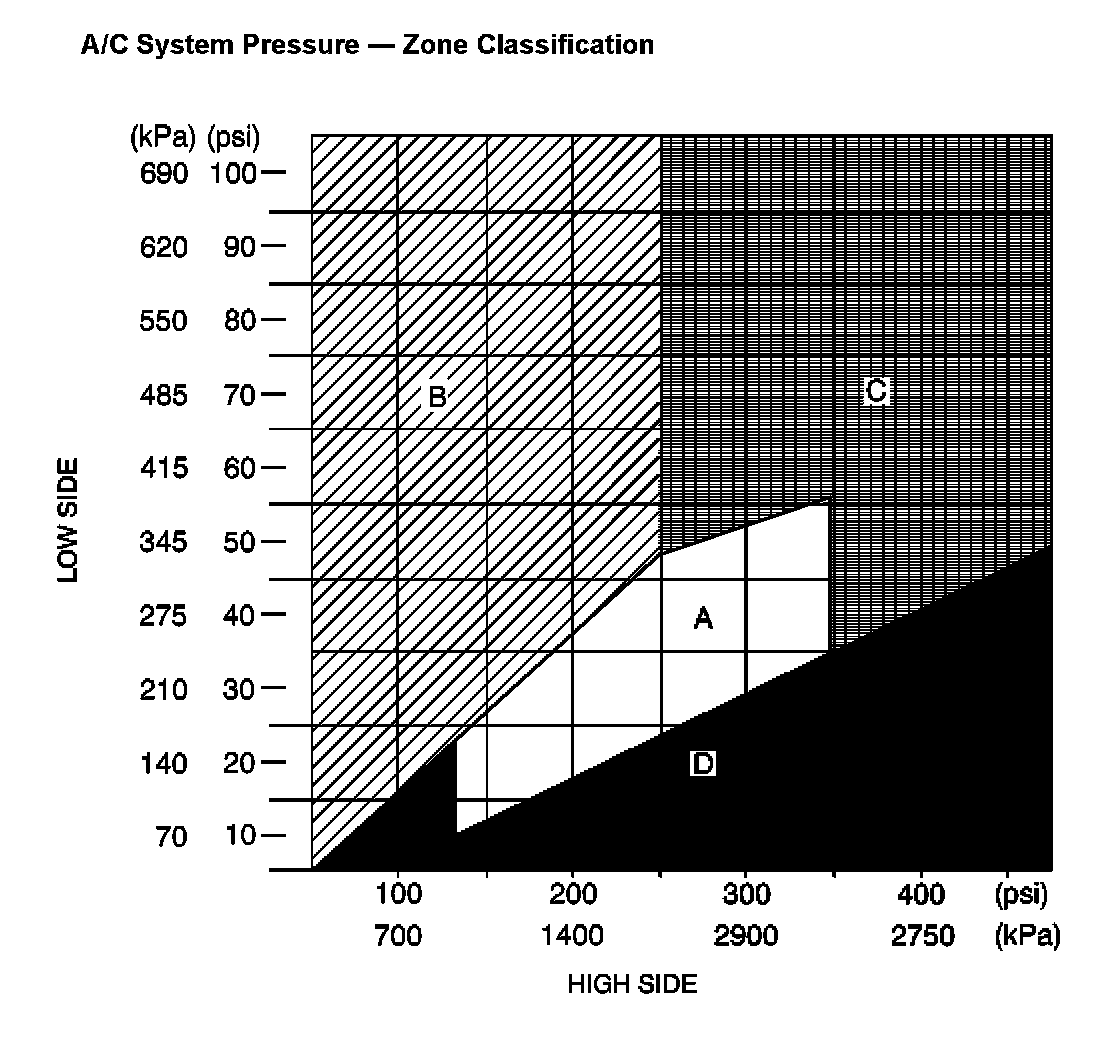

A/c System Pressure - Zone Classification:

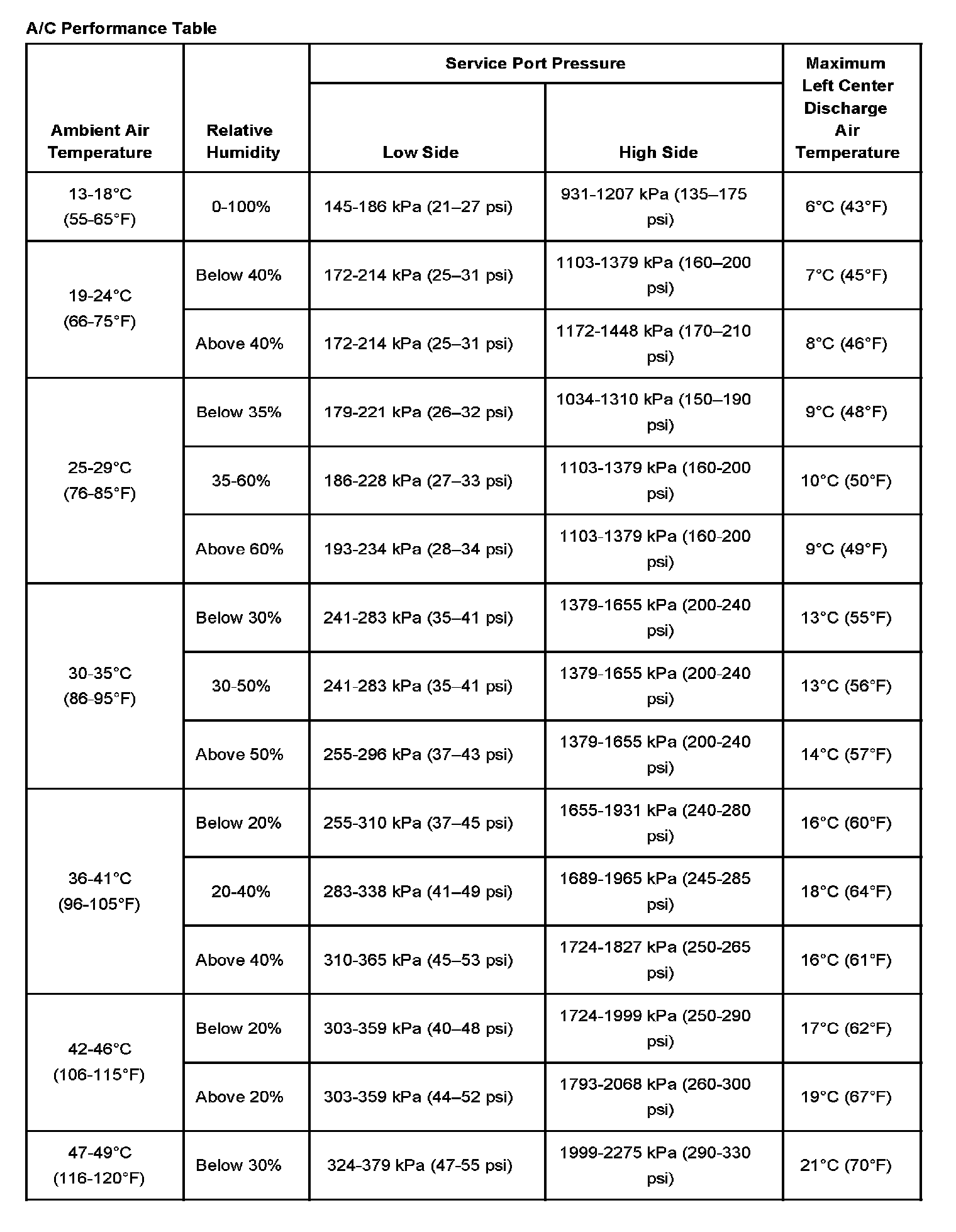

A/c Performance Table:
