System Specifications

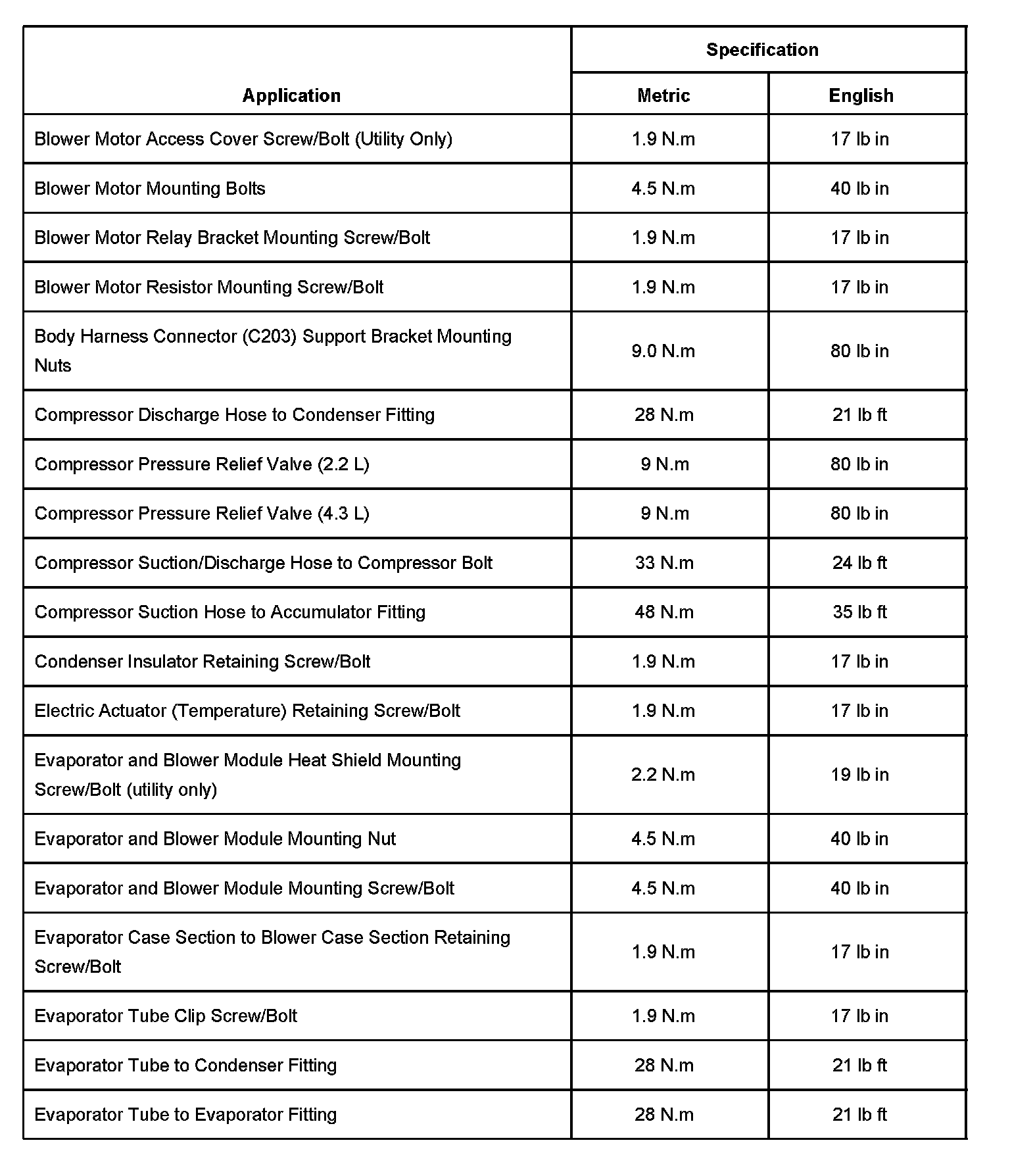

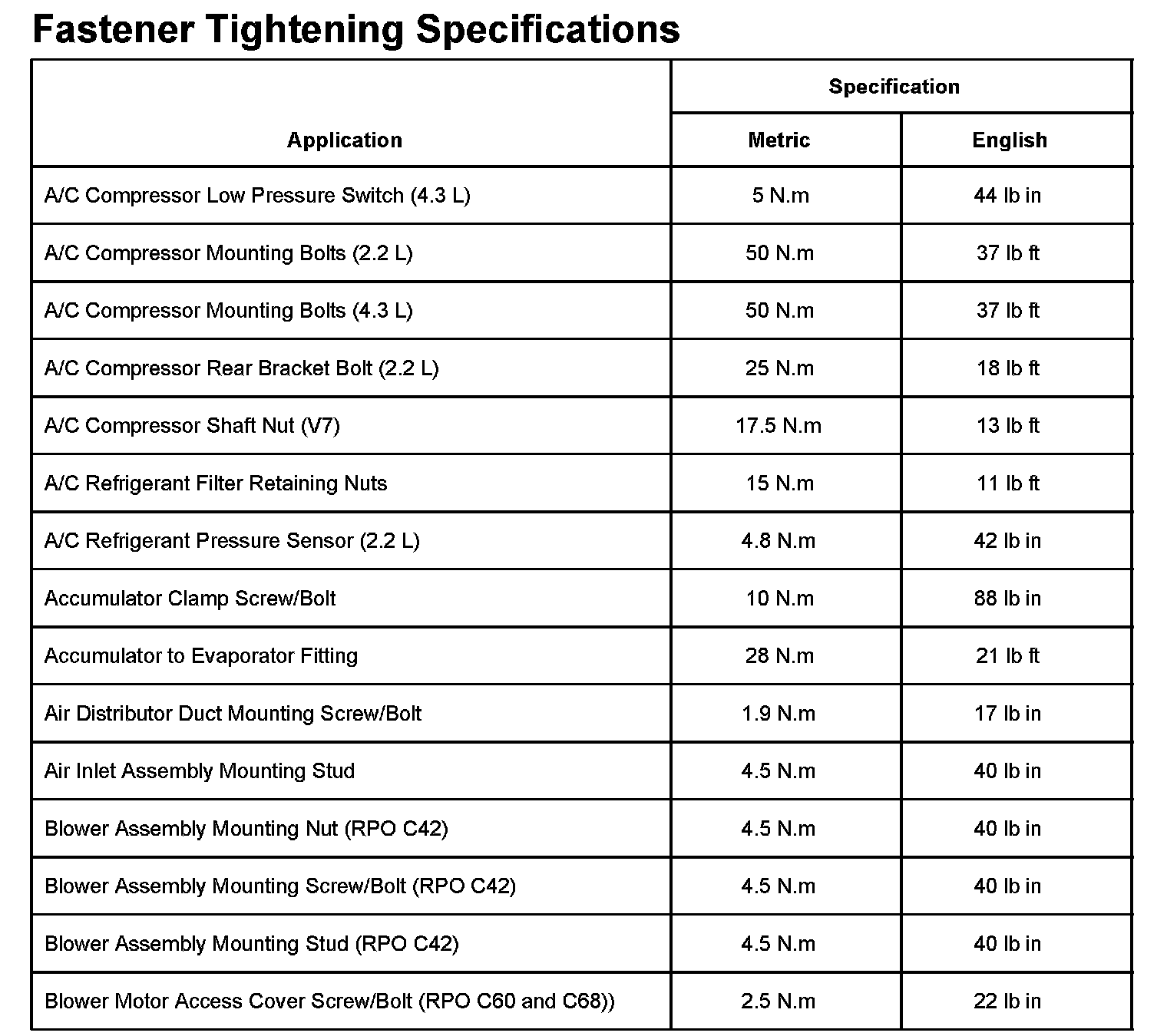

Heating, Ventilation and Air Conditioning 1 Of 3:



HVAC System - Manual:



Heating, Ventilation and Air Conditioning 2 Of 3:



Heating, Ventilation and Air Conditioning 3 Of 3:
