Transfer Case Control Schematics

WARNING: This page is about a different variant/trim than selected.

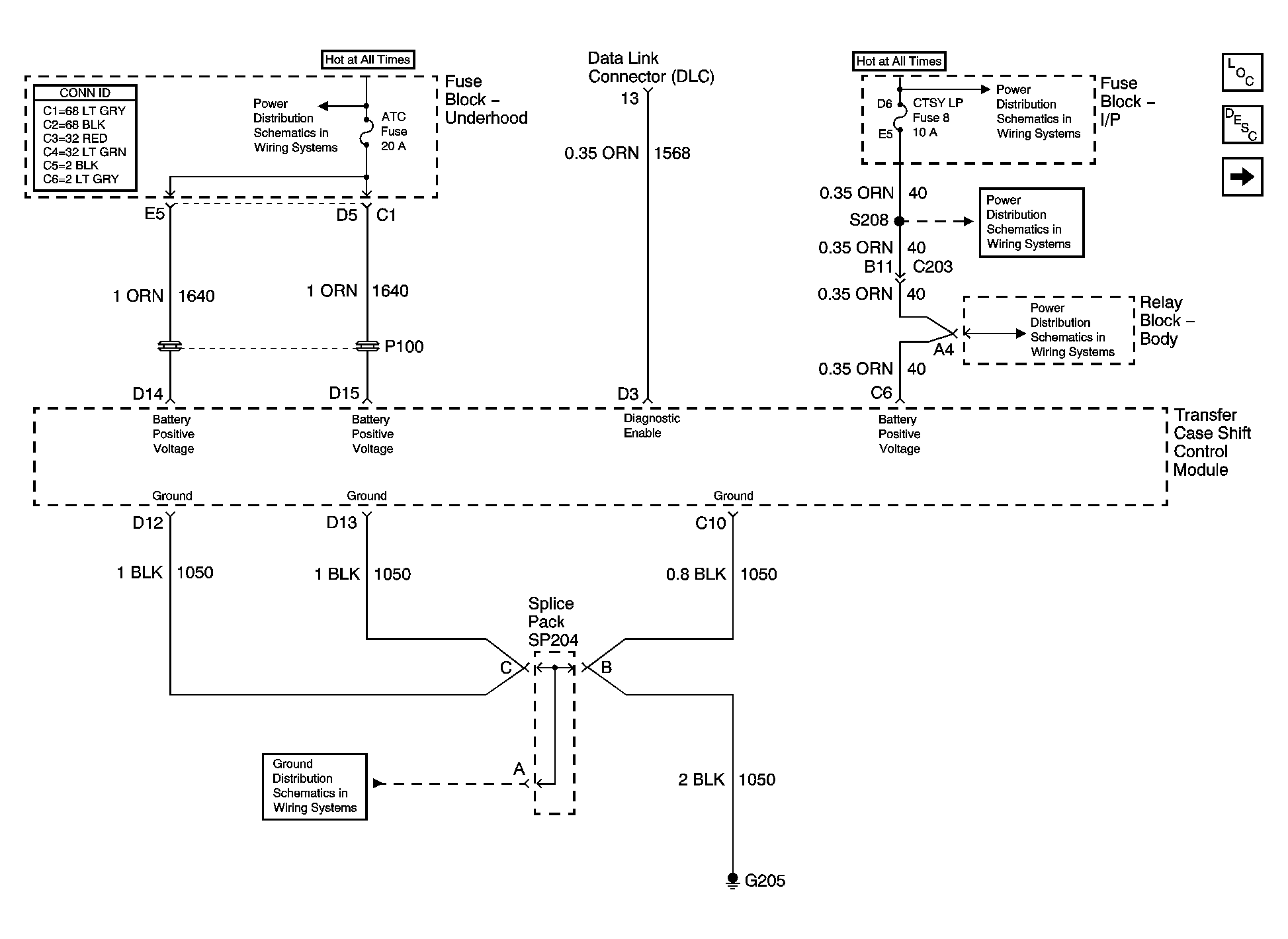

Fig 1: Power and Ground

Courtesy of GENERAL MOTORS CORP.

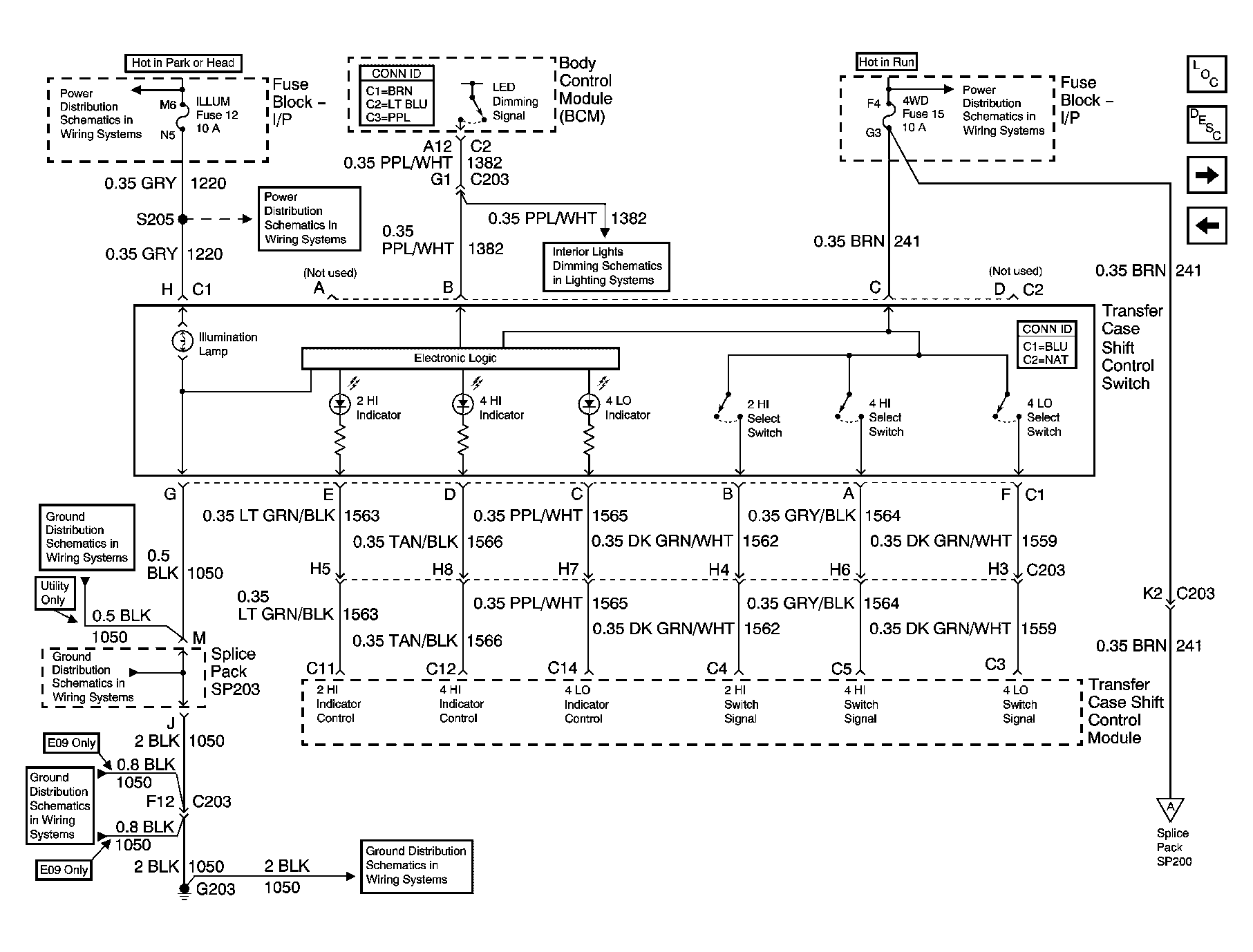

Fig 2: Transfer Case Shift Control Switch

Courtesy of GENERAL MOTORS CORP.

Fig 3: Transfer Case Encoder Motor

Courtesy of GENERAL MOTORS CORP.

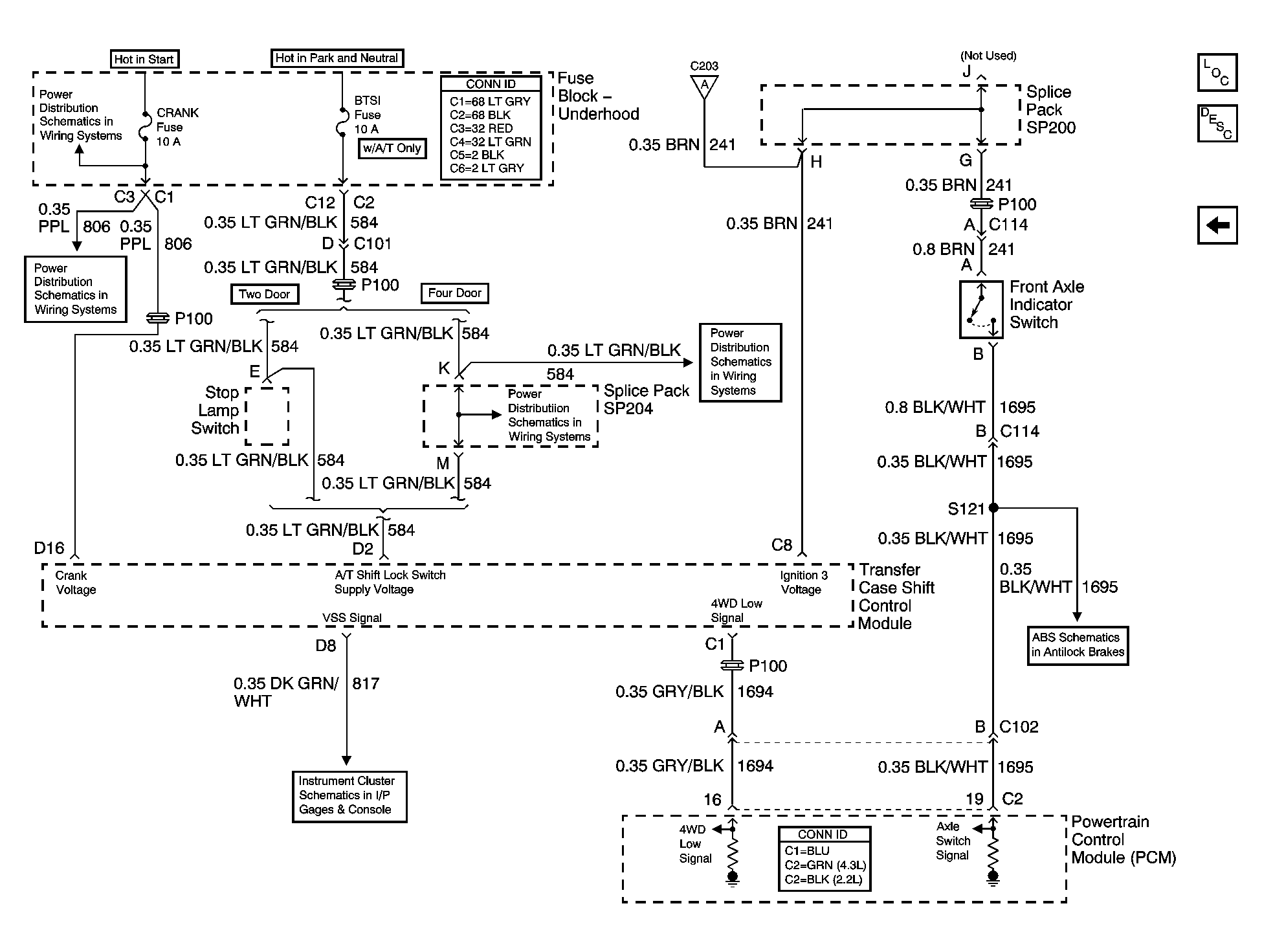

Fig 4: Front Axle Indicator Switch and Powertrain Control Module (PCM)

Courtesy of GENERAL MOTORS CORP.
