Wiper/Washer System Schematics

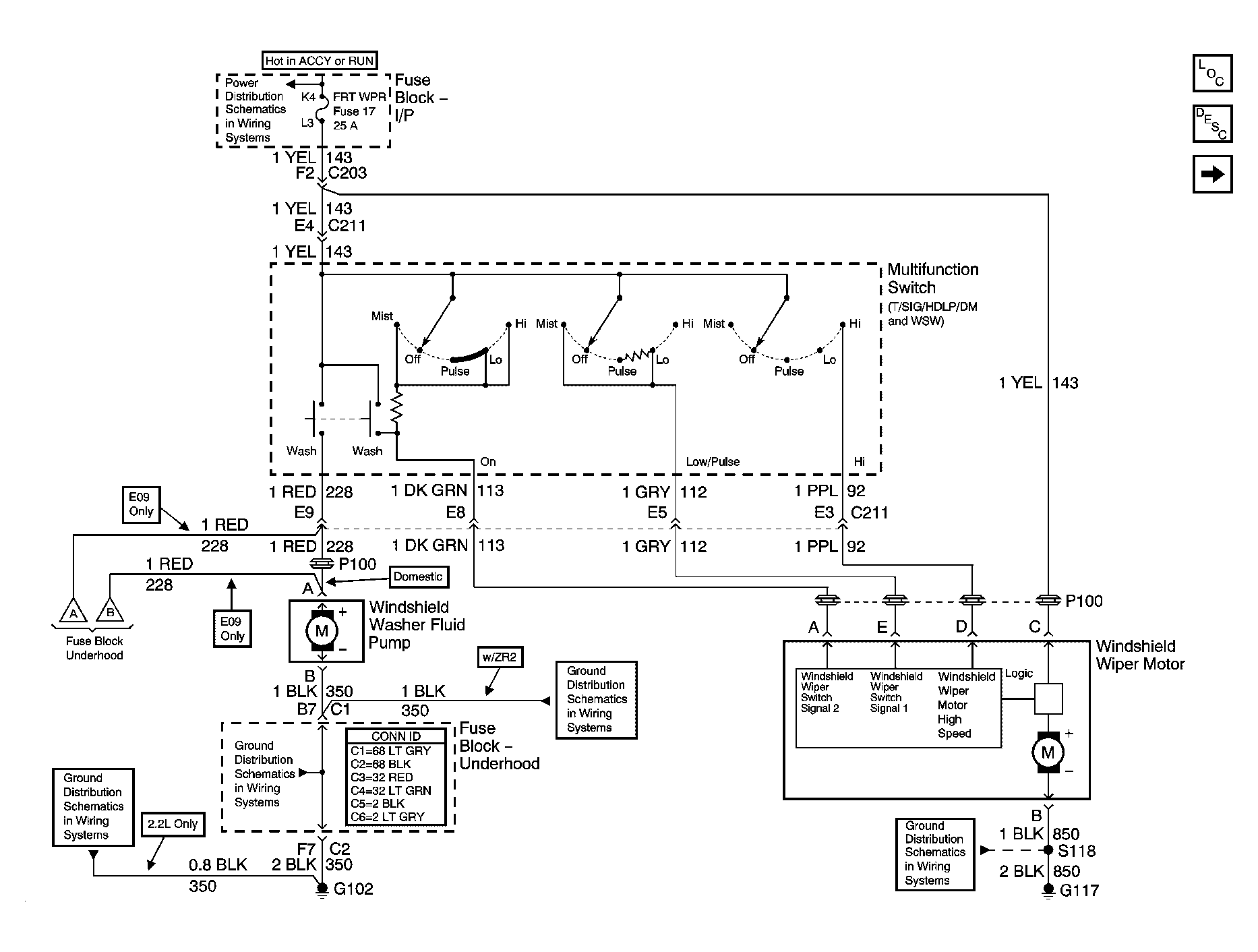

Fig 1: Pulse Wipers
GM886271Courtesy of GENERAL MOTORS CORP.

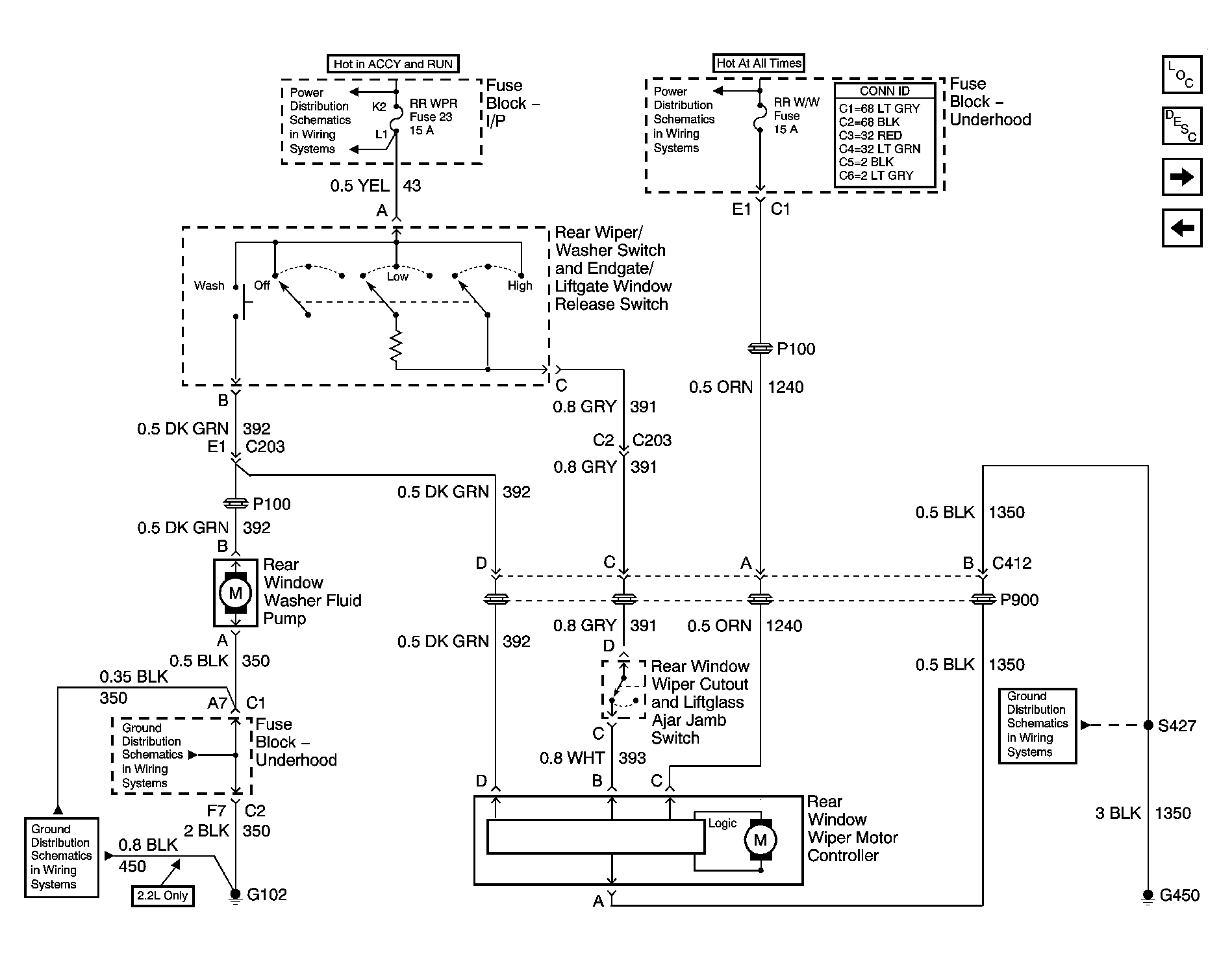

Fig 2: Rear Wipers
GM886273Courtesy of GENERAL MOTORS CORP.

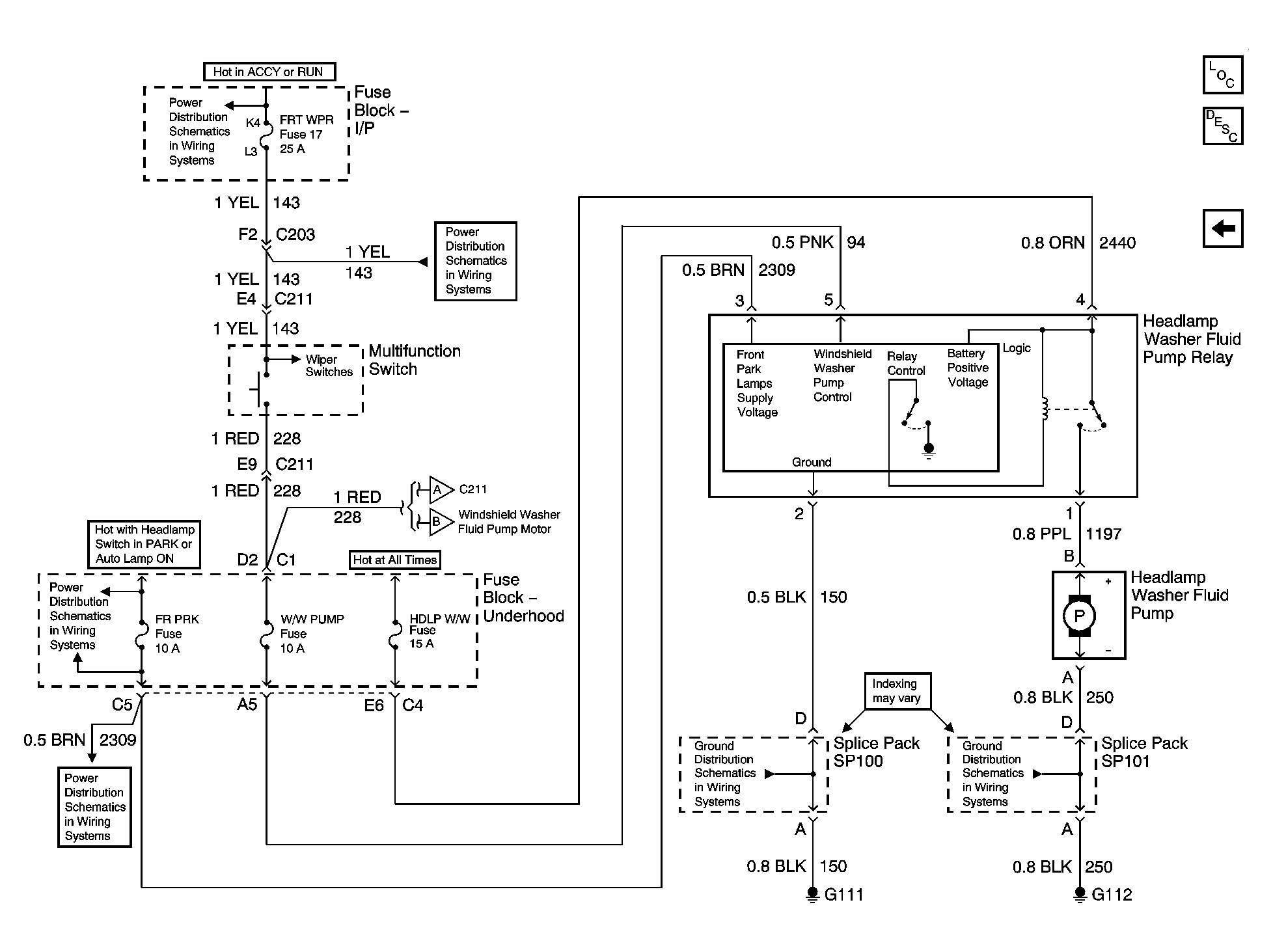

Fig 3: Headlamp Washer System - Export Only
GM886274Courtesy of GENERAL MOTORS CORP.
