Installation Procedure

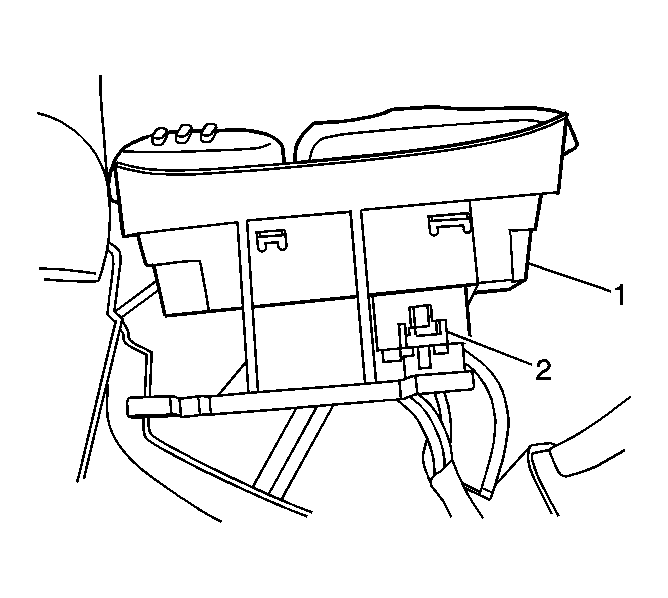

    Fig 1: Locating Electrical Connector
    GM1491628Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector (2) to the control button assembly (1).

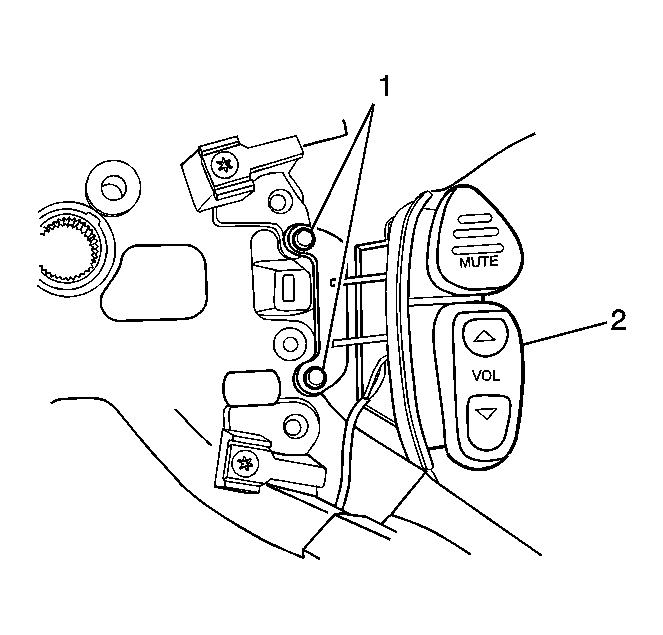

    2. Fig 2: Locating Screws Retaining Control Button Assembly To Steering Wheel
    GM1491626Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the control button assembly (2) to the steering wheel with the two screws (1).

    Tighten:  Tighten the screws to 1.5 N.m (13 lb in).

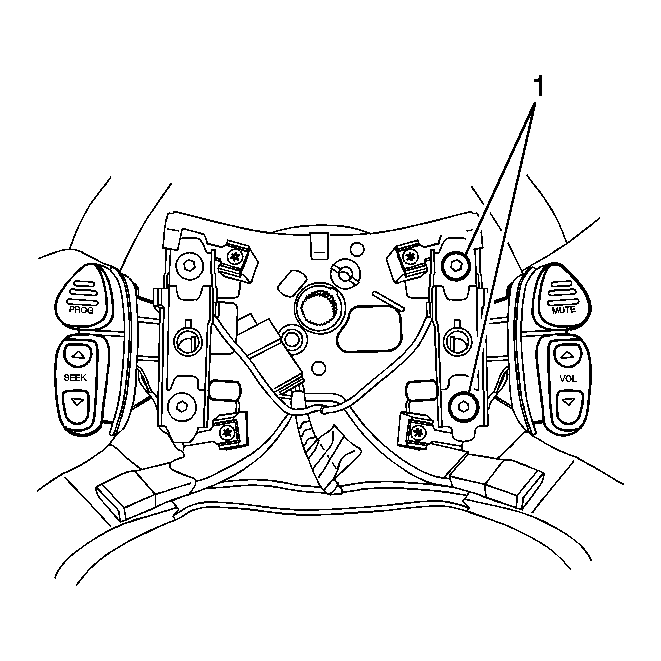

    3. Fig 3: Locating Screws Retaining Horn Contact Plate To Steering Wheel
    GM1491622Courtesy of GENERAL MOTORS CORP.
  3. Install the horn contact plate to the steering wheel with the screws (1).

    Tighten:  Tighten the screws to 5.5 N.m (50 lb in).

  4. Install the inflator module. Refer to Inflatable Restraint Steering Wheel Module Replacement in SIR.
  5. Enable the SIR system. Refer to SIR Disabling and Enabling Zone 3 in SIR.
