Installation Procedure

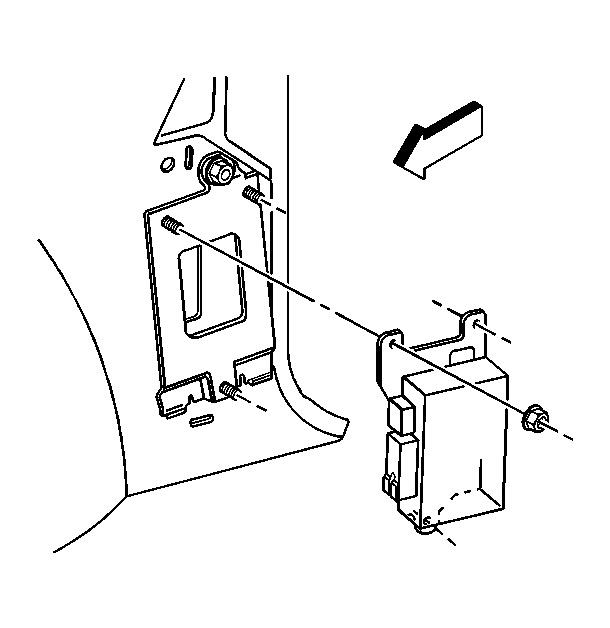

Fig 1: View Of Automatic Transfer Case Control Module

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the automatic transfer case control module into the retainer with the 3 nuts.
Tighten: Tighten the nut to 6 N.m (53 lb in).

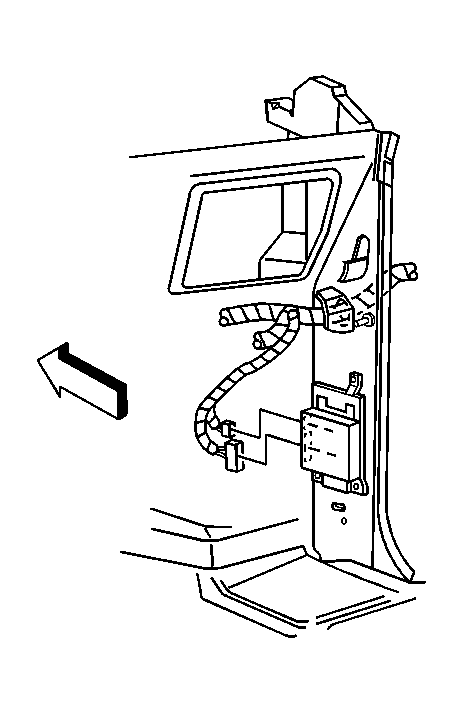

Fig 2: Locating Wiring Harness Connectors

Courtesy of GENERAL MOTORS CORP.

Connect the 2 wiring harness connectors to the automatic transfer case control module.

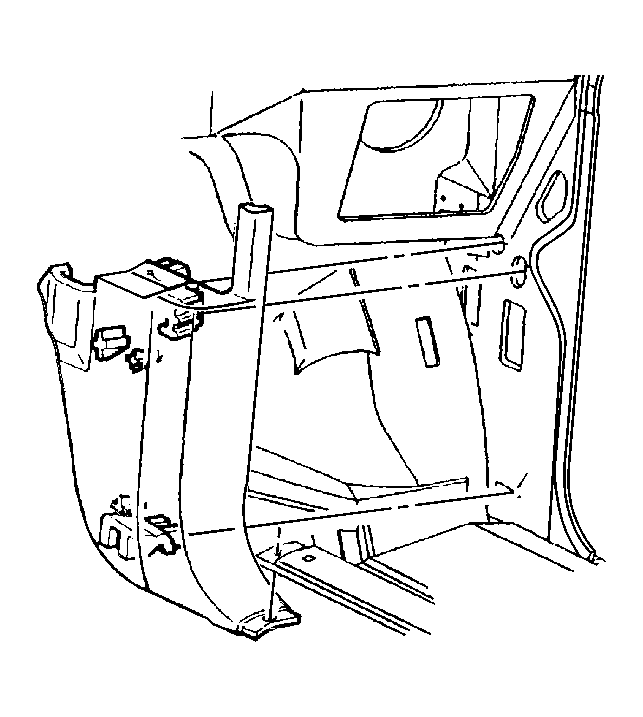

Fig 3: View Of Right Lower Hinge Trim Panel

Courtesy of GENERAL MOTORS CORP.

Install the right lower hinge trim panel. Refer to Trim Panel Replacement - Right Hinge Pillar in Interior Trim.
Start the engine and test the automatic transfer case system for proper shift operation.
