Data Link Connector (DLC) Schematics

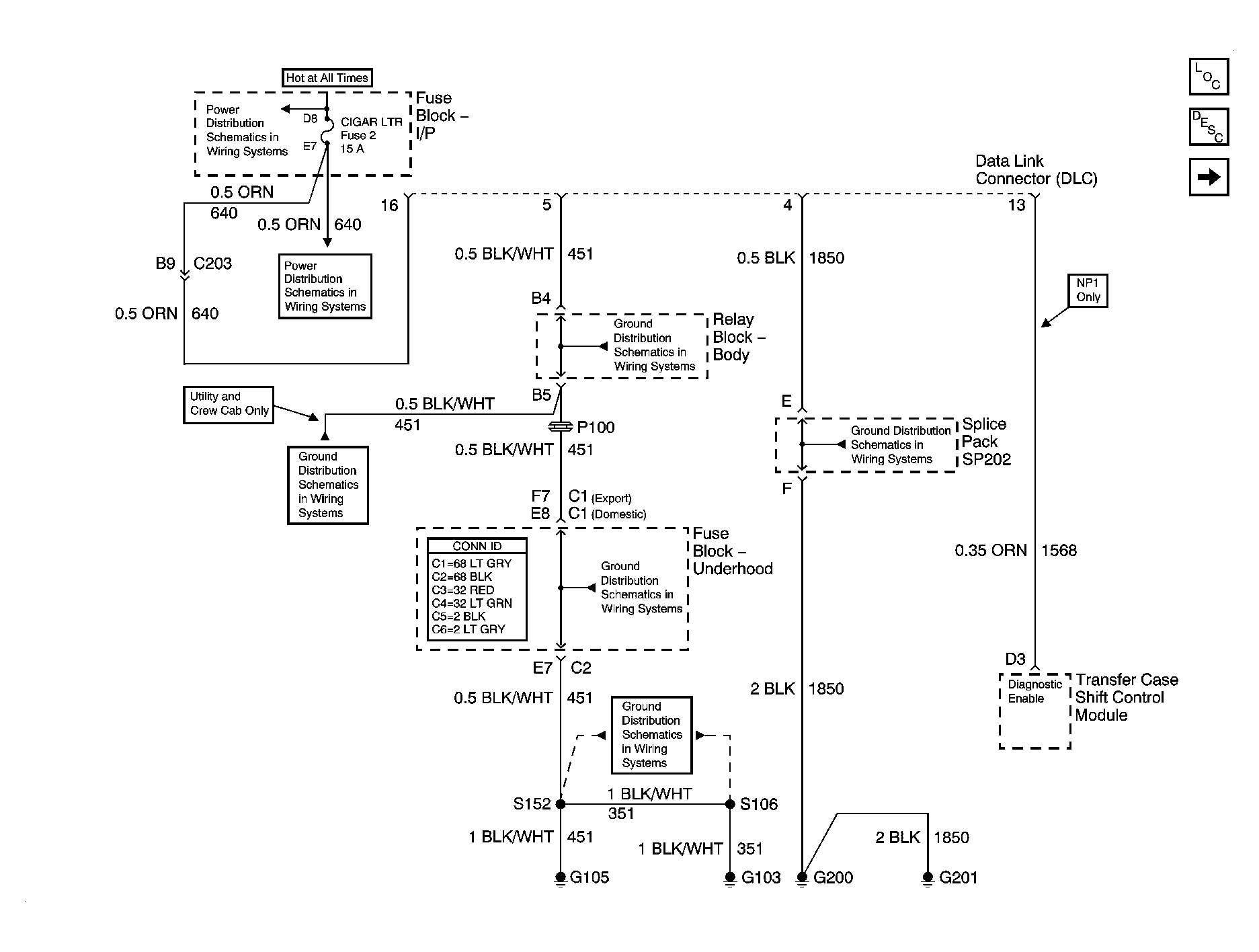

Fig 1: Power, Ground, and Transfer Case Shift Control Module Schematic
GM886858Courtesy of GENERAL MOTORS CORP.

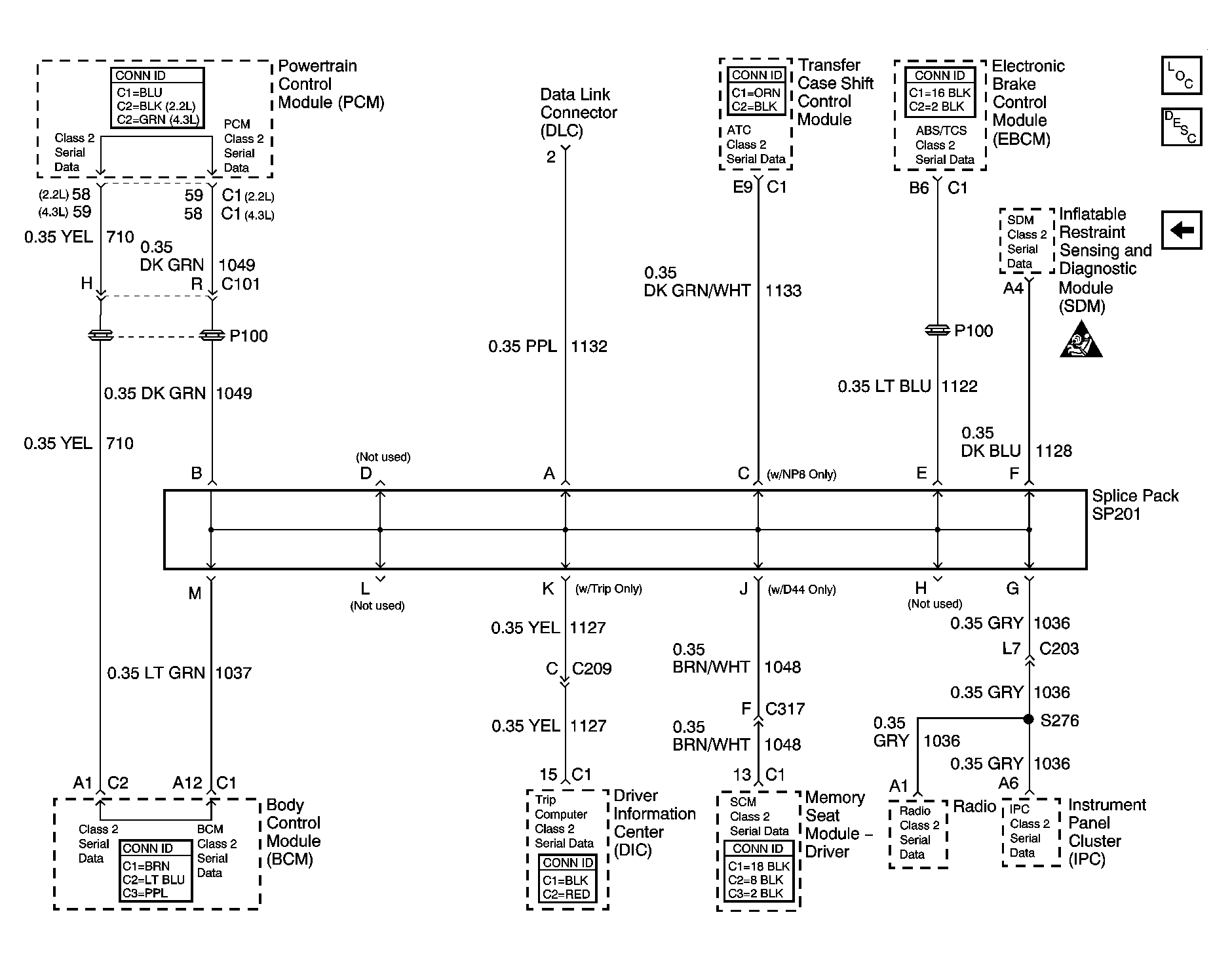

Fig 2: Class 2 Serial Data Schematic
GM880149Courtesy of GENERAL MOTORS CORP.
