Automatic Transmission Shift Lock Control Component Views

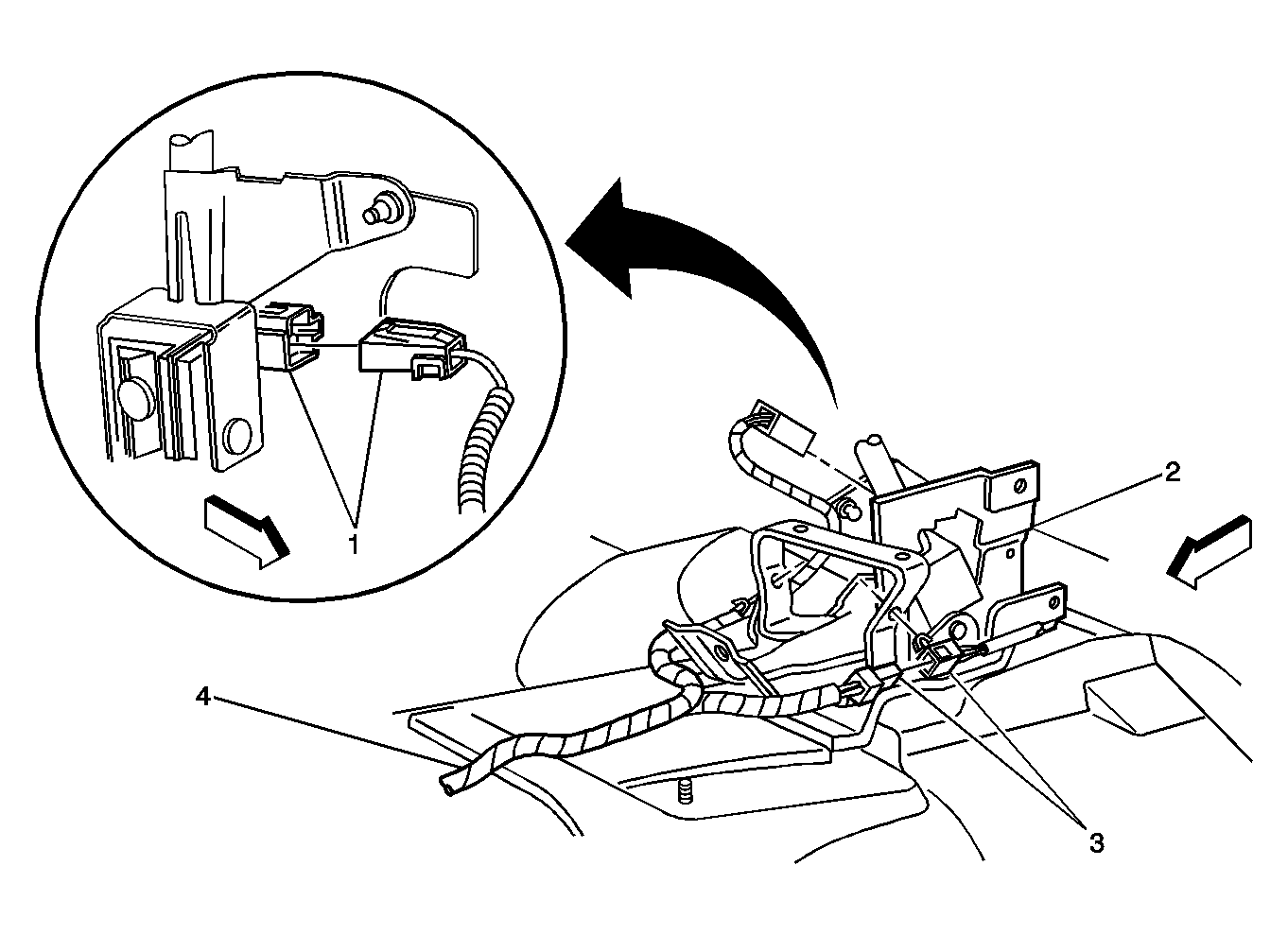

Fig 1: Floor Shifter Harness Connections

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Automatic Transmission Control Module Connector
2	Floor Shifter
3	Automatic Transmission Shift Lever Position Indicator
4	S335

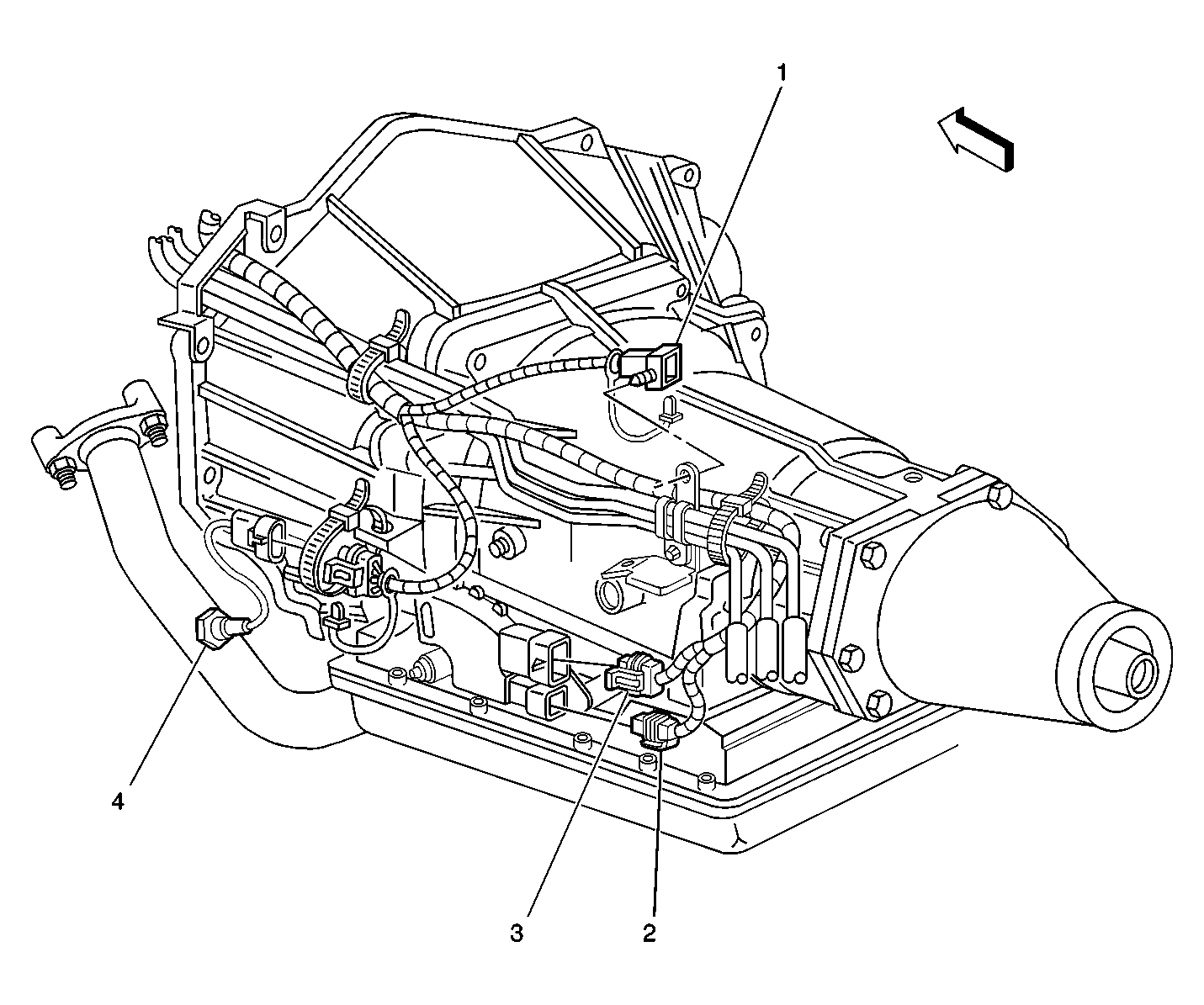

Fig 2: Park/Neutral Position (PNP) Switch (w/ A/T) (4.3L Shown, 2.2L Similar)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C104
2	Park/Neutral Position (PNP) Switch Connector C2
3	Park/Neutral Position (PNP) Switch Connector C1
4	Oxygen Sensor (O2S) Bank 1 Sensor 1

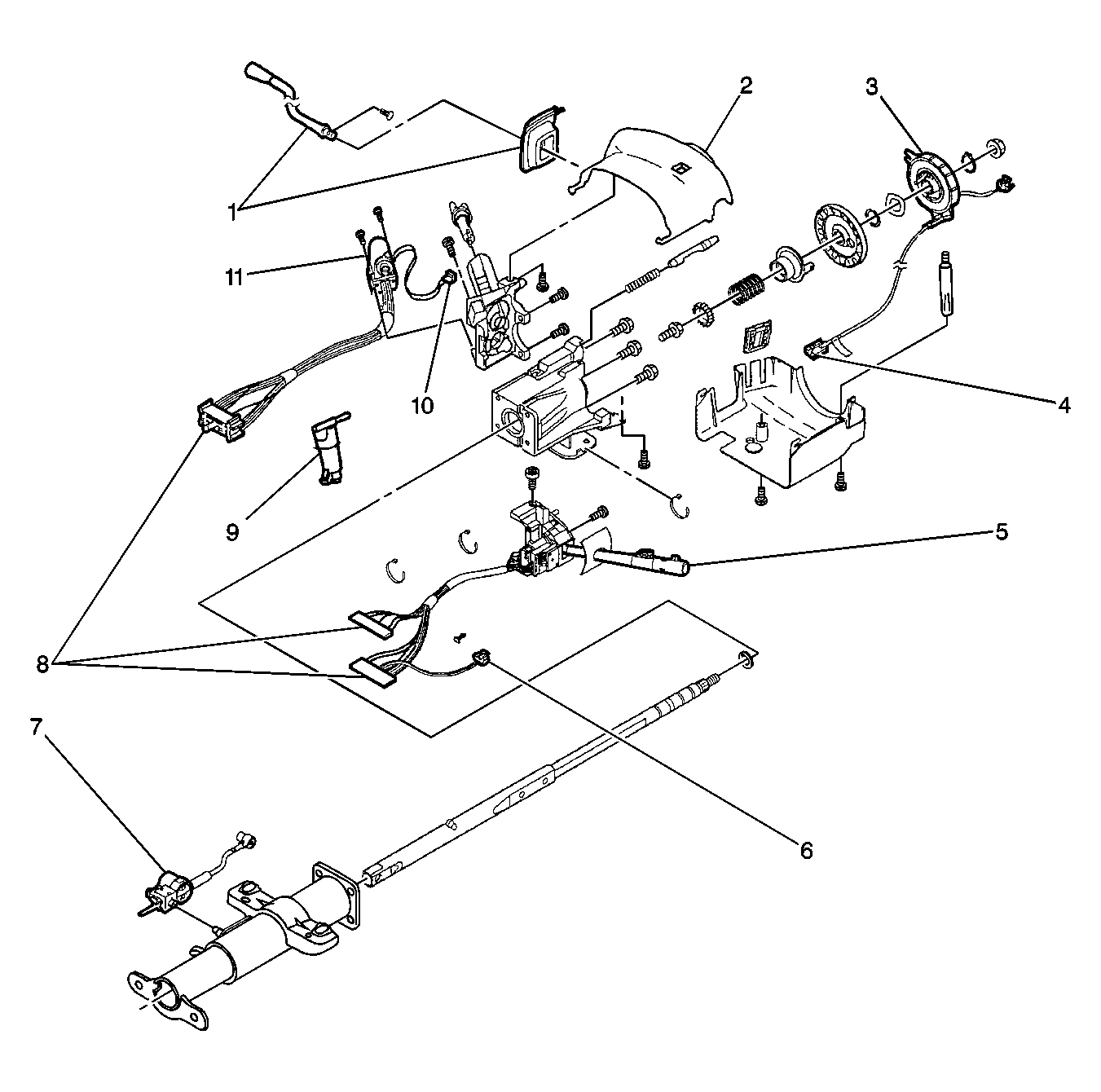

Fig 3: Steering Column Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Shift Lever Assembly
2	Upper Shroud
3	Inflatable Restraint Steering Wheel Module Coil
4	C214
5	Multifunction Switch
6	Ignition Lock Cylinder Control Actuator Connector - w/ Floor Shift, Automatic Transmission Shift Lock Actuator Connector - w/ Column Shift
7	Automatic Transmission Shift Lock Actuator - w/ Column Shift
8	C211
9	Ignition Lock Cylinder Control Actuator - w/ Floor Shift
10	Passlock™ Sensor Connector
11	Ignition Switch and Ignition Key Alarm Switch
