Disassembled Views

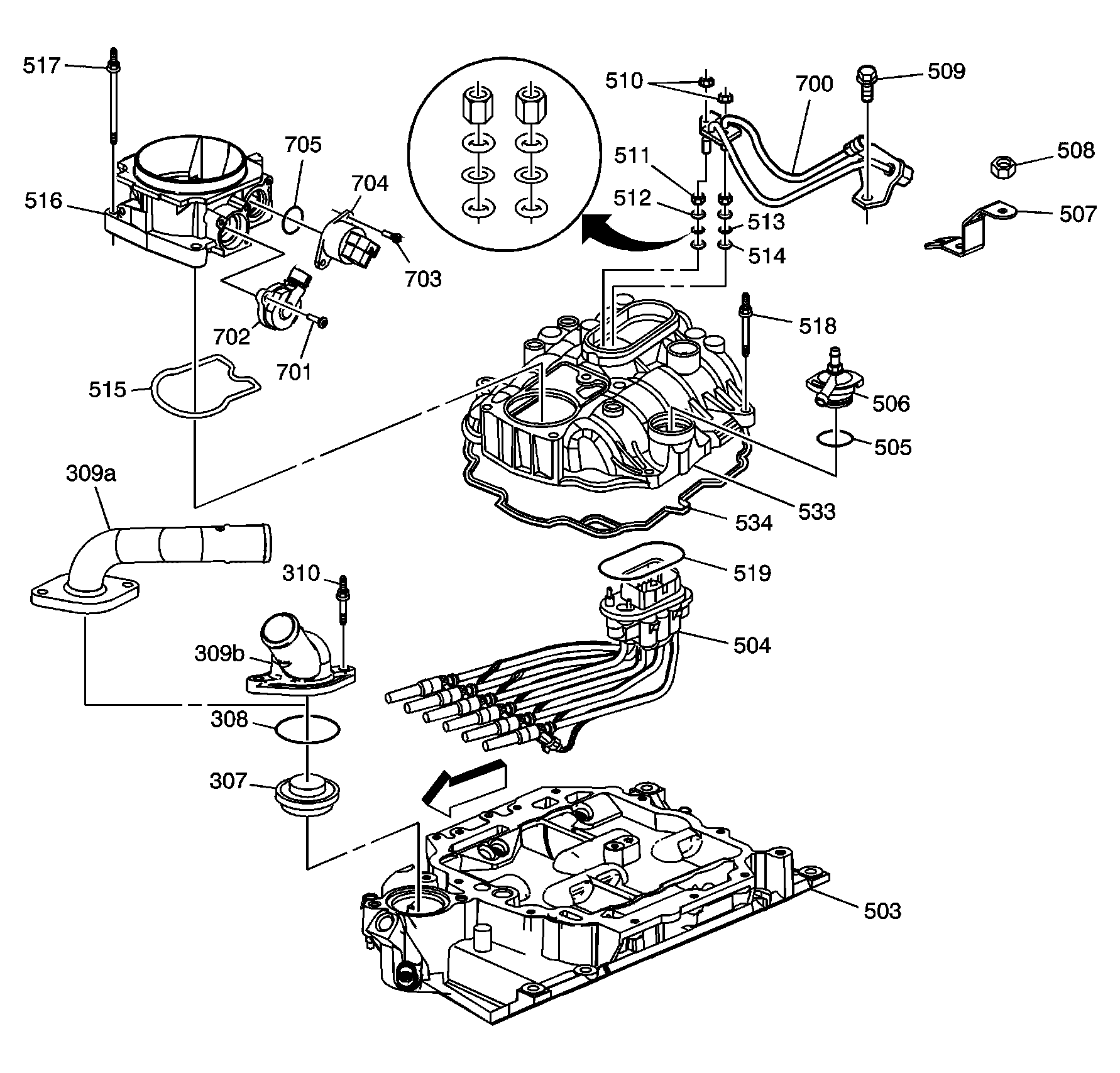

Fig 1: Upper and Lower Intake Manifold View
GM1312853Courtesy of GENERAL MOTORS CORP.
Callout Component Name
307 Thermostat
308 Thermostat Seal
309a Thermostat Housing - S/T/C/K
309b Thermostat Housing - M/L/G/H
310 Thermostat Housing Stud
503 Lower Intake Manifold
504 Fuel Meter Body
505 PVC Valve Cover Seal
506 PVC Valve Cover
507 Wire Harness Bracket
508 Wire Harness Bracket Nut
509 Fuel Pipe Bolt
510 Fuel Pipe Nut
511 Fuel Pipe Seal Retainer
512 Upper Fuel Pipe Seal
513 Fuel Pipe Spacer
514 Lower Fuel Pipe Seal
515 Throttle Body Gasket
516 Throttle Body
517 Throttle Body Stud
518 Upper Intake Manifold Stud
519 Fuel Meter Body Seal
533 Upper Intake Manifold
534 Upper Intake Manifold Gasket
700 Fuel Pipes
701 Throttle Position (TP) Sensor Bolt
702 Throttle Position Sensor
703 Idle Air Control (IAC) Sensor Bolt
704 Idle Air Control Sensor
705 Idle Air Control Sensor Seal

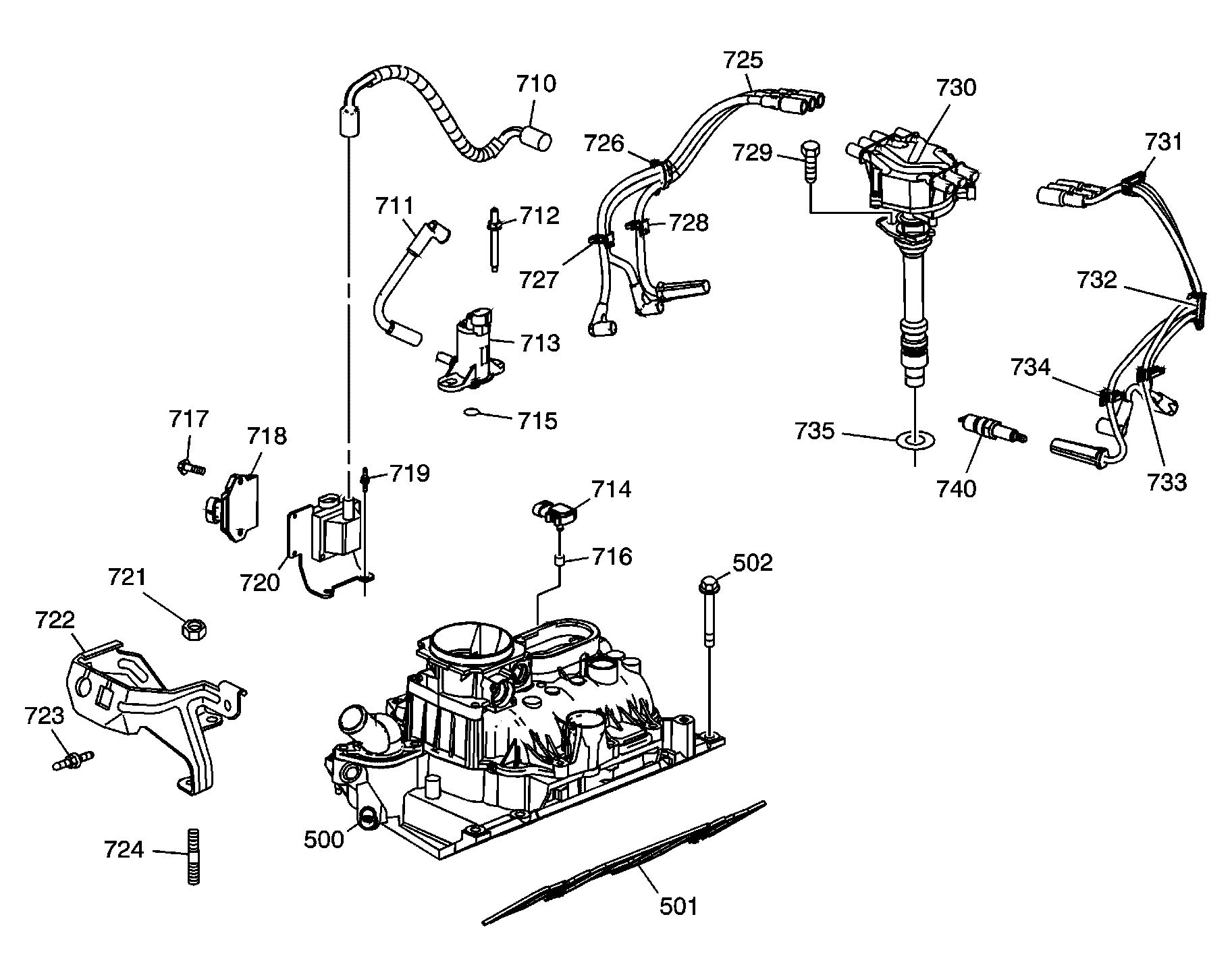

Fig 2: Upper Engine View 1
GM1312857Courtesy of GENERAL MOTORS CORP.
Callout Component Name
500 Intake Manifold Assembly
501 Lower Intake Manifold Gasket
502 Lower Intake Manifold Bolt
710 Ignition Coil Wire
711 Evaporative Emission (EVAP) Purge Valve Hose
712 Evaporative Emission (EVAP) Purge Valve Bolt
713 Evaporative Emission (EVAP) Purge Valve
714 MAP Sensor
715 Evaporative Emission (EVAP) Purge Valve Seal
716 MAP Sensor Seal
717 Ignition Coil Module Bolt
718 Ignition Coil Module
719 Ignition Coil Bolt
720 Ignition Coil
721 Throttle Cable Bracket Nut
722 Throttle Cable Bracket
723 Throttle Cable Bracket Bolt
724 Throttle Cable Bracket Stud
725 Ignition Wire Harness - Right
726 Ignition Wire Harness Retainer
727 Ignition Wire Harness Retainer
728 Ignition Wire Harness Retainer
729 Distributor Bolt
730 Distributor
731 Ignition Wire Harness - Left
732 Ignition Wire Harness Retainer
733 Ignition Wire Harness Retainer
734 Ignition Wire Harness Retainer
735 Distributor Gasket
740 Spark Plug

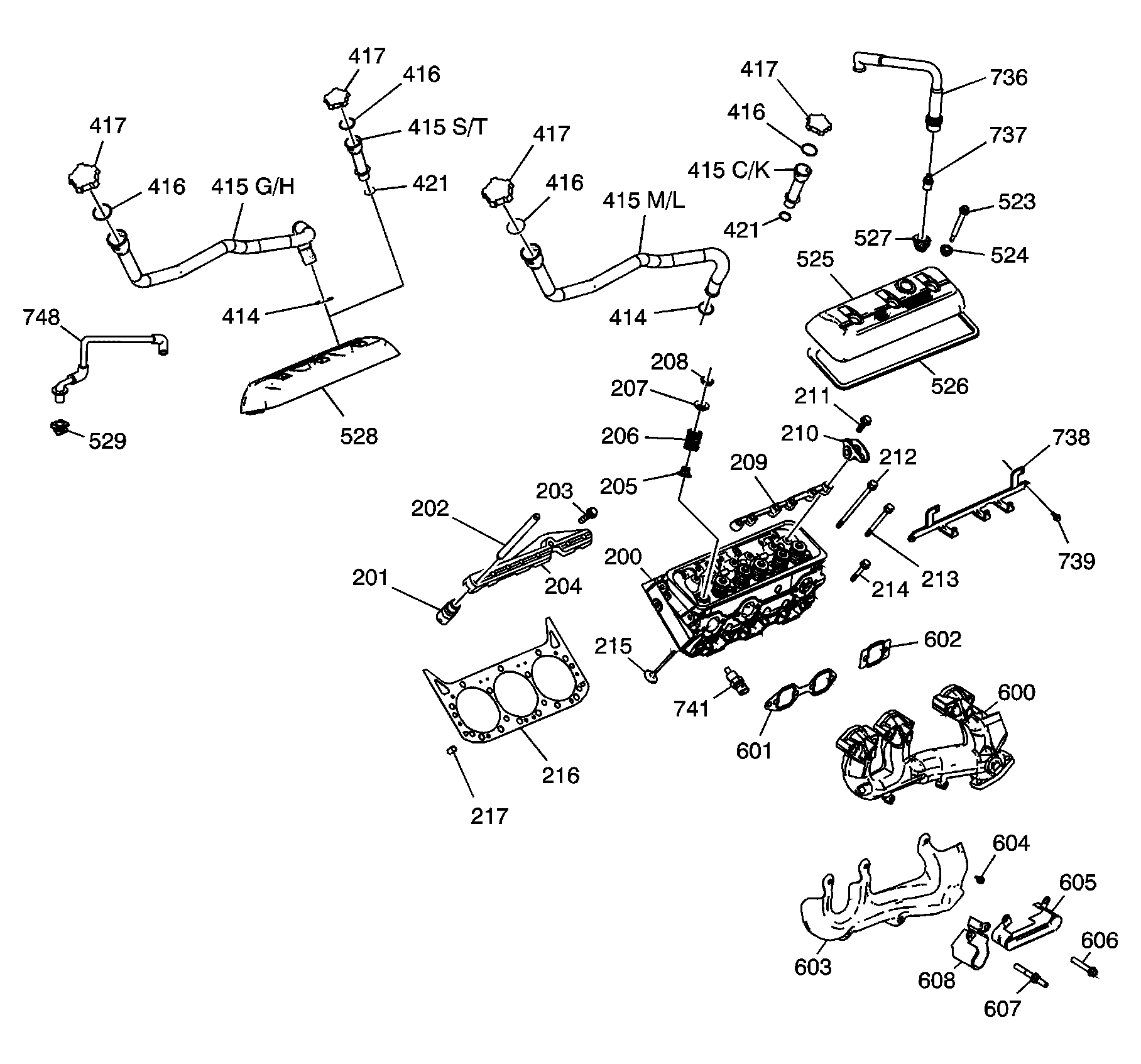

Fig 3: Upper Engine View 2
GM1312860Courtesy of GENERAL MOTORS CORP.
Callout Component Name
200 Cylinder Head
201 Valve Lifter
202 Valve Pushrod
203 Valve Lifter Retainer Bolt
204 Valve Lifter Retainer
205 Valve Stem Oil Seal
206 Valve Spring
207 Valve Spring Cap
208 Valve Spring Key
209 Valve Rocker Arm Support
210 Valve Rocker Arm
211 Valve Rocker Arm Bolt
212 Cylinder Head Bolt - Long
213 Cylinder Head Bolt - Medium
214 Cylinder Head Bolt - Short
215 Valve
216 Cylinder Head Gasket
217 Cylinder Head Locating Pin
414 Oil Fill Tube Grommet
415 Oil Fill Tube - G/H
415 Oil Fill Tube - S/T
415 Oil Fill Tube - M/L
415 Oil Fill Tube - C/K
416 Oil Fill Cap Seal
416 Oil Fill Cap Seal
416 Oil Fill Cap Seal
416 Oil Fill Cap Seal
417 Oil Fill Cap
417 Oil Fill Cap
417 Oil Fill Cap
417 Oil Fill Cap
421 Oil Fill Tube Seal
421 Oil Fill Tube Seal
523 Valve Rocker Arm Cover Bolt
524 Valve Rocker Arm Cover Bolt Grommet
525 Valve Rocker Arm Cover - Left
526 Valve Rocker Arm Cover Gasket
527 PCV Valve Grommet
528 Valve Rocker Arm Cover - Right
529 Fresh Air Tube Grommet
600 Exhaust Manifold
601 Exhaust Manifold Gasket - Large
602 Exhaust Manifold Gasket - Small
603 Exhaust Manifold Heat Shield
604 Exhaust Manifold Heat Shield Bolt
605 Spark Plug Wire Heat Shield - Large
606 Exhaust Manifold Bolt
607 Exhaust Manifold Stud
608 Spark Plug Wire Heat Shield - Small
736 PCV Hose
737 PCV Valve
738 Ignition Wire Bracket
739 Ignition Wire Bracket Bolt
741 Engine Coolant Temperature Sensor
748 Fresh Air Tube

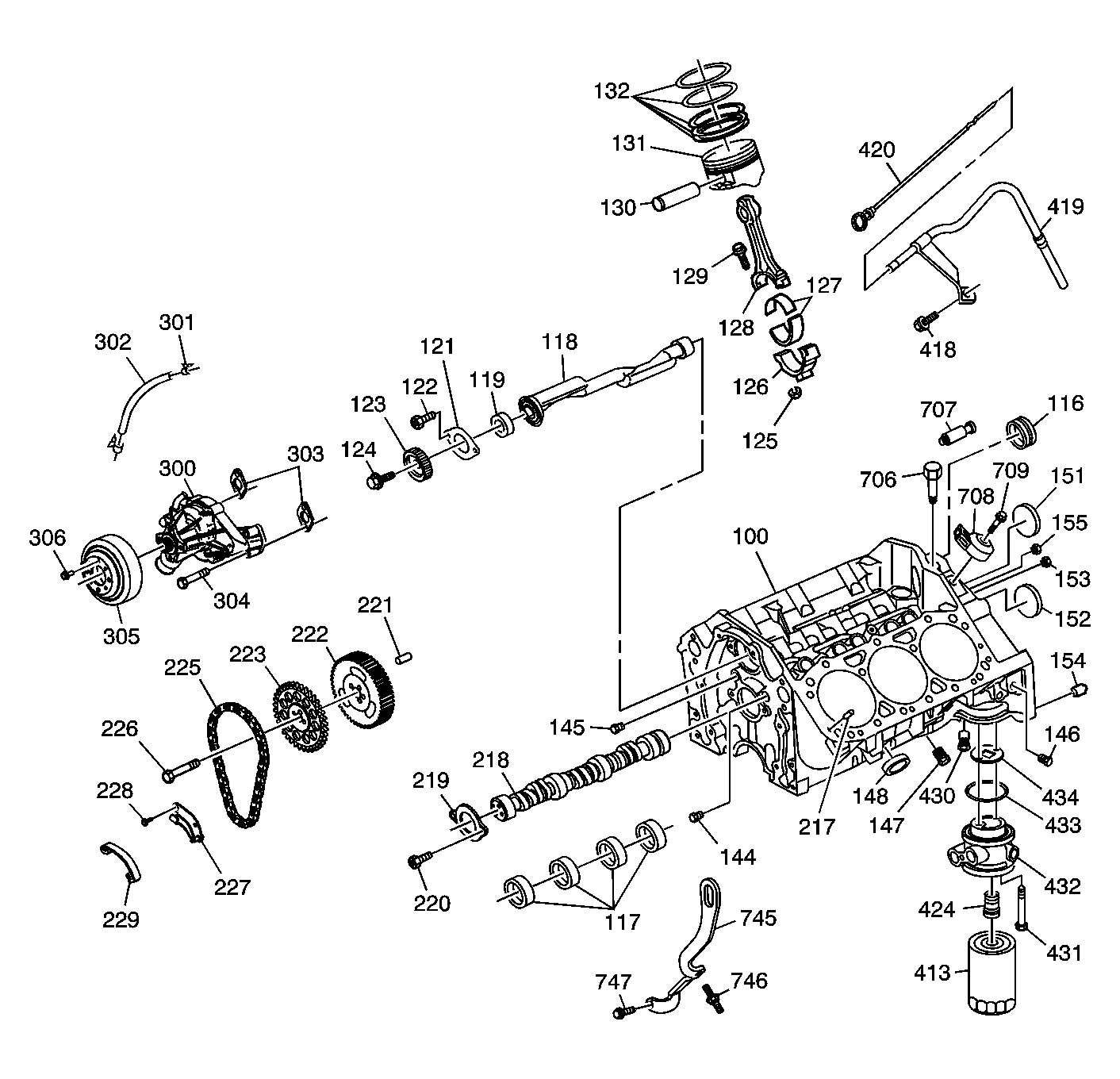

Fig 4: Lower Engine View 1
GM1312884Courtesy of GENERAL MOTORS CORP.
Callout Component Name
100 Engine Block
116 Balance Shaft Bearing - Rear
117 Camshaft Bearing
118 Balance Shaft
119 Balance Shaft Bearing - Front
121 Balance Shaft Retainer Plate
122 Balance Shaft Retainer Plate Bolt
123 Balance Shaft Driven Gear
124 Balance Shaft Driven Gear Bolt
125 Connecting Rod Nut
126 Connecting Rod Cap
127 Connecting Rod Bearing
128 Connecting Rod
129 Connecting Rod Bolt
130 Piston Pin
131 Piston
132 Piston Ring Set
144 Front Oil Gallery Plug - Left
145 Front Oil Gallery Plug - Right
146 Side Oil Gallery Plug - Left
147 Engine Block Coolant Drain Plug - Left
148 Engine Block Core Plug
151 Balance Shaft Rear Bearing Hole Plug
152 Camshaft Rear Bearing Hole Plug
153 Rear Oil Gallery Plug - Left
154 Transmission Locating Pin
155 Rear Oil Gallery Plug - Right
217 Cylinder Head Locating Pin
218 Camshaft
219 Camshaft Retainer Plate
220 Camshaft Retaining Plate Bolt
221 Camshaft Drive Gear Locating Pin
222 Camshaft Drive Gear
223 Camshaft Timing Gear
225 Timing Chain
226 Camshaft Timing Gear Bolt
227 Timing Chain Tensioner Bracket
228 Timing Chain Tensioner Bracket Bolt
229 Timing Chain Tensioner Shoe
300 Water Pump
301 Water Pump Bypass Hose Clamp
302 Water Pump Bypass Hose
303 Water Pump Gasket
304 Water Pump Bolt
305 Water Pump Pulley
306 Water Pump Pulley Bolt
413 Oil Filter
418 Oil Level Indicator Tube Bolt
419 Oil Level Indicator Tube
420 Oil Level Indicator
424 Oil Pressure Relief Valve O-Ring Seal
430 Oil Filter Bypass Valve
431 Oil Cooler Adapter Bolt
432 Oil Cooler Adapter
433 Oil Cooler Adapter Seal
434 Oil Cooler Adapter Gasket
706 Oil Pressure Sensor Fitting
707 Oil Pressure Sensor
708 Knock Sensor
709 Knock Sensor Bolt
745 Engine Lift Bracket - Front
746 Engine Lift Bracket Stud - Front
747 Engine Lift Bracket Bolt - Front

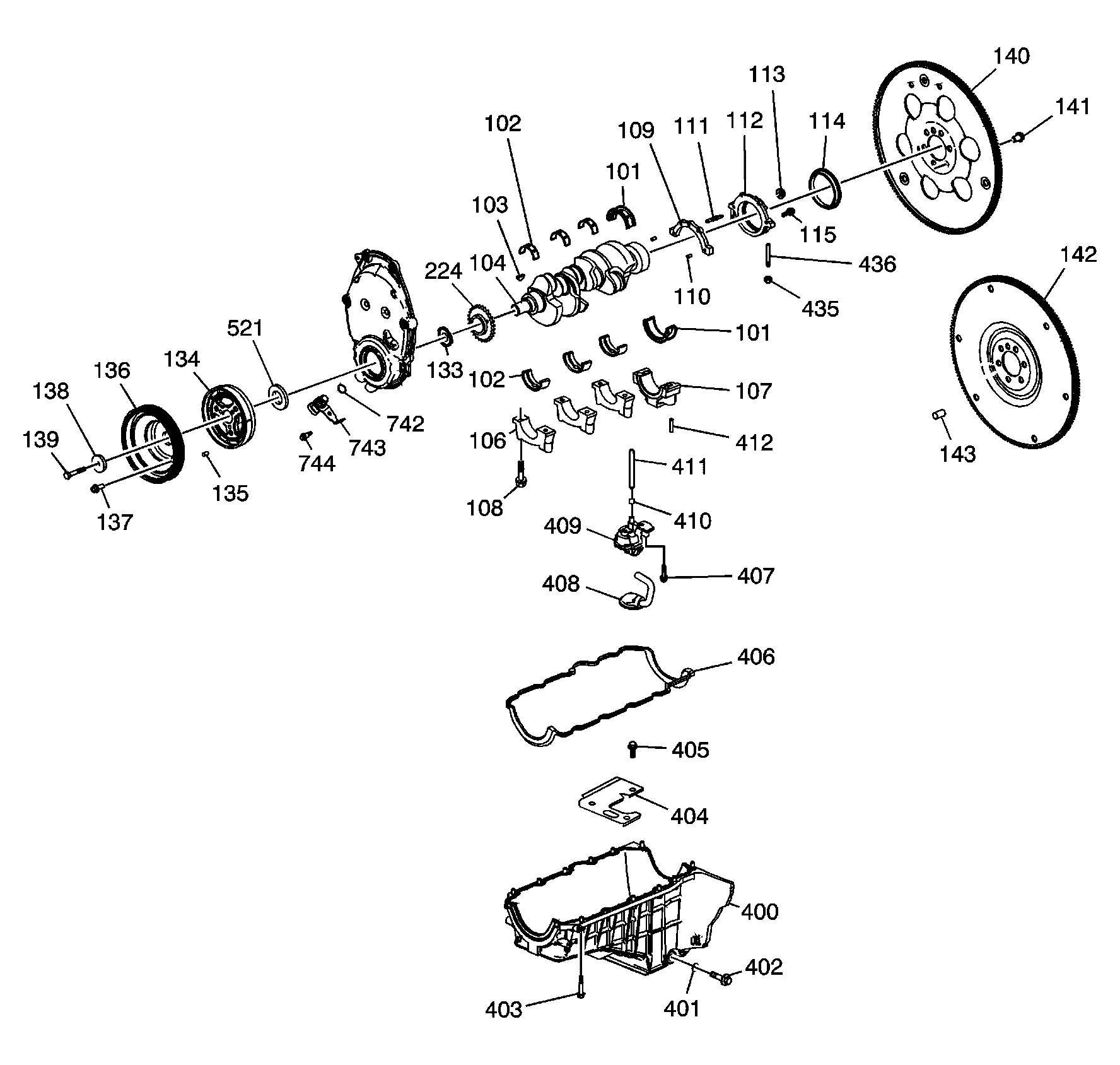

Fig 5: Lower Engine View 2
GM1312885Courtesy of GENERAL MOTORS CORP.
Callout Component Name
101 Crankshaft Main Bearing - Thrust
101 Crankshaft Main Bearing - Thrust
102 Crankshaft Main Bearing
102 Crankshaft Main Bearing
103 Crankshaft Balancer Key
104 Crankshaft
106 Crankshaft Main Bearing Cap
107 Crankshaft Main Bearing Cap - Thrust
108 Crankshaft Main Bearing Cap Bolt
109 Crankshaft Rear Oil Seal Housing Gasket
110 Crankshaft Rear Oil Seal Housing Locating Pin
111 Crankshaft Rear Oil Seal Housing Stud
112 Crankshaft Rear Oil Seal Housing
113 Crankshaft Rear Oil Seal Housing Nut
114 Crankshaft Rear Oil Seal
115 Crankshaft Rear Oil Seal Housing Bolt
133 Crankshaft Position Sensor Reluctor Ring
134 Crankshaft Balancer
135 Crankshaft Balancer Weight
136 Crankshaft Drive Belt Pulley
137 Crankshaft Drive Belt Pulley Bolt
138 Crankshaft Balancer Washer
139 Crankshaft Balancer Bolt
140 Flywheel - Auto Transmission
141 Flywheel Bolt
142 Flywheel - Manual Transmission
143 Flywheel Weight - Manual Transmission
224 Crankshaft Timing Sprocket
400 Oil Pan
401 Oil Pan Drain Plug Seal
402 Oil Pan Drain Plug
403 Oil Pan Bolt
404 Oil Pan Baffel
405 Oil Pan Baffel Bolt
406 Oil Pan Gasket
407 Oil Pump Bolt
408 Oil Pump Pick Up Screen
409 Oil Pump
410 Oil Pump Drive Retainer
411 Oil Pump Drive Shaft
412 Oil Pump Locating Pin
435 Oil Pan Nut
436 Crankshaft Rear Oil Seal Housing Stud
521 Crankshaft Front Oil Seal
742 Crankshaft Position Sensor Seal
743 Crankshaft Position Sensor
744 Crankshaft Position Sensor Bolt
