Transfer Case Control Schematics

WARNING: This page is about a different variant/trim than selected.

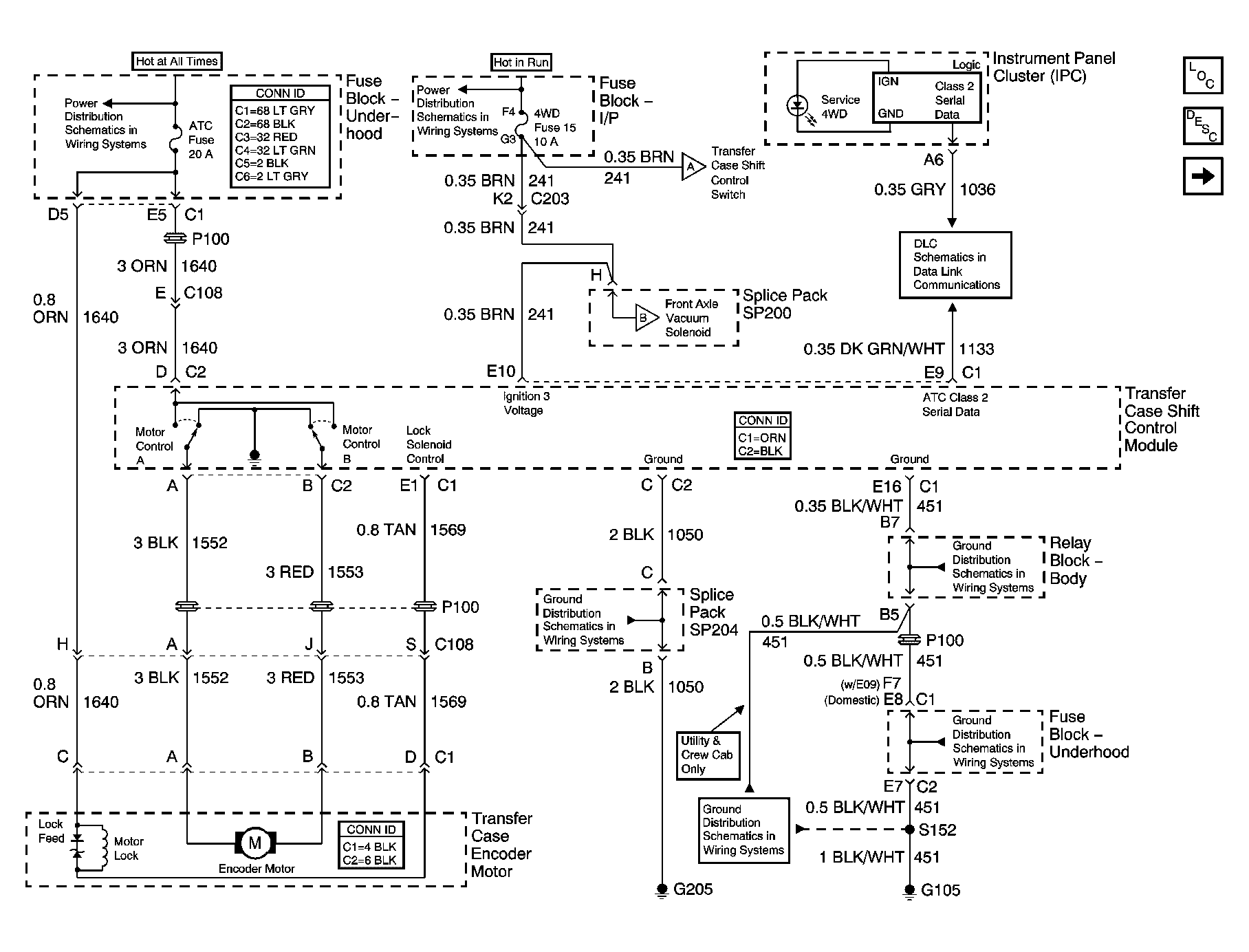

Fig 1: Power, Ground And Transfer Case Encoder Motor

Courtesy of GENERAL MOTORS CORP.

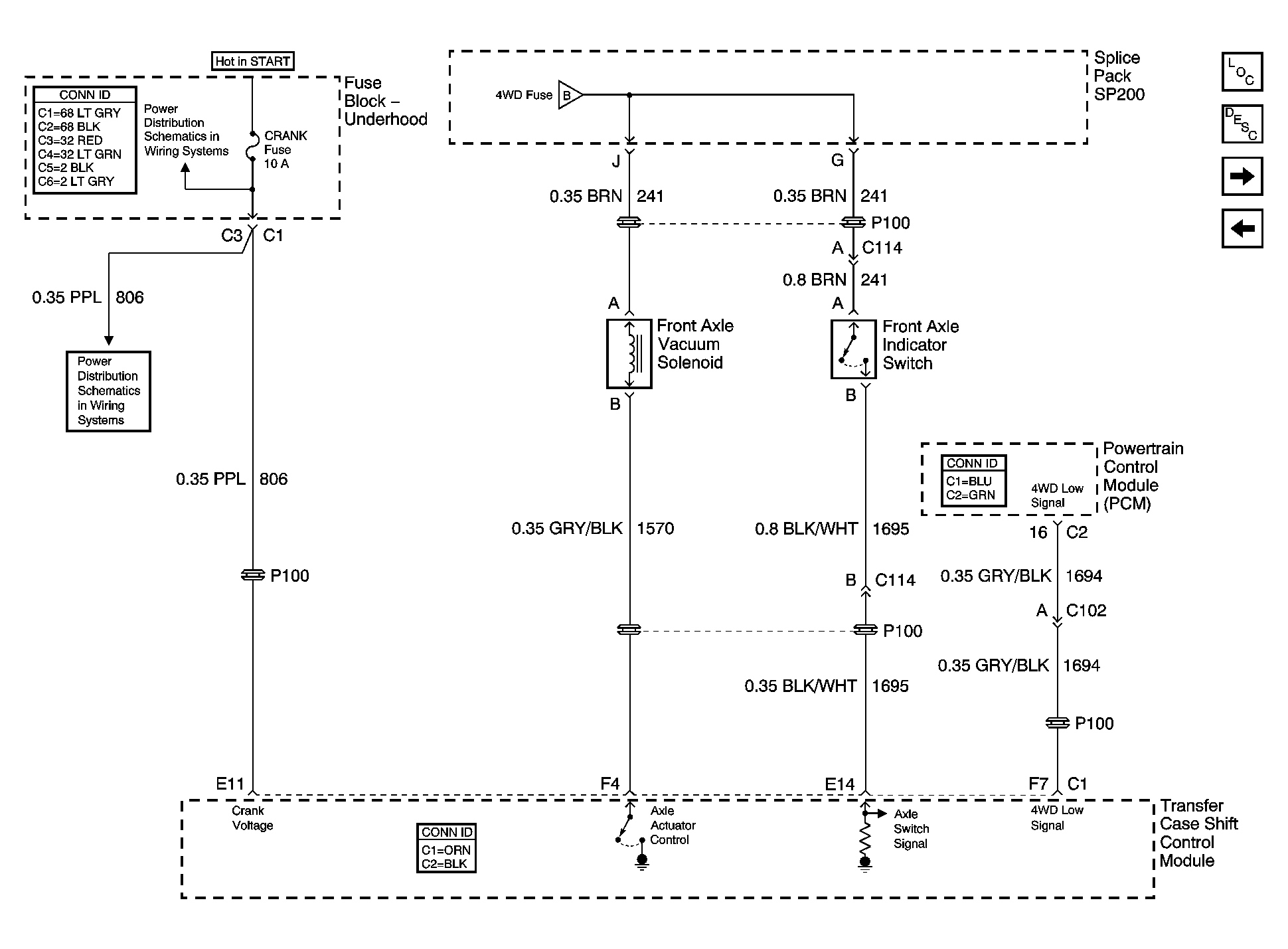

Fig 2: CRANK Fuse, Front Axle Indicator Switch, And Front Axle Vacuum Solenoid

Courtesy of GENERAL MOTORS CORP.

Fig 3: ILLUM Fuse, Shift Control Switch And Body Control Module (BCM)

Courtesy of GENERAL MOTORS CORP.

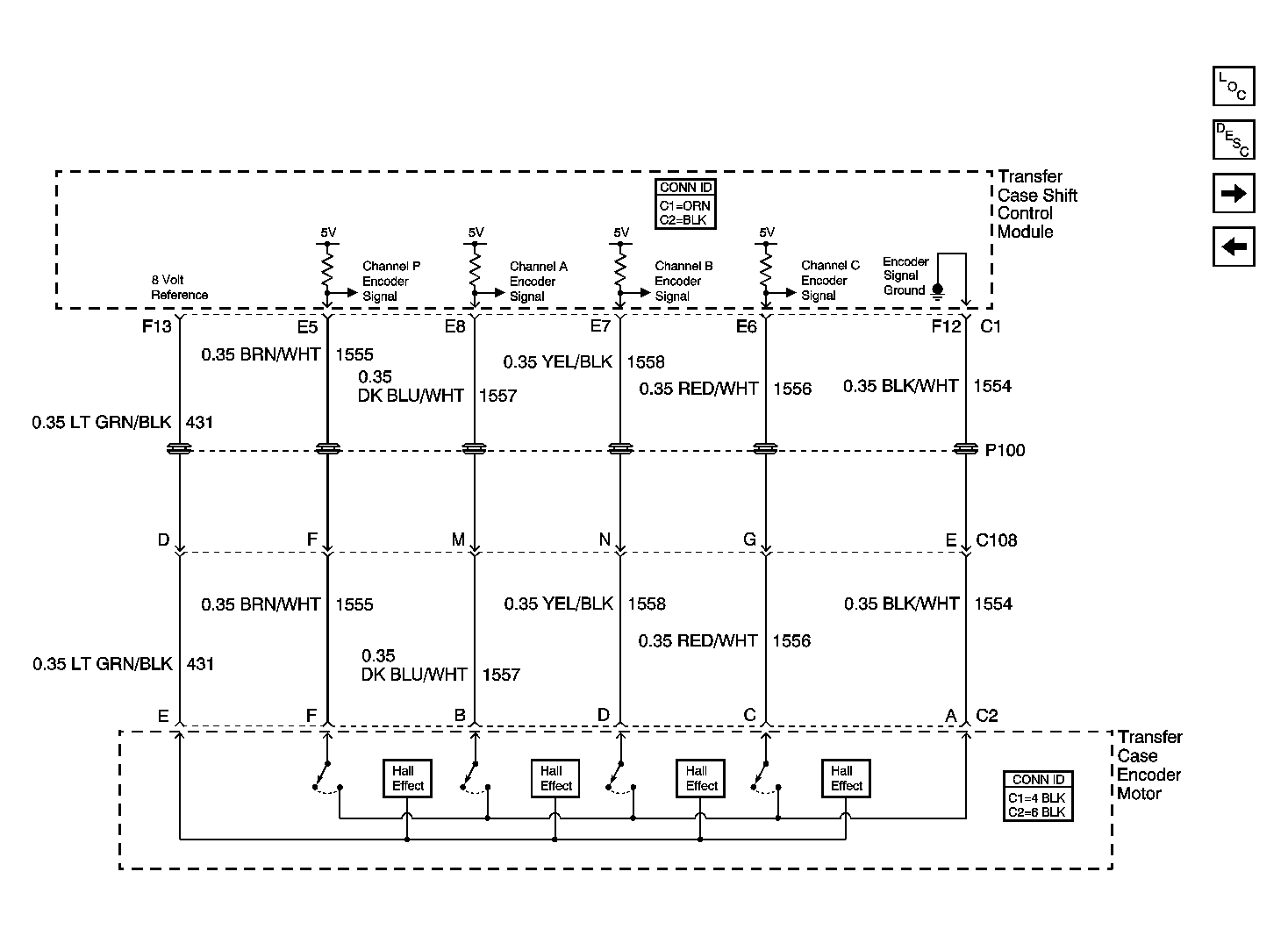

Fig 4: Transfer Case Encoder Motor And Shift Control Module

Courtesy of GENERAL MOTORS CORP.

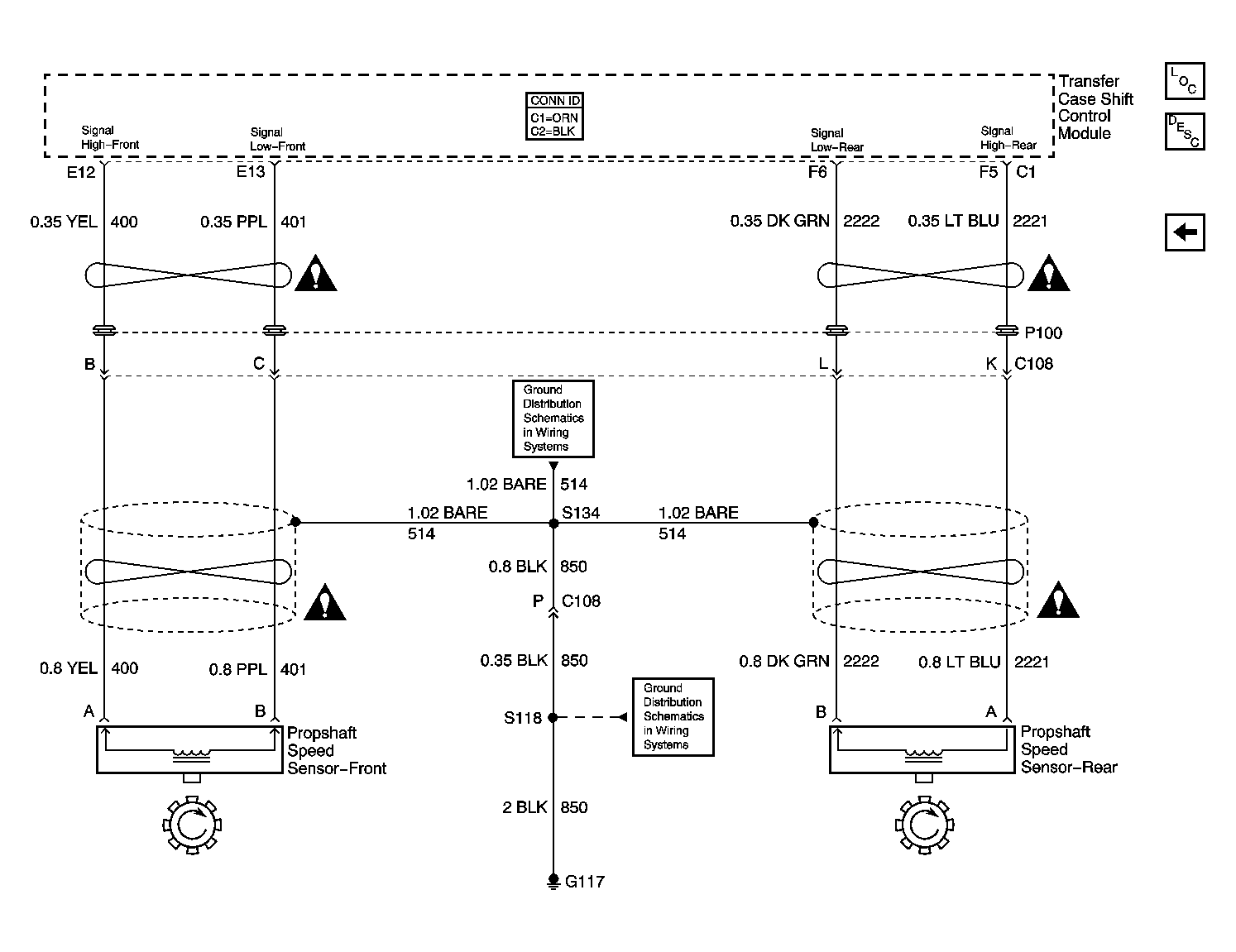

Fig 5: Speed Sensors

Courtesy of GENERAL MOTORS CORP.
