Wiper/Washer System Component Views

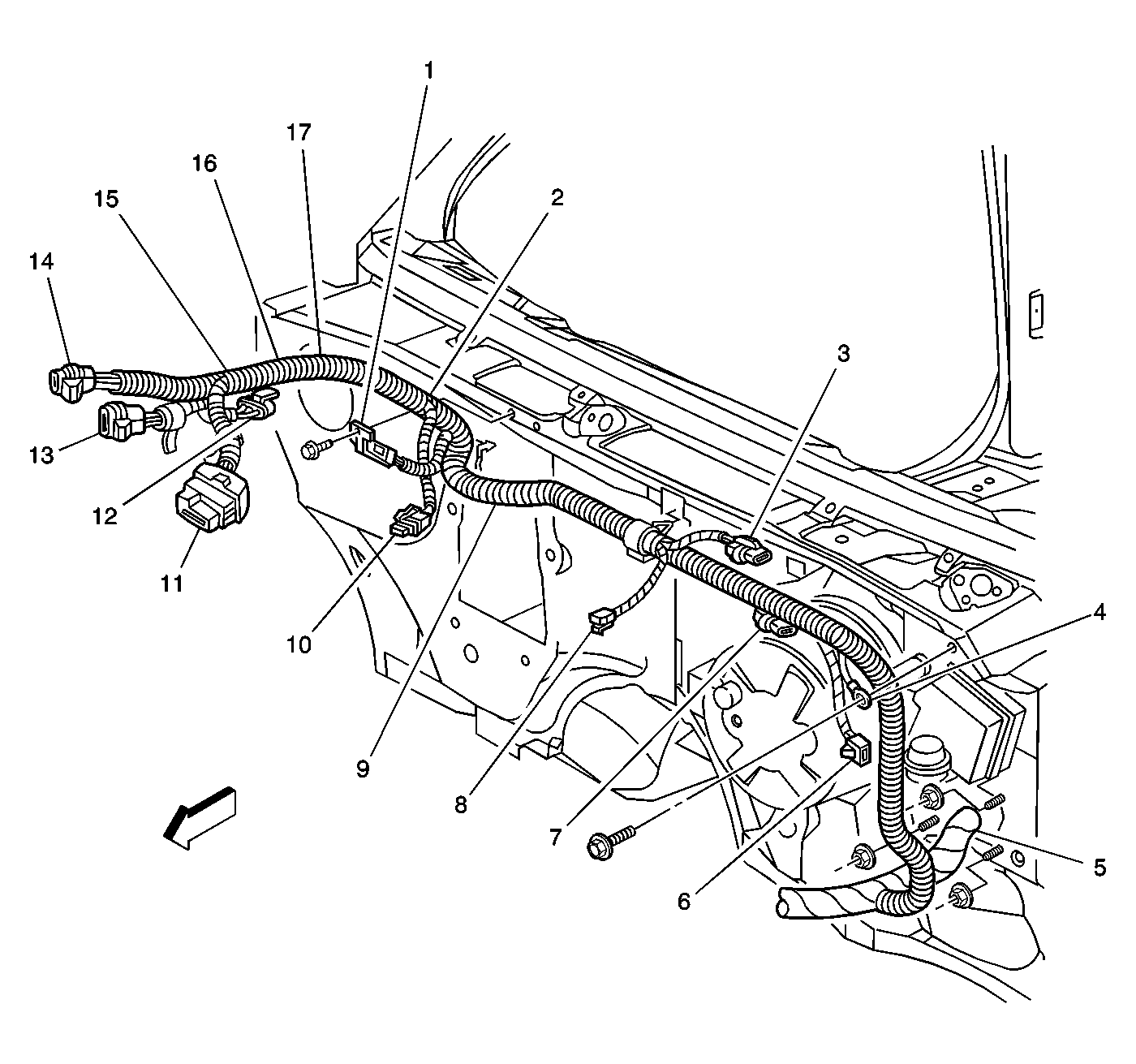

| Callout | Component Name |
|---|---|
| 1 | Blower Motor Relay Connector |
| 2 | Body Harness |
| 3 | Windshield Wiper Motor Connector |
| 4 | G117 |
| 5 | P100 |
| 6 | Cruise Control Module (CCM) Connector |
| 7 | Underhood Lamp Connector |
| 8 | Front Axle Vacuum Solenoid Connector |
| 9 | S138 |
| 10 | Blower Motor Resistor Connector |
| 11 | Not Used |
| 12 | Blower Motor Connector (C42/C60), Blower Motor Control Module (C68) |
| 13 | C101 (2.2 L) |
| 14 | C101 (4.3 L) |
| 15 | S121 |
| 16 | S113 |
| 17 | S118 |

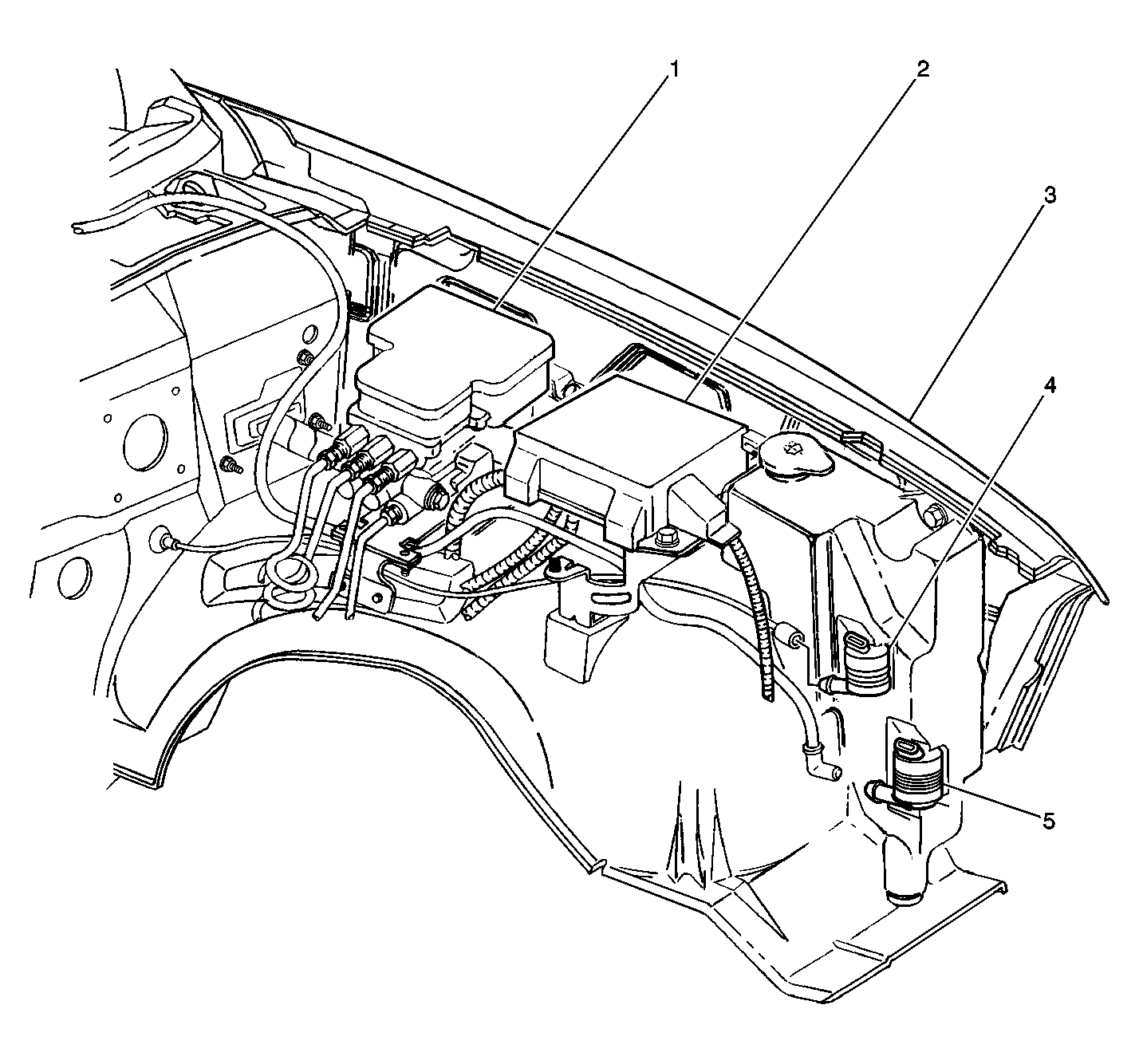

| Callout | Component Name |
|---|---|
| 1 | Electronic Brake Control Module (EBCM) |
| 2 | Fuse Block - Underhood |
| 3 | Fender, LF |
| 4 | Rear Window Washer Fluid Pump |
| 5 | Windshield Washer Fluid Pump |
| Callout | Component Name |
|---|---|
| 1 | Instrument Panel (I/P) |
| 2 | Transfer Case Shift Control Switch |
| 3 | Inflatable Restraint I/P Module Switch (Pickup Only) |
| 4 | Auxiliary Power Outlet - Right |
| 5 | Auxiliary Power Outlet - Left |
| 6 | I/P Tray, Ashtray and Cigar Lighter |
| 7 | Rear Wiper/Washer Switch and Endgate/Liftglass Window Release Switch (Utility) |
| 8 | Transfer Case Shift Control Switch C2 |
| 9 | Transfer Case Shift Control Switch C1 |

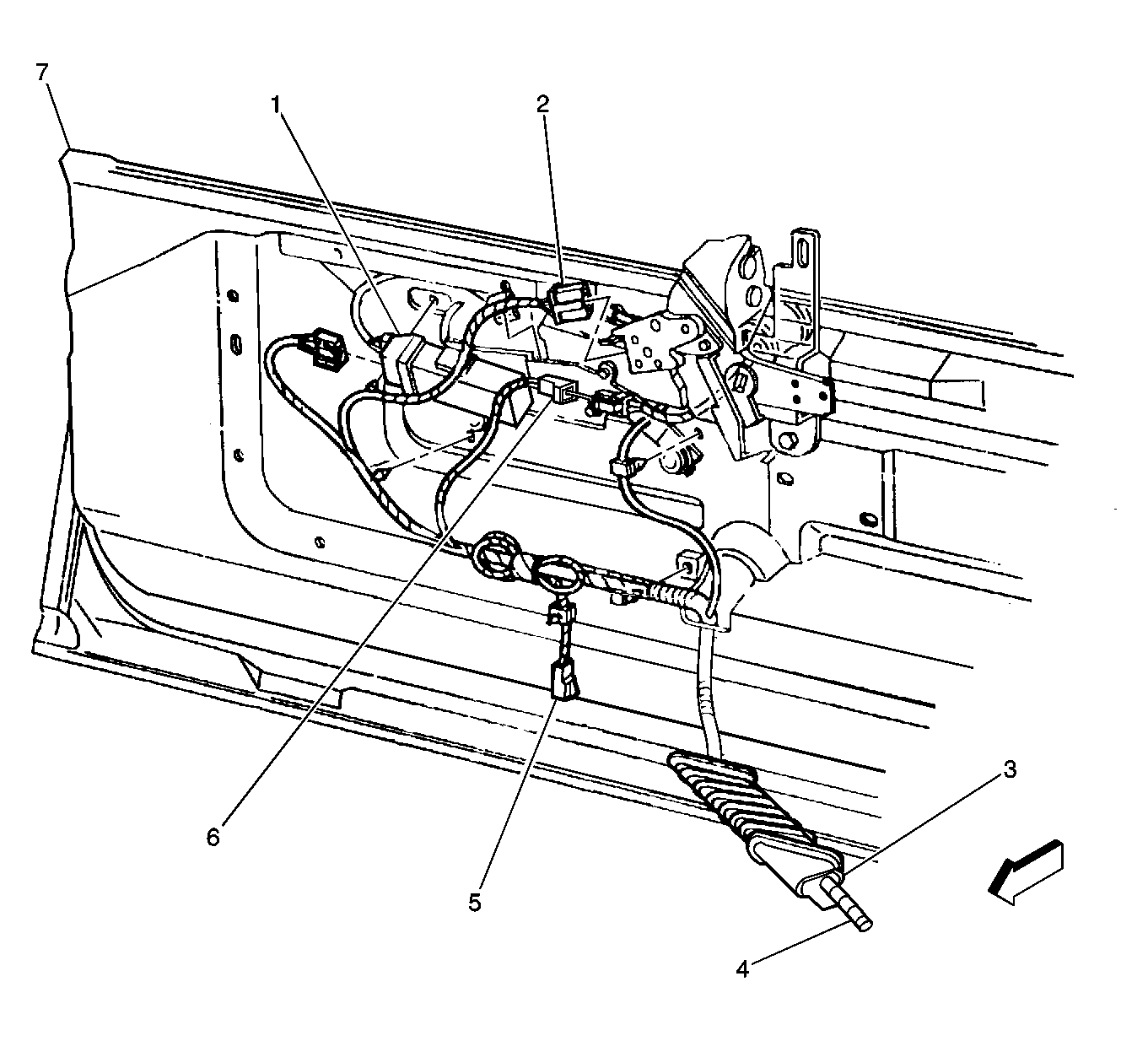

| Callout | Component Name |
|---|---|
| 1 | Window Wiper Motor Controller - Rear |
| 2 | Rear Window Wiper Cutout and Liftglass Ajar Jamb Switch |
| 3 | P900 |
| 4 | Endgate Harness |
| 5 | Liftglass Release Actuator |
| 6 | Liftglass/Endgate Lock Cylinder Switch |
| 7 | Endgate |
