Installation Procedure

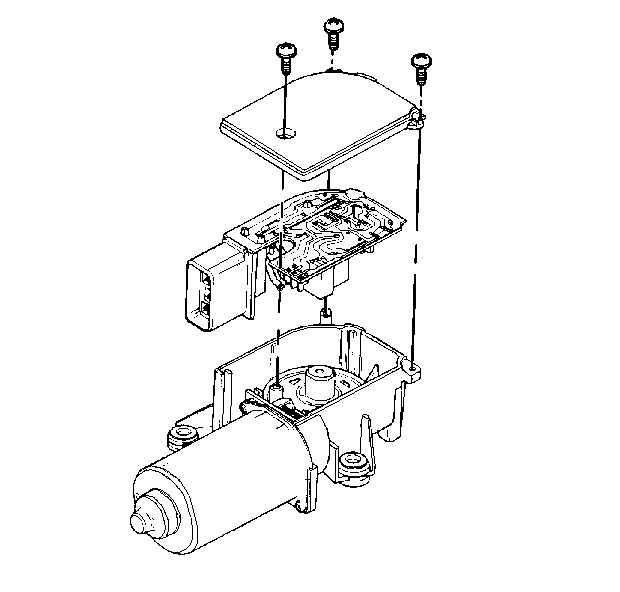

    Fig 1: View Of Front Wiper Motor Module Cover Screws
    GM348761Courtesy of GENERAL MOTORS CORP.
  1. Install the circuit board and terminal module.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the cover and three screws.

    Tighten:  Tighten the screws to 2.6 N.m (23 lb in).

  3. Install the wiper motor electrical connector.
