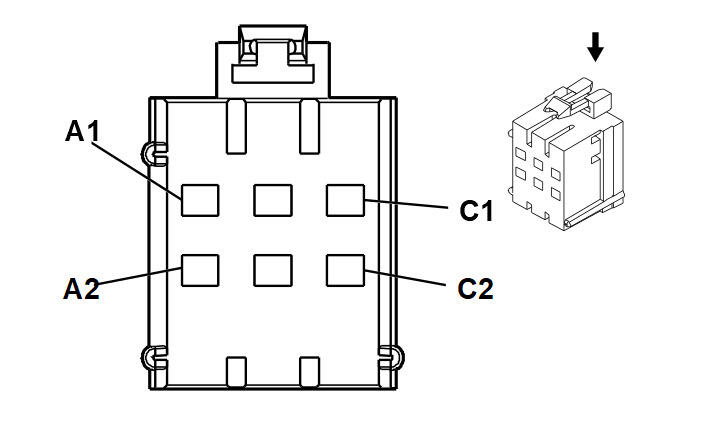

Turn Signal/Hazard Flasher Module Connector End View

Turn Signal/Hazard Flasher Module

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12110541 6-Way F Metri-Pack 280 Series (BLK)
Pin	Wire Color	Circuit No.	Function
A1	LT BLU	1508	Turn/Hazard Module Supply Voltage
	GRY	1696	Turn/Hazard Module 2 Supply Voltage ( Export)
A2	-	-	Not Used
B1	GRY	1696	Turn/Hazard Module 2 Supply Voltage
B2	BLK	1050	Ground
C1	PPL	1697	Turn/Hazard Module Signal
C2	-	-	Not Used
