Transfer Case Shift Control Switch Connector End Views

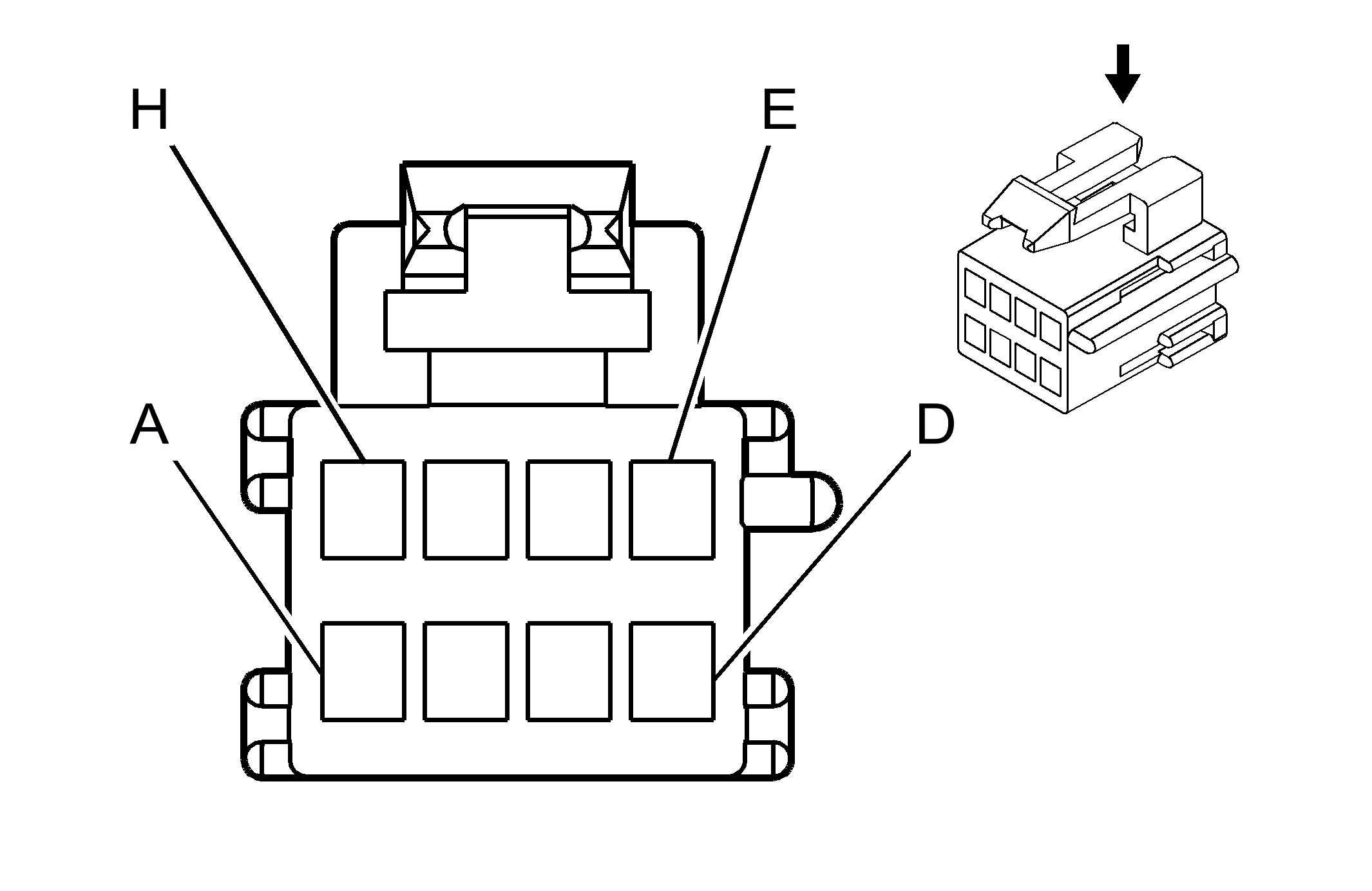

Transfer Case Shift Control Switch C1

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12064766 8-Way F Metri-Pack 150 Series (BLU)
Pin	Wire Color	Circuit No.	Function
A	GRY/BLK	1564	4 HI Switch Signal
B	DK GRN/ WHT	1562	2 HI Switch Signal
C	PPL/WHT	1565	4 LO Indicator Control
D	TAN/BLK	1566	4 HI Indicator Control
E	LT GRN/BLK	1563	2 HI Indicator Control
F	DK GRN/ WHT	1559	4 LO Switch Signal
G	BLK	1050	Ground
H	GRY	1220	Instrument Panel Lamp Fuse Supply Voltage - 2

Transfer Case Shift Control Switch C2

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12045013 4-Way F Metri-Pack 150 Series (NAT)
Pin	Wire Color	Circuit No.	Function
A	-	-	Not Used
B	PPL/WHT	1382	LED Dimming Signal
C	BRN	241	Ignition 3 Voltage
D	-	-	Not Used
