Power Door Systems Component Views

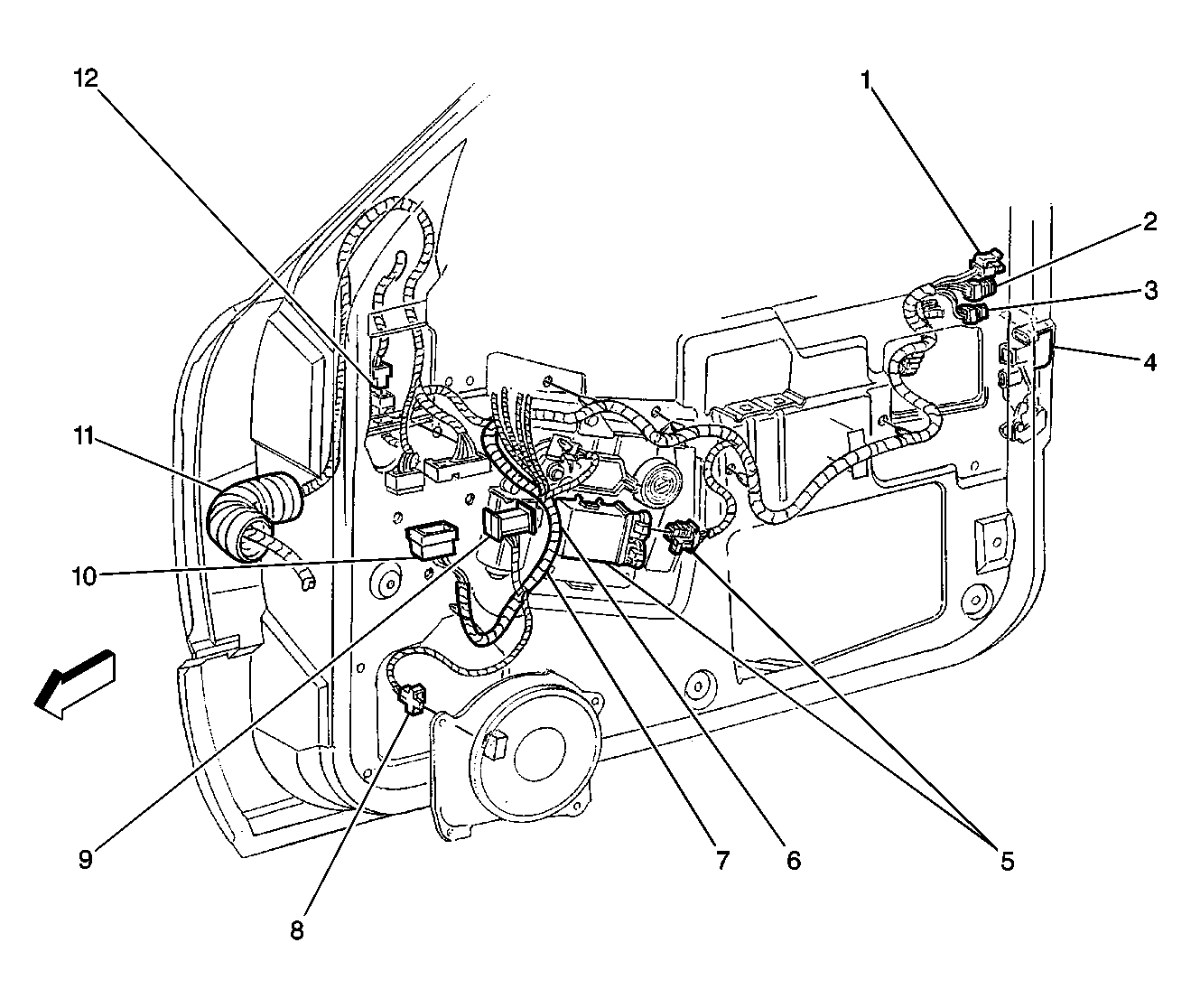

Fig 1: Front Door Component Views (Passenger Door Shown; Driver Similar)
GM416725Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Lock Cylinder Switch Connector - Front Passenger
2 Door Handle Switch Connector - Right
3 Door Lock Actuator Connector - Front Passenger
4 Door Lock Actuator - Front Passenger
5 Window Motor and Connector - Front Passenger
6 Splice S502-LH
7 Splice S601-RH, S501-LH
8 Speaker Connector - RF Door
9 C601-RH, C500-LH
10 C501-LH
11 P600-RH, P500-LH
12 Outside Rearview Mirror Connector - Passenger

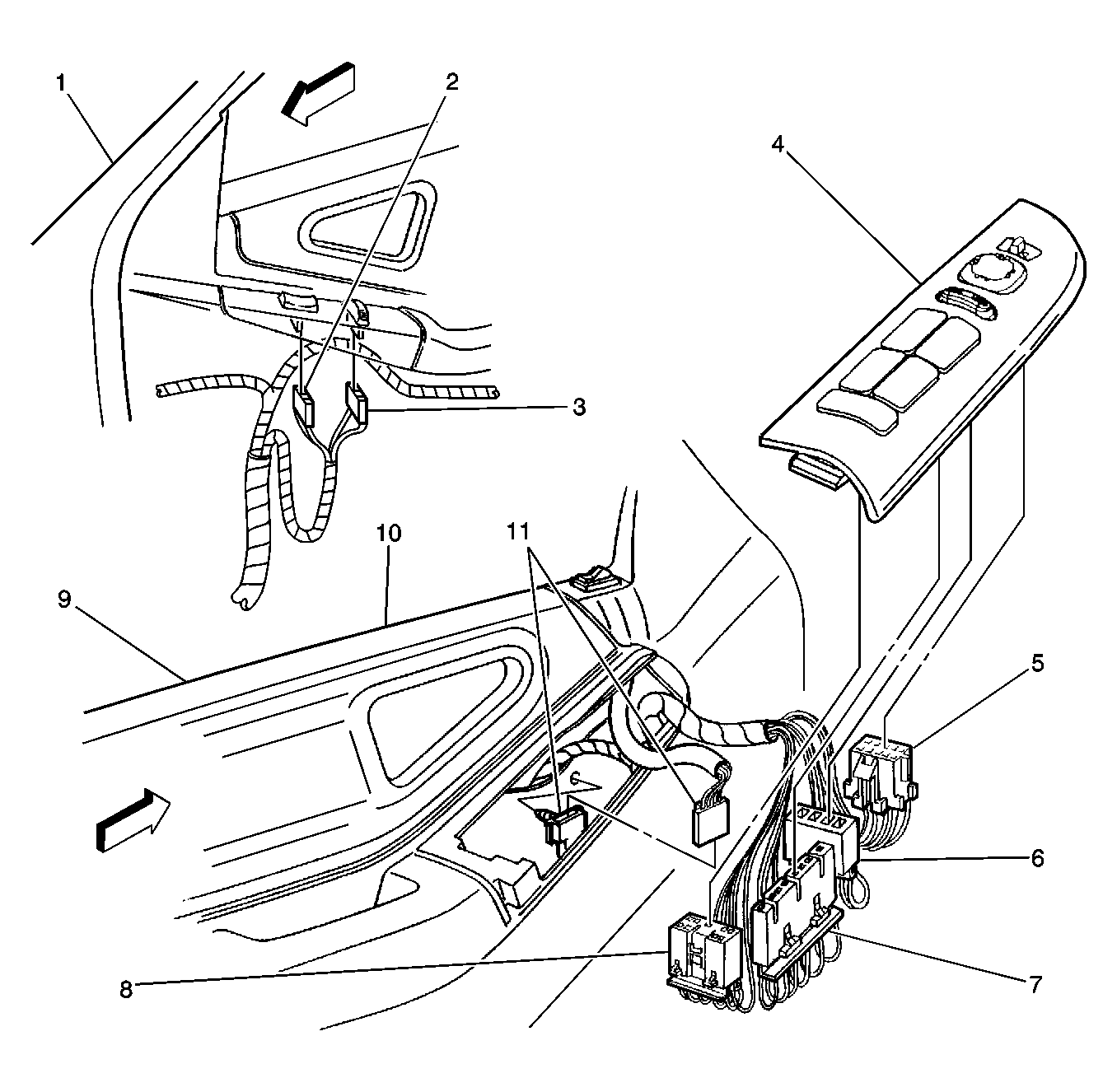

Fig 2: Door Harness Wiring Switches Component Views, Front
GM594093Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door - Front Passenger
2 Door Lock and Window Switch Connector C1 - Front Passenger
3 Door Lock and Window Switch Connector C2 - Front Passenger
4 Switch Plate
5 Outside Rearview Mirror Switch Connector
6 Window Lockout Switch Connector (4-Door Utility)
7 Door Lock and Window Switch Connector C1 - Driver
8 Door Lock and Window Switch Connector C2 - Driver
9 Door Panel - Driver
10 Door - Driver
11 Outside Rearview Power Folding Mirror Switch Connector

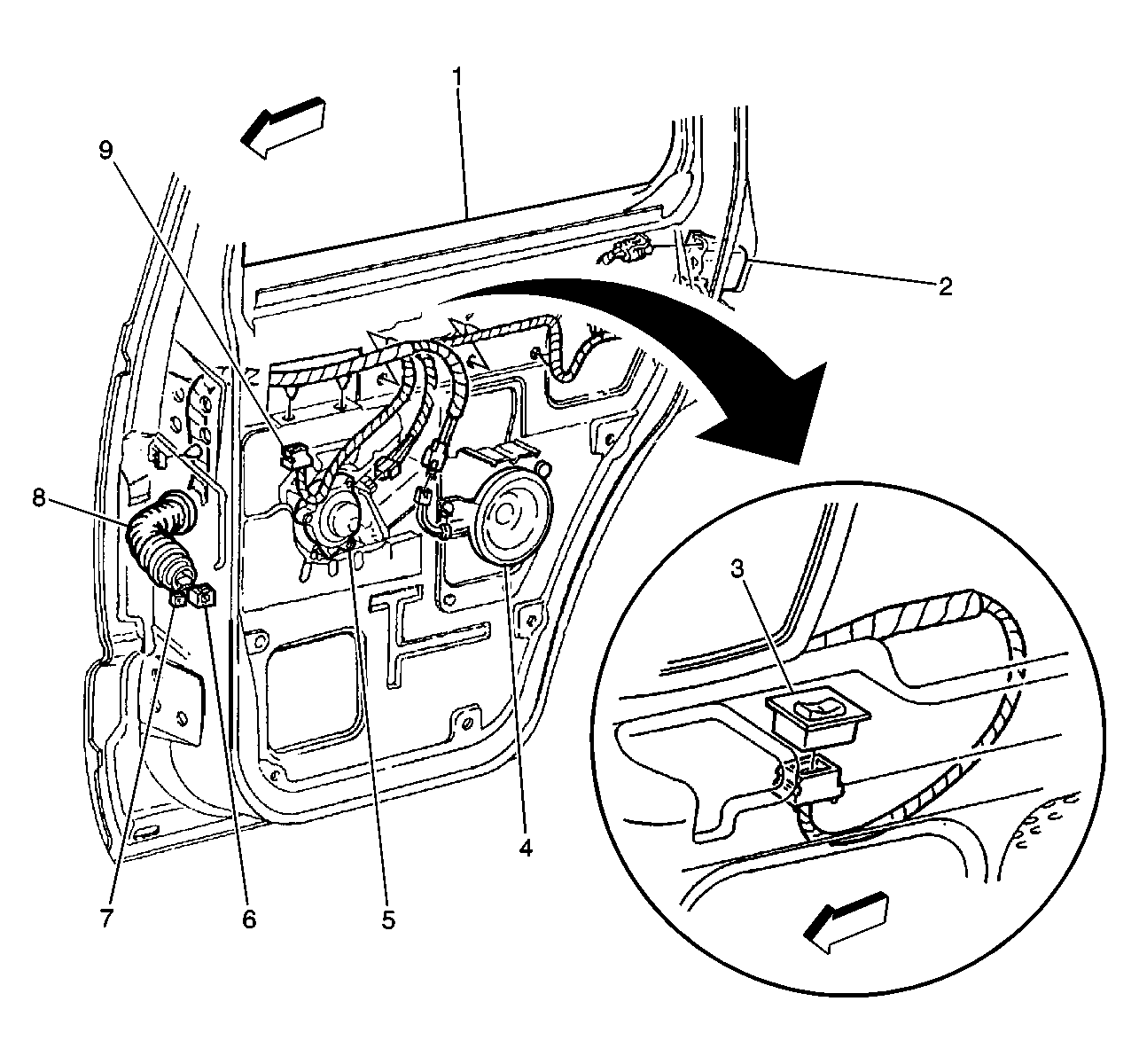

Fig 3: Door Wiring Harness Component Views (RR Shown, LR Similar)
GM357305Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door
2 Door Lock Actuator - RR
3 Window Switch - RR
4 Speaker - RR Door
5 Window Motor - RR
6 C306 (RH) or C304 (LH)
7 C307 (RH) or C305 (LH)
8 P800 (RH) or P700 (LH)
9 Window Switch Connector - RR

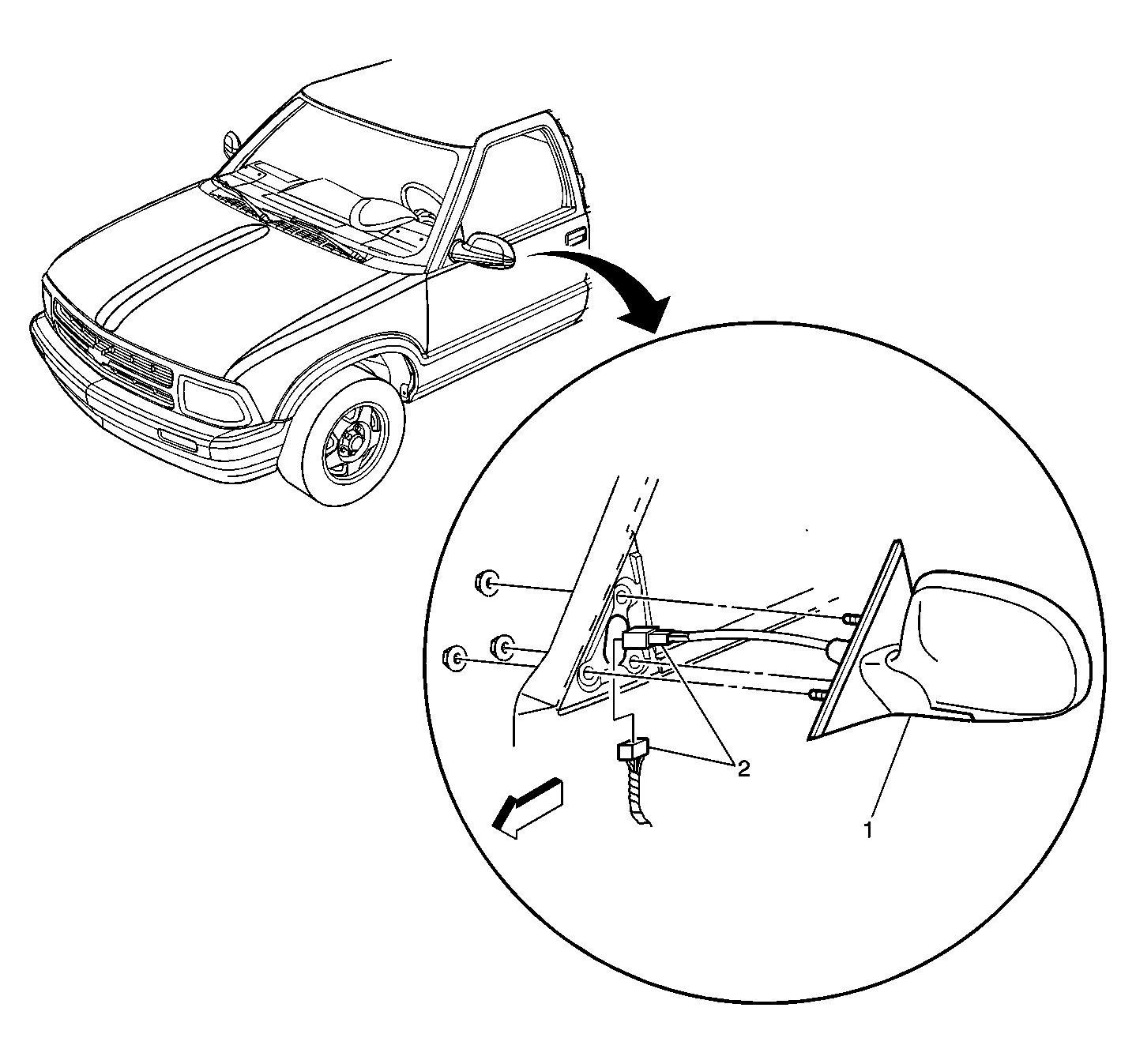

Fig 4: Outside Rearview Mirror
GM406334Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Outside Rearview Mirror - Driver (Front Passenger Similar)
2 Outside Rearview Mirror Connector - Driver (Front Passenger Similar)

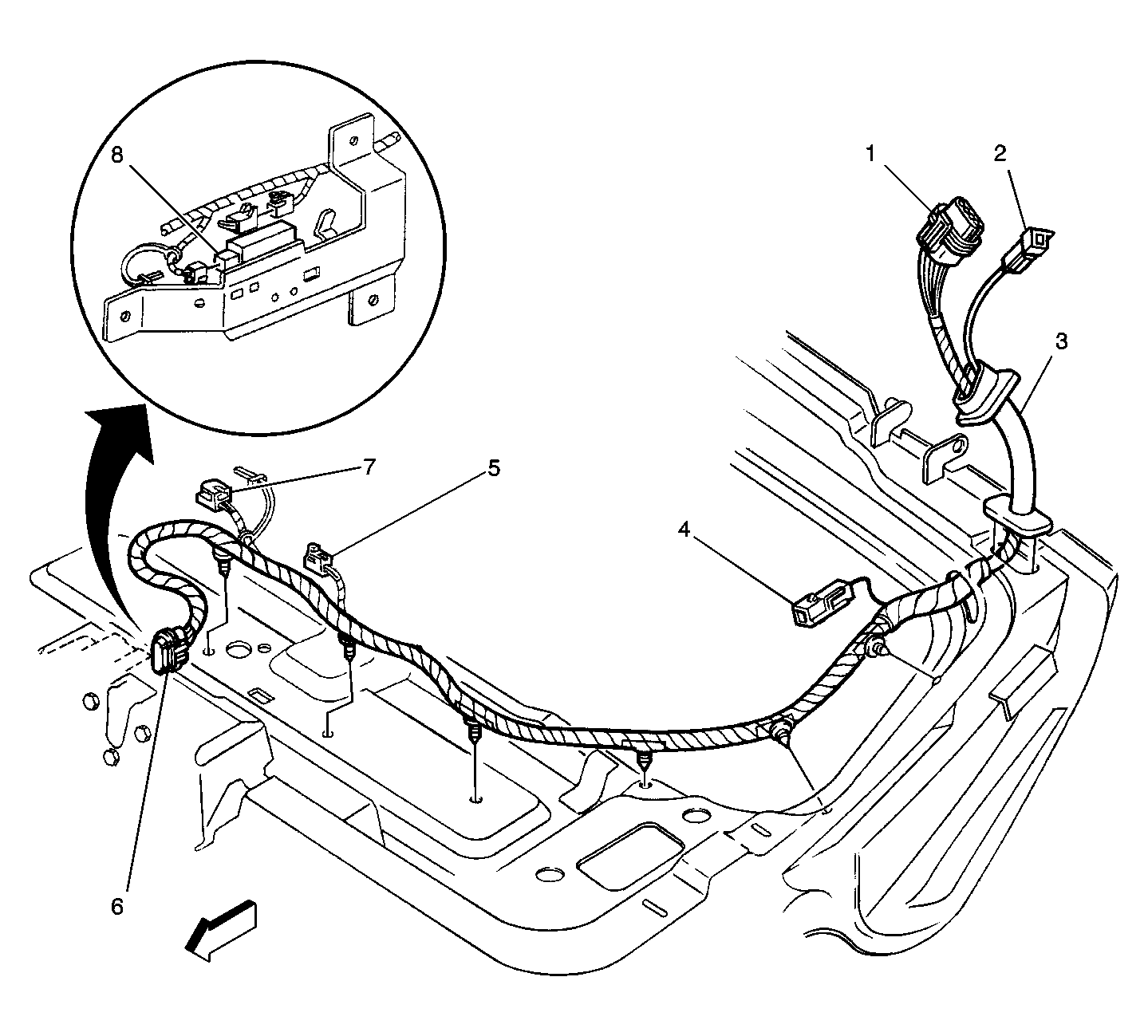

Fig 5: Liftgate (Utility) Harness View
GM357352Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C426 LH (C428 RH)
2 C427 LH (C429 RH)
3 P901
4 C432 LH (C433 RH)
5 Liftgate Switch Connector
6 Liftgate Lock Actuator Connector
7 Liftgate Window Release Actuator Connector
8 Liftgate Window Release Actuator
Fig 6: Endgate Harness Routing View
GM397727Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Window Wiper Motor Controller - Rear
2 Rear Window Wiper Cutout and Liftglass Ajar Jamb Switch
3 P900
4 Endgate Harness
5 Liftglass Release Actuator
6 Liftglass/Endgate Lock Cylinder Switch
7 Endgate
