Removal Procedure

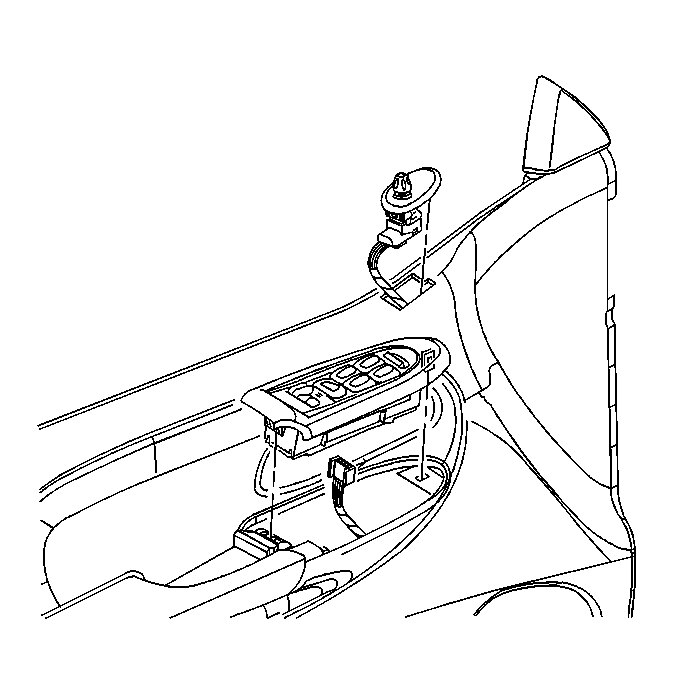

    Fig 1: Outside Mirror Switch Retaining Tabs From Trim Panel
    GM714018Courtesy of GENERAL MOTORS CORP.
  1. Carefully use a flat-bladed tool in order to release the outside mirror switch retaining tabs from the trim panel.
  2. Remove the outside mirror switch from the trim panel.
  3. Disconnect the electrical connector from the power folding mirror switch.
