Engine Electrical Component Views

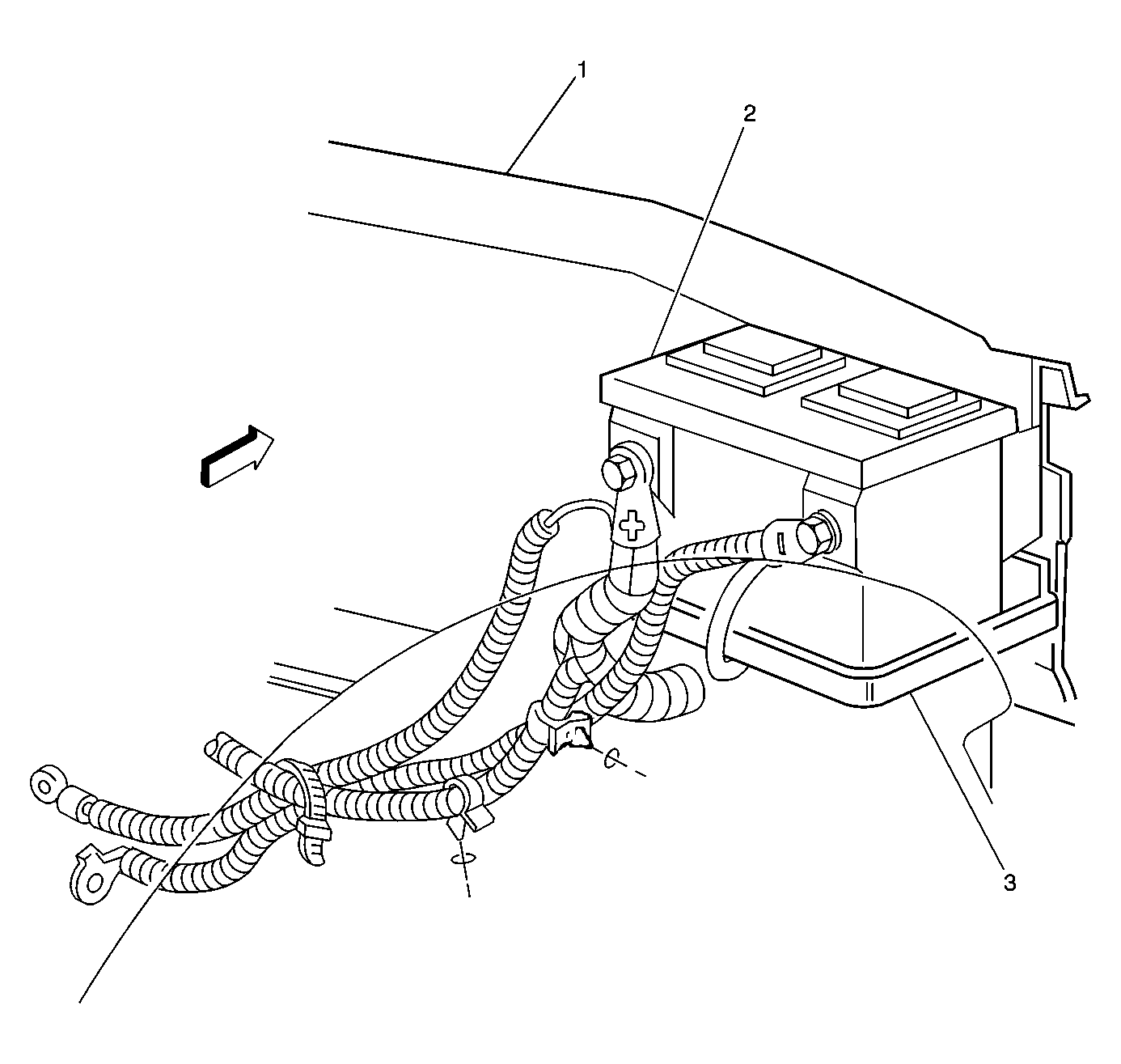

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Radiator Support |
| 2 |
Battery (2.2 L Engine shown, 4.3 L Engine similar) |
| 3 |
Battery Tray |

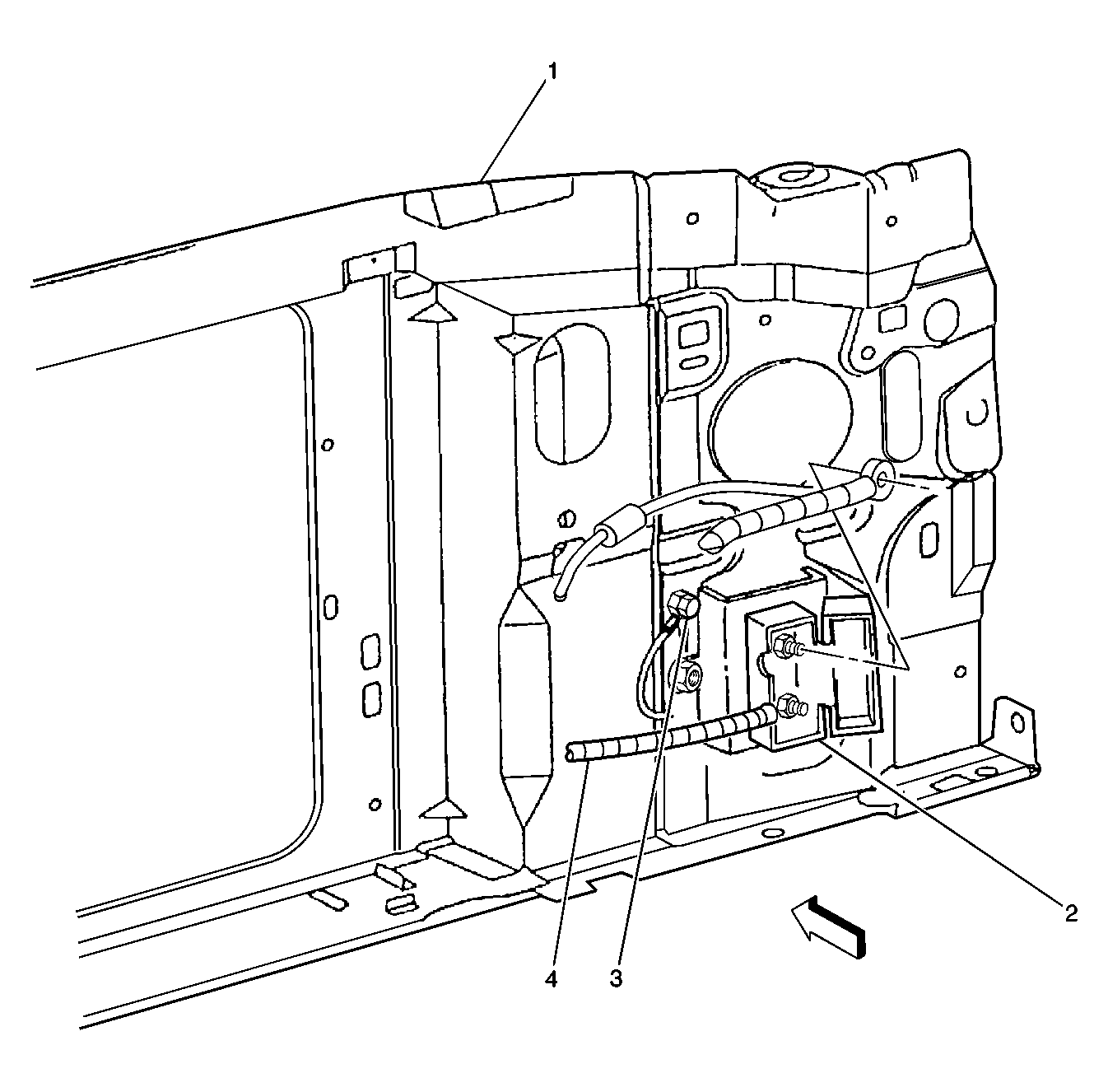

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Radiator Support |
| 2 |
Battery Fuse |
| 3 |
G108 |
| 4 |
S153 |

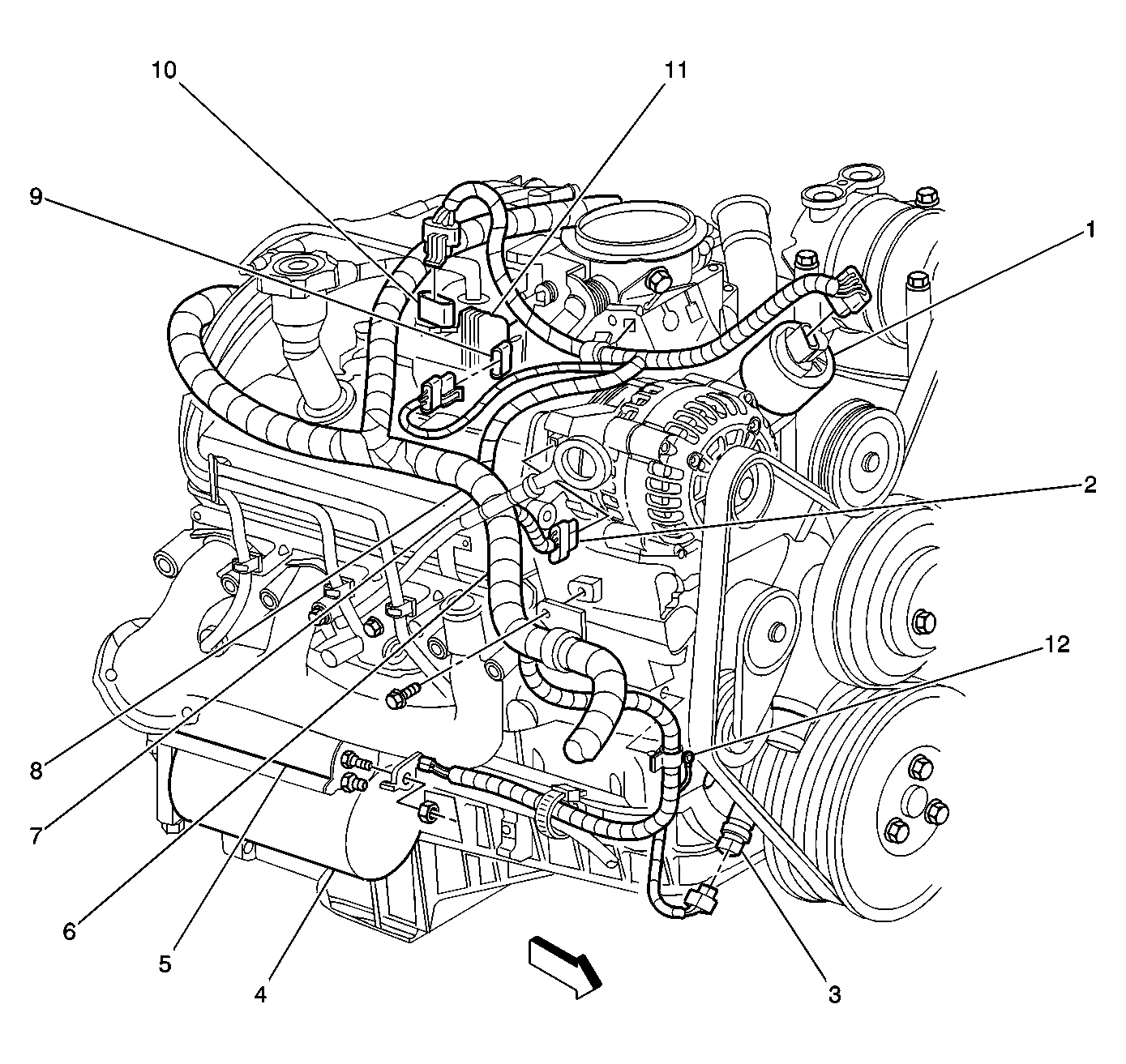

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Exhaust Gas Recirculation (EGR) Valve |
| 2 |
Generator Connector |
| 3 |
Crankshaft Position (CKP) Sensor |
| 4 |
Starter |
| 5 |
Starter Solenoid |
| 6 |
Splice S100 |
| 7 |
Splice S101 |
| 8 |
Splice S102 |
| 9 |
Ignition Control Module (ICM) |
| 10 |
Ignition Coil |
| 11 |
Ignition Coil Assembly |
| 12 |
G107 |

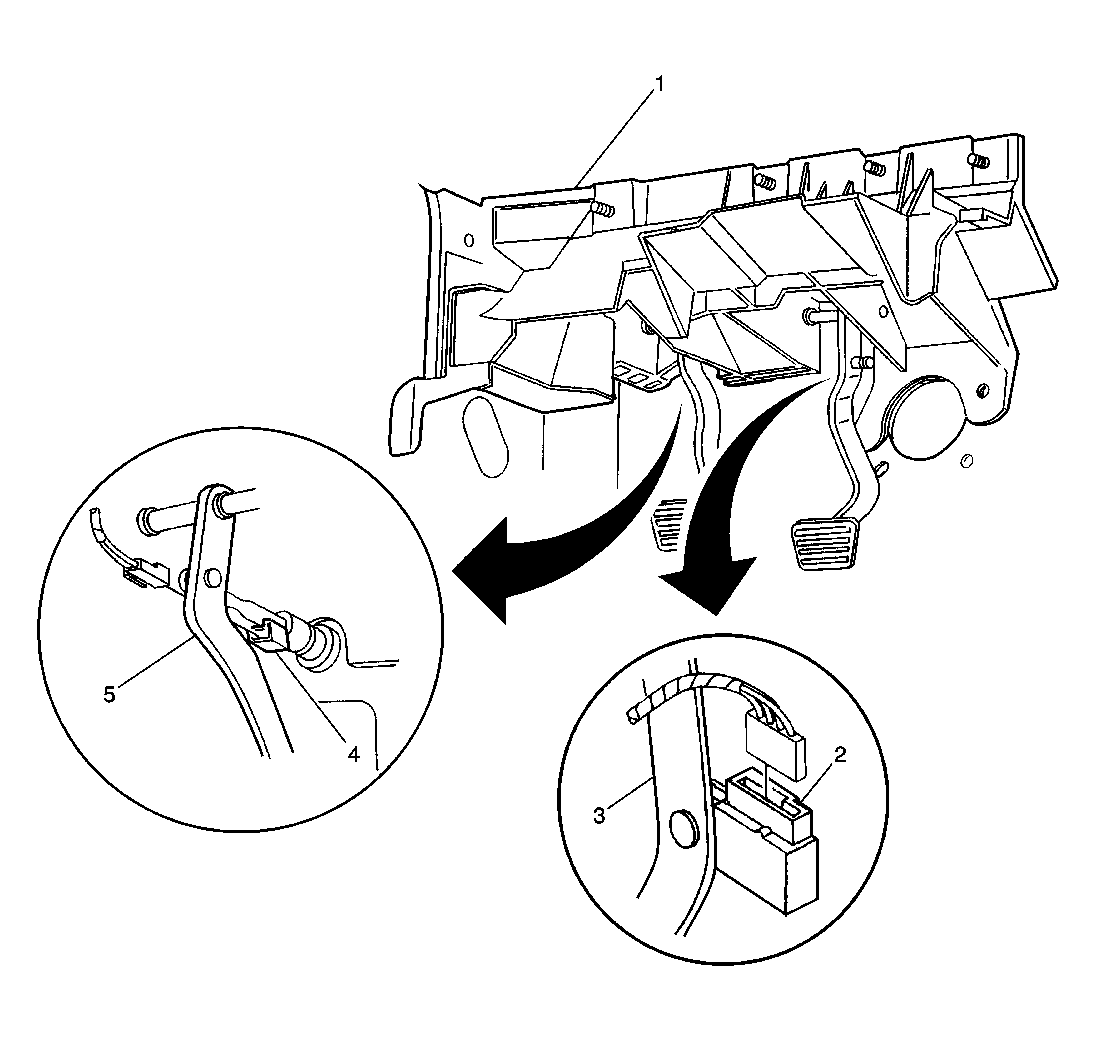

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Dash Panel |
| 2 |
Stoplamp Switch |
| 3 |
Brake Pedal |
| 4 |
Manual Transmission Clutch Start Switch |
| 5 |
Clutch Pedal |

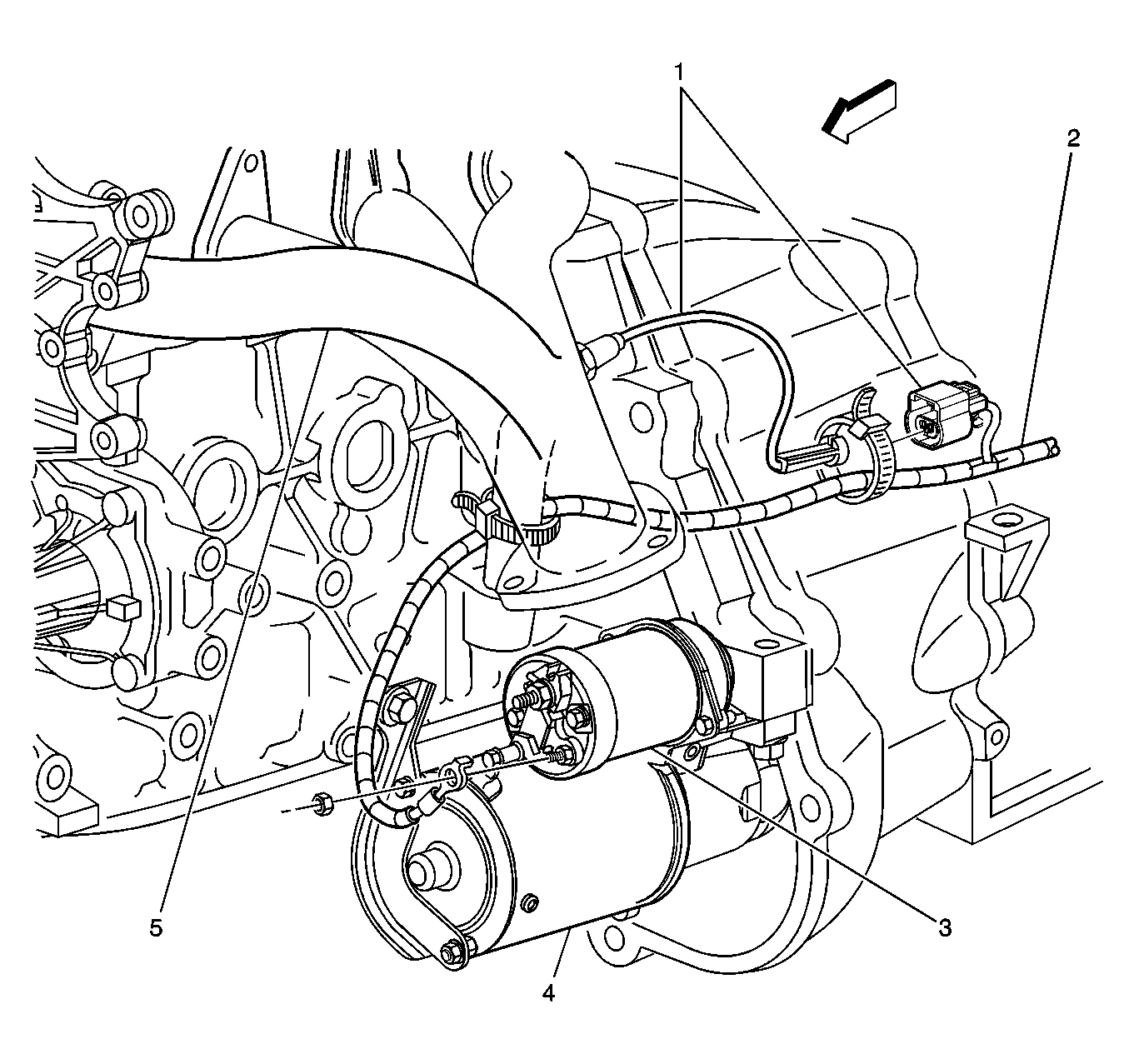

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Oxygen Sensor (O2S), Bank 1 Sensor 1 and Connector |
| 2 |
Engine Harness |
| 3 |
Starter Solenoid |
| 4 |
Starter |
| 5 |
Exhaust Manifold |
