Installation Procedure

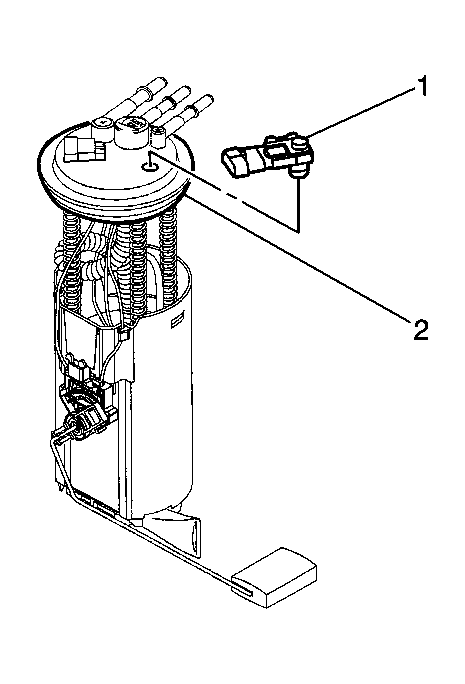

    Fig 1: View Of Fuel Tank Pressure Sensor
    GM64998Courtesy of GENERAL MOTORS CORP.
  1. Install the fuel tank pressure sensor (1) on the fuel sender assembly (2).
  2. Connect the fuel tank pressure sensor electrical connector.
  3. Install the fuel tank. Refer to Fuel Tank Replacement (2-Door Utility)  or Fuel Tank Replacement (4-Door Utility) .
  4. Refill the fuel tank.
  5. Install the fuel filler cap.
  6. Connect the negative battery cable.
  7. Inspect for leaks.
    1. Turn ON the ignition for 2 seconds.
    2. Turn OFF the ignition for 10 seconds.
    3. Turn ON the ignition.
    4. Inspect for fuel leaks.
