Installation Procedure

Install the new MAP sensor grommet on the MAP sensor.

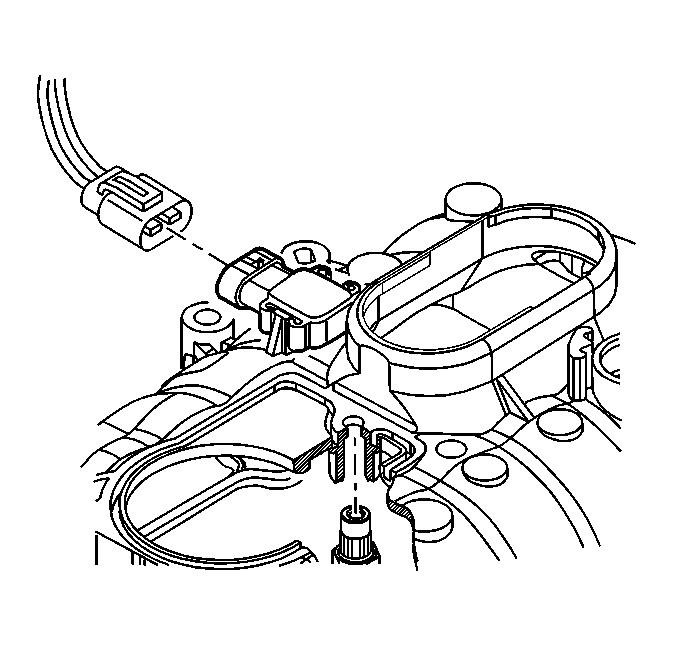

Fig 1: View Of MAP Sensor

Courtesy of GENERAL MOTORS CORP.

Install the MAP sensor.

Fig 2: View Of MAP Sensor Harness Connector

Courtesy of GENERAL MOTORS CORP.

Connect the MAP sensor harness connector.
